Home >> Toyota >> 2003 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications

System Specifications

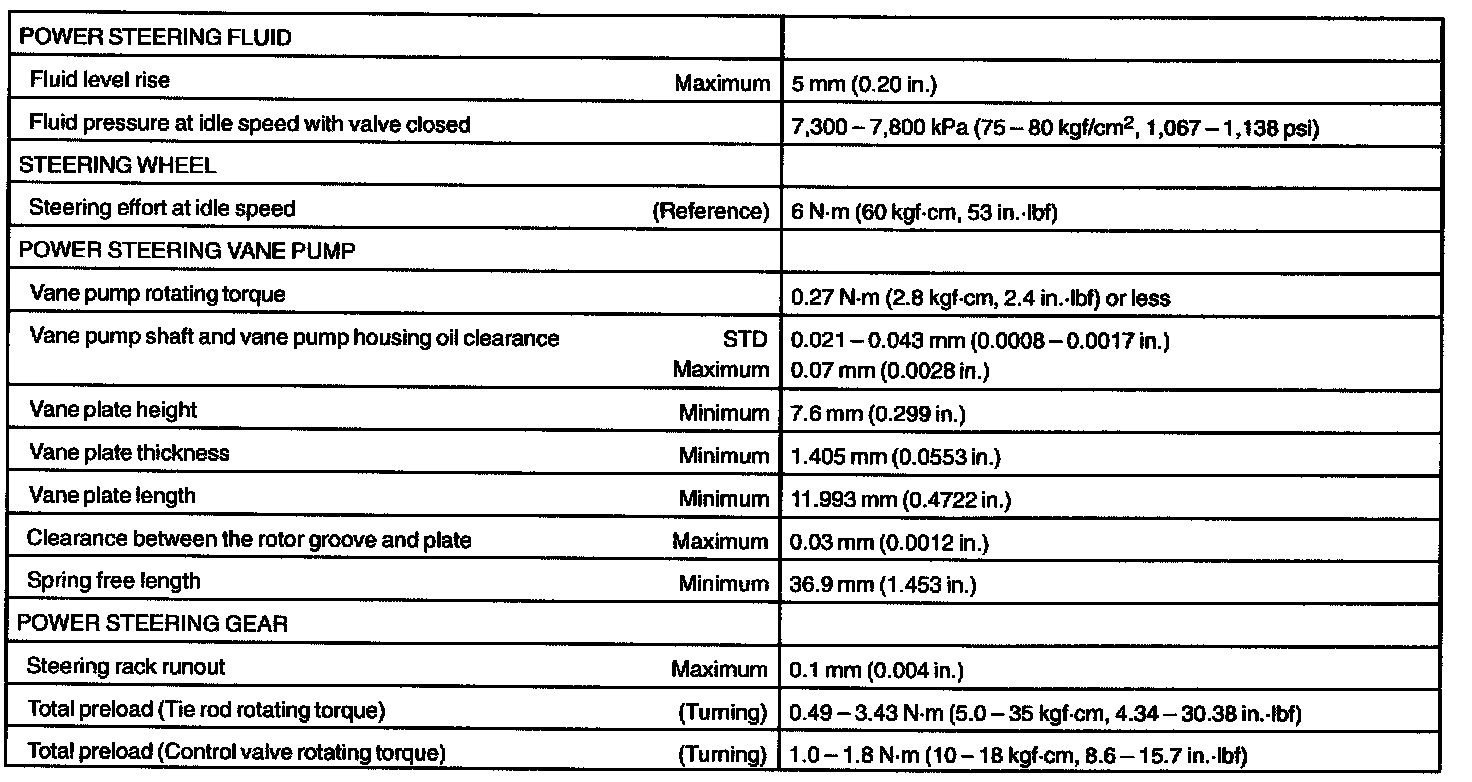

Power Steering - Service Data:

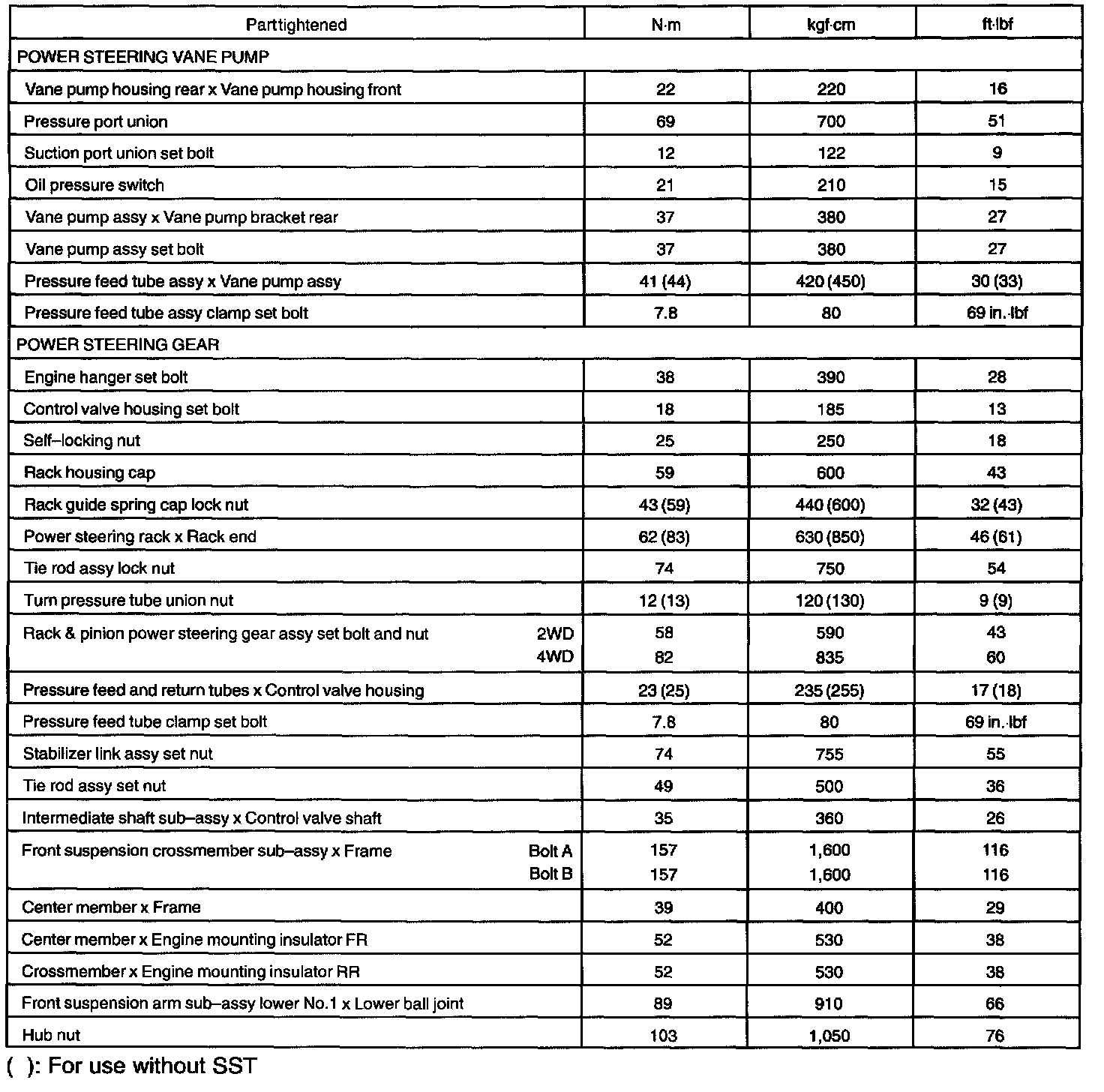

Power Steering - Torque Specification:
