Home >> Toyota >> 2003 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

STEERING COLUMN ASSY OVERHAUL W/ RELATED COMPONENTS

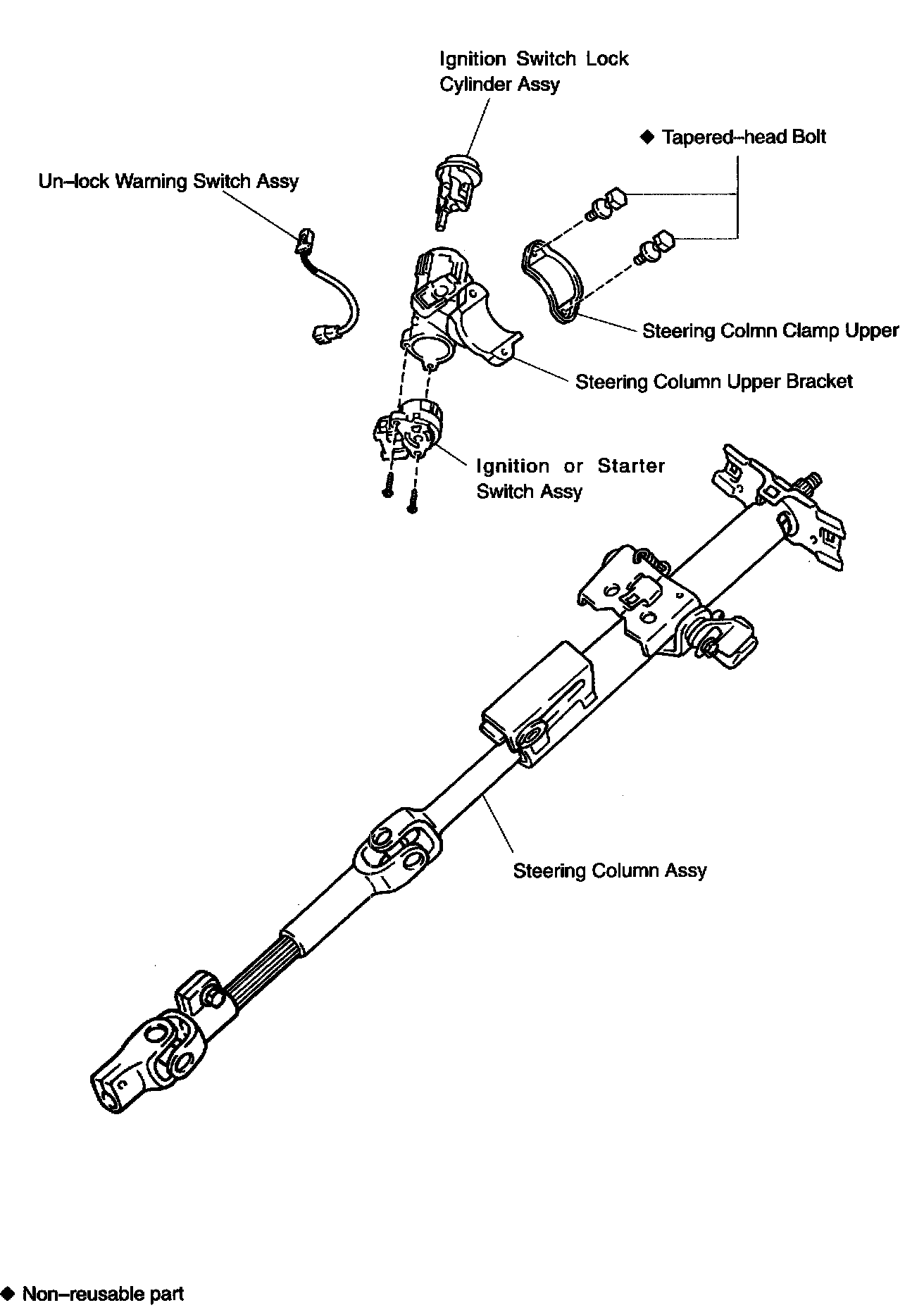

Part 1 of 2

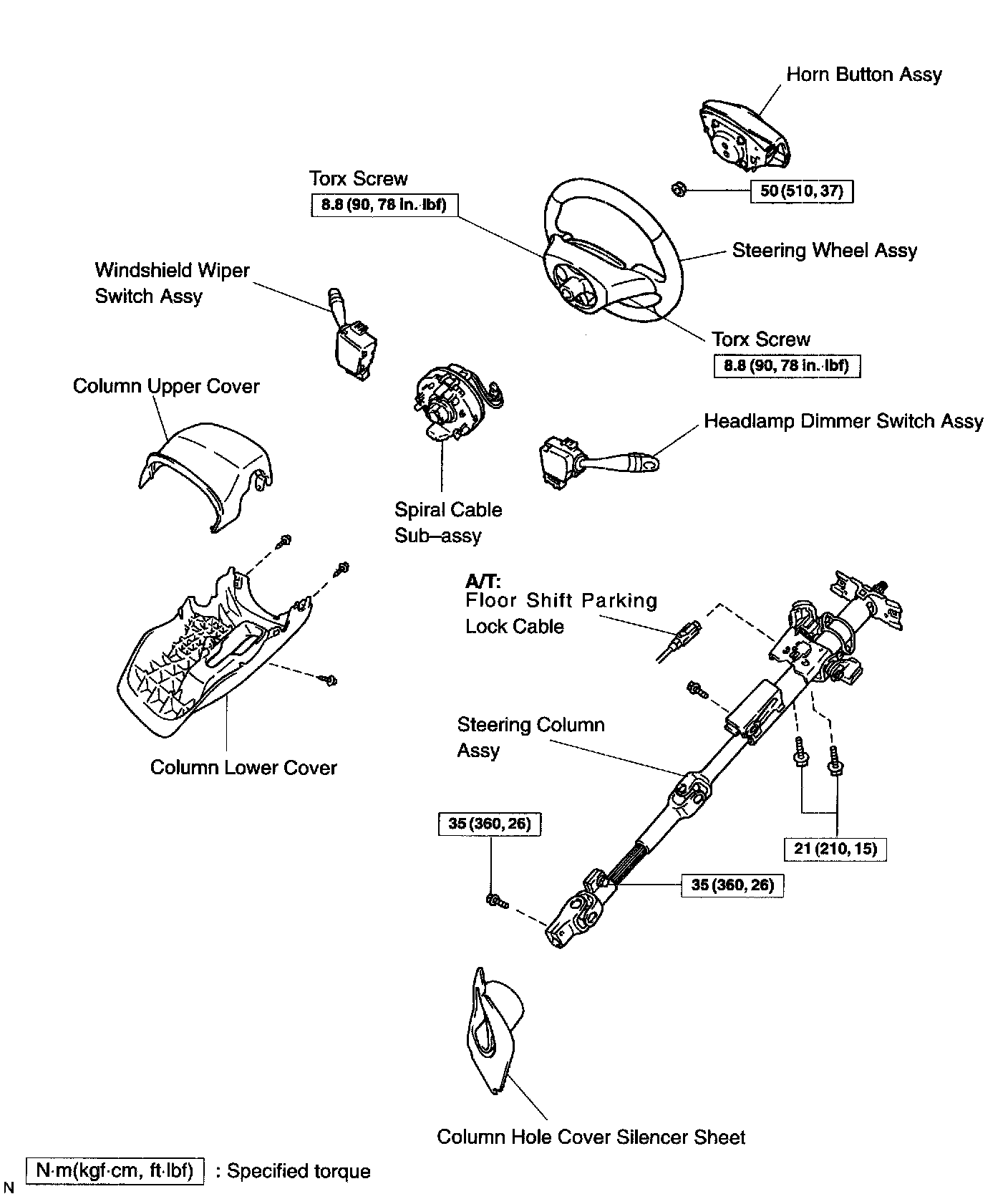

Part 2 of 2
