Home >> Toyota >> 2003 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Return Line

Fuel Return Line

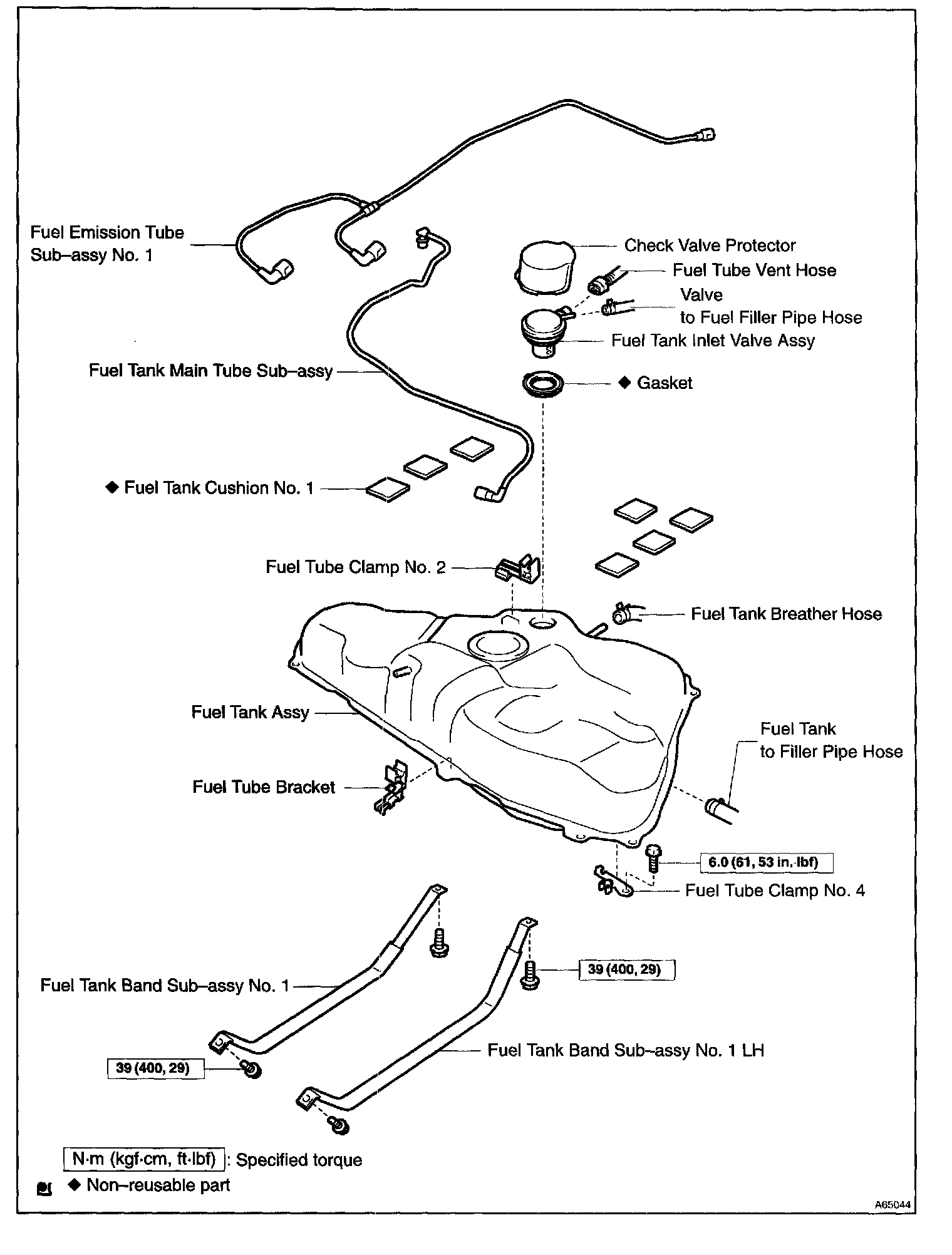

Fuel Tank Assy (FF) Part 2:



Fuel Tank Assy (FF) Part 3:
