Power Door Lock Control System: Location

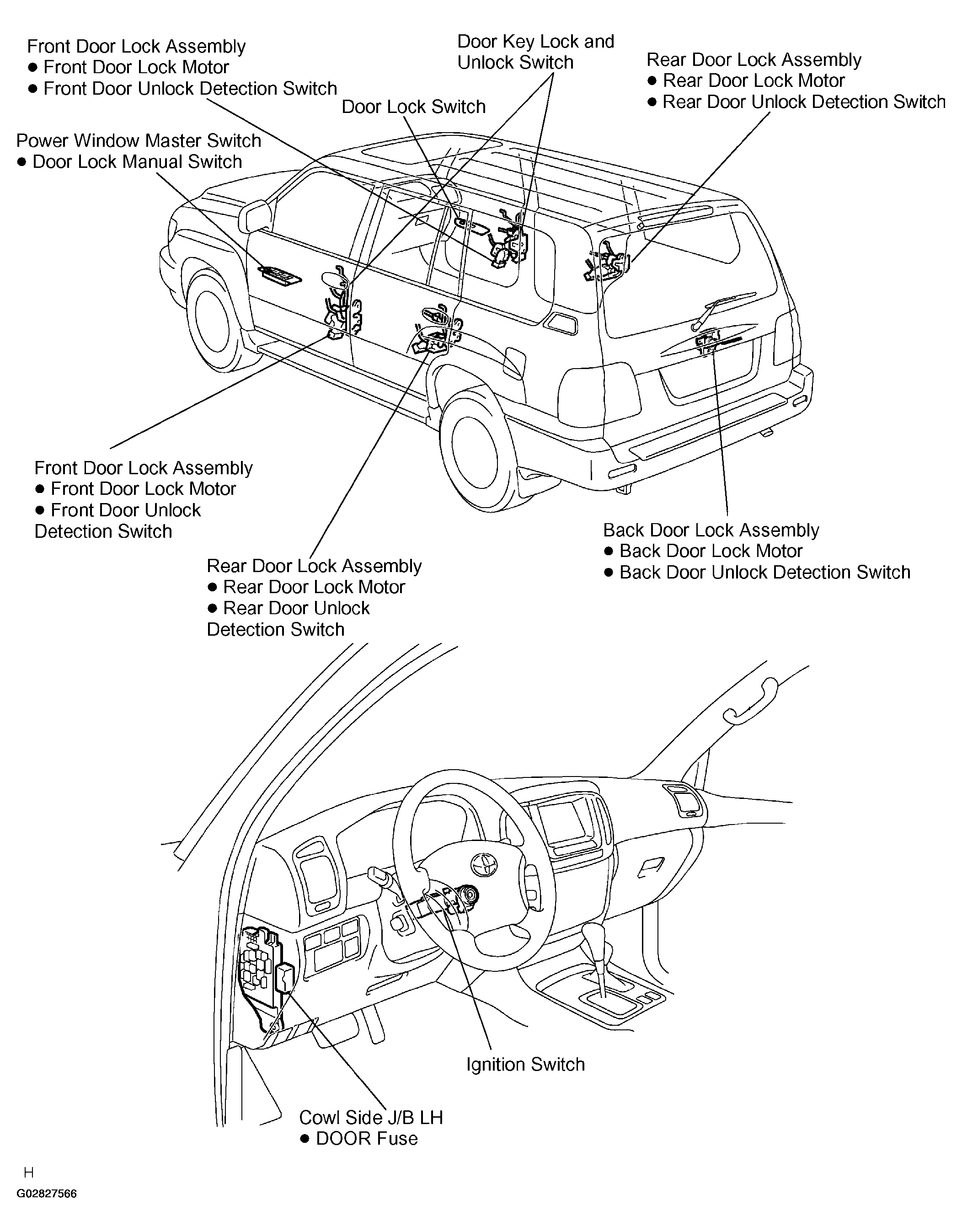

Fig 1: Identifying Power Door Lock Control System Components Location

G02827566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
