Automatic Transmission Shift Lock System (Column Shift): Location

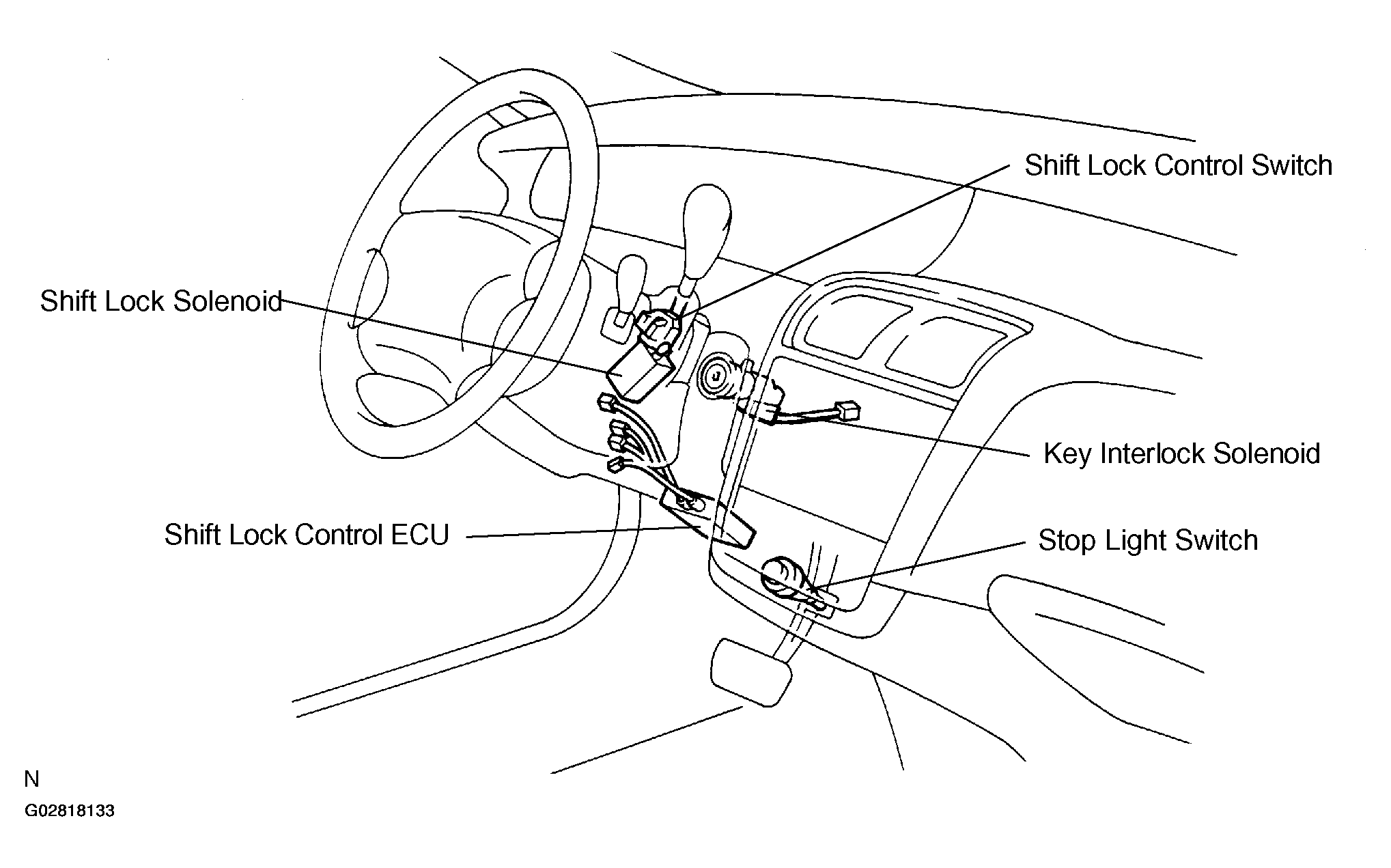

Fig 1: Identifying Component Shift Lock System Components

G02818133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
