Emission Control System: Purpose
The emission control systems are installed to reduce the amount of HC, CO and NOx exhausted from the engine, (3) and (4), to prevent the atmospheric release of blow-by gas-containing HC (1) and evaporated fuel containing HC being released from the fuel tank (2).

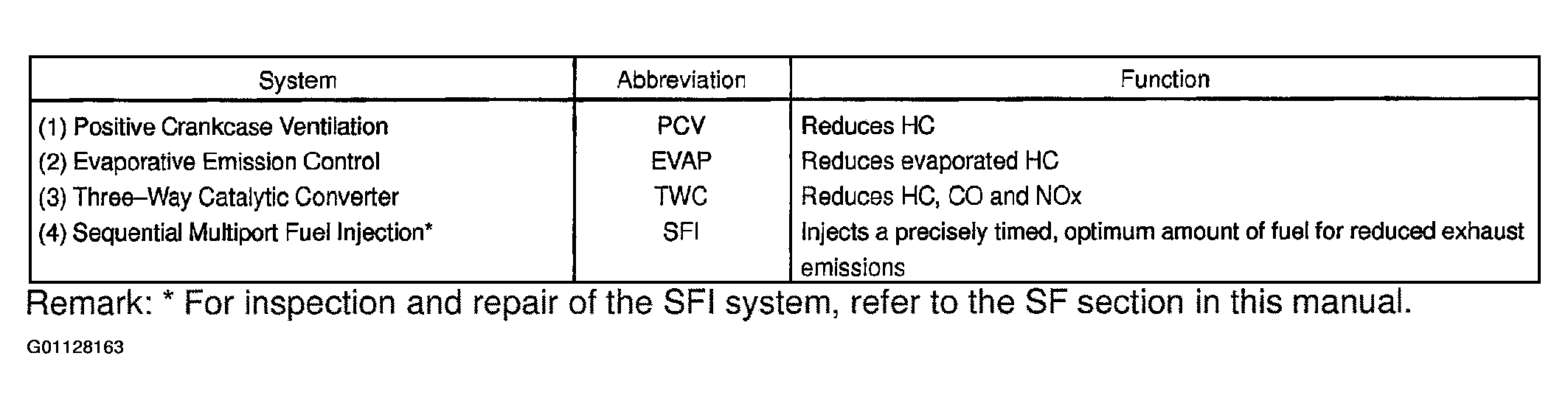

The function of each system is shown in the table: See Fig 1.
