Ignition Relay: Testing and Inspection

IGNITION RELAY (No.2)

INSPECTION

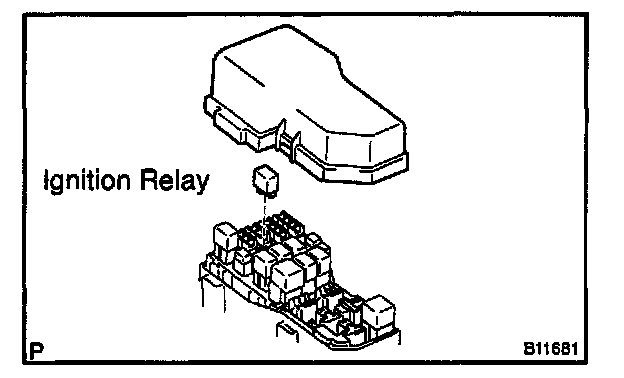

1. REMOVE IGNITION RELAY (Marking: IG2)
2. INSPECT IGNITION RELAY

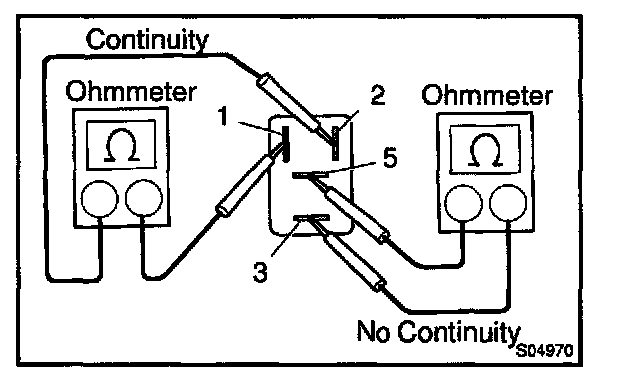

a. inspect the relay continuity.
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.

If there is no continuity, replace the relay.

2. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.

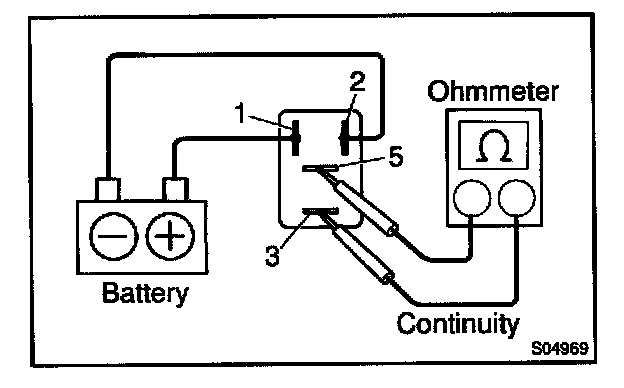

b. Inspect the relay operation.
1. Apply battery positive voltage to terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.

3. REINSTALL IGNITION RELAY
