Hybrid Transaxle Internal Components

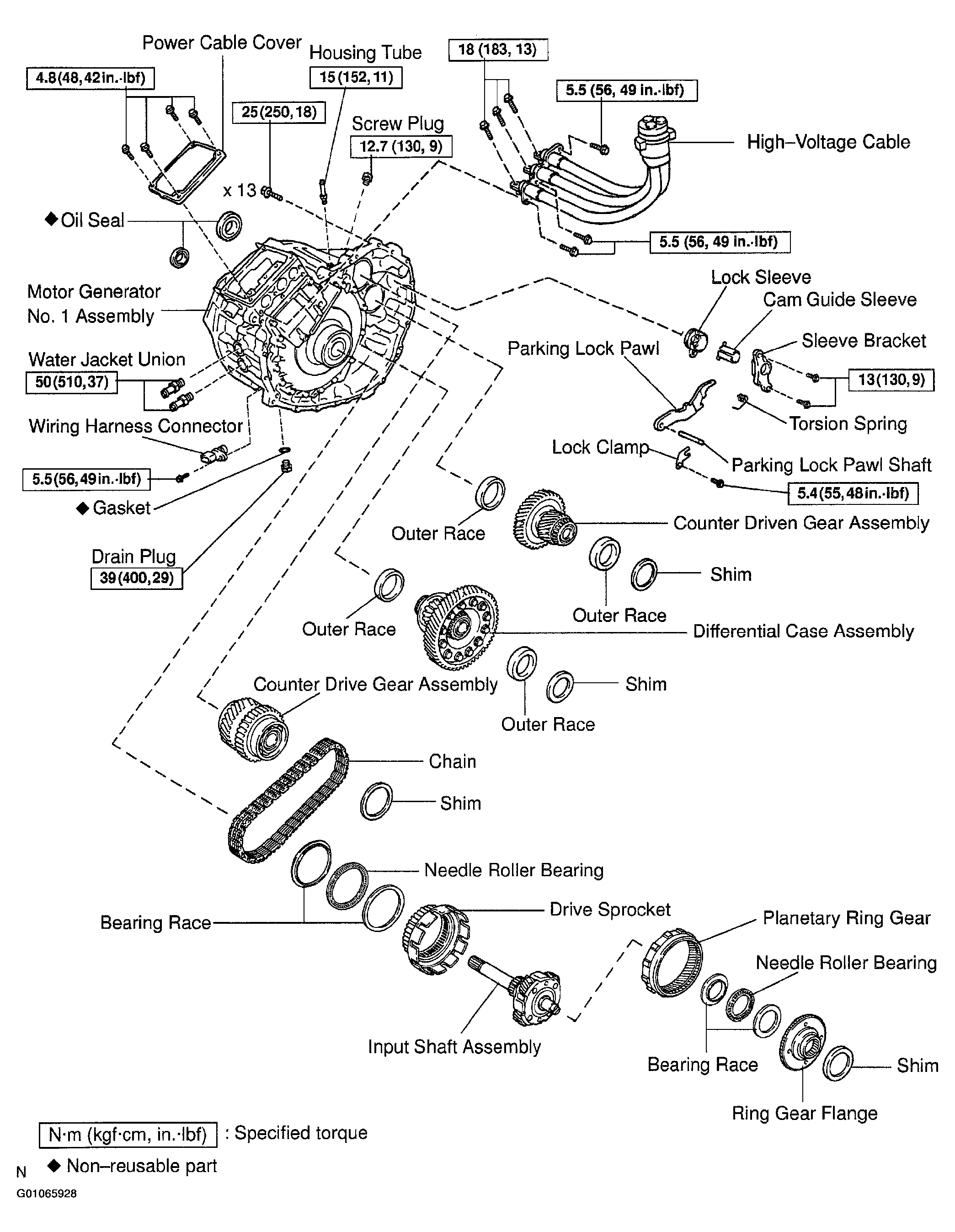

Fig 1: Identifying Hybrid Transaxle Internal Components

G01065928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
