Back Door Control Switch Circuit: Wiring Diagram

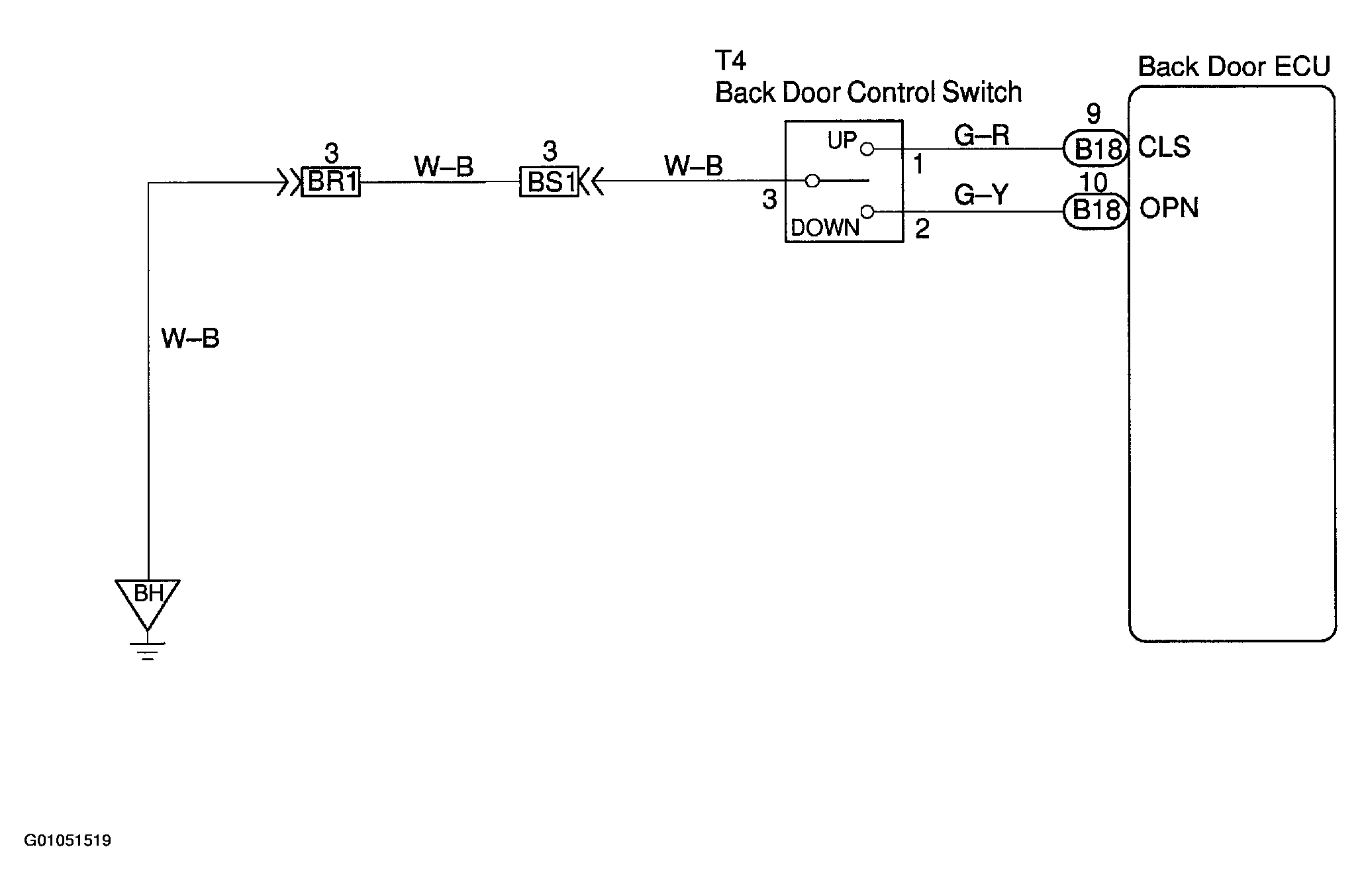

Fig 1: Back Door Control Switch Circuit Wiring Diagram

G01051519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
