Camshaft Position Sensor: Components

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

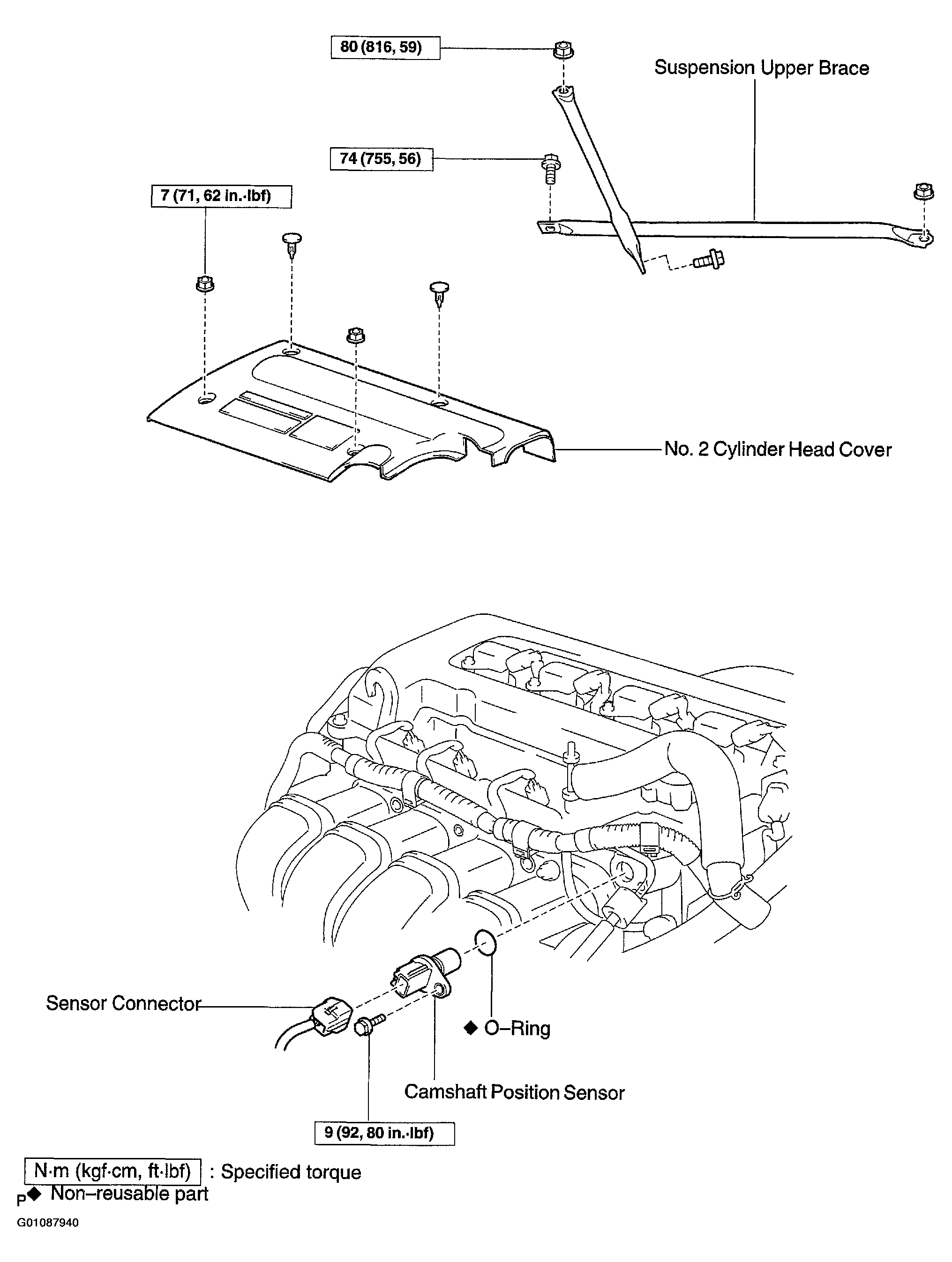

Fig 1: Locating Camshaft Position Sensor
G01087940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
