Exploded Views (With Tightening Specifications)

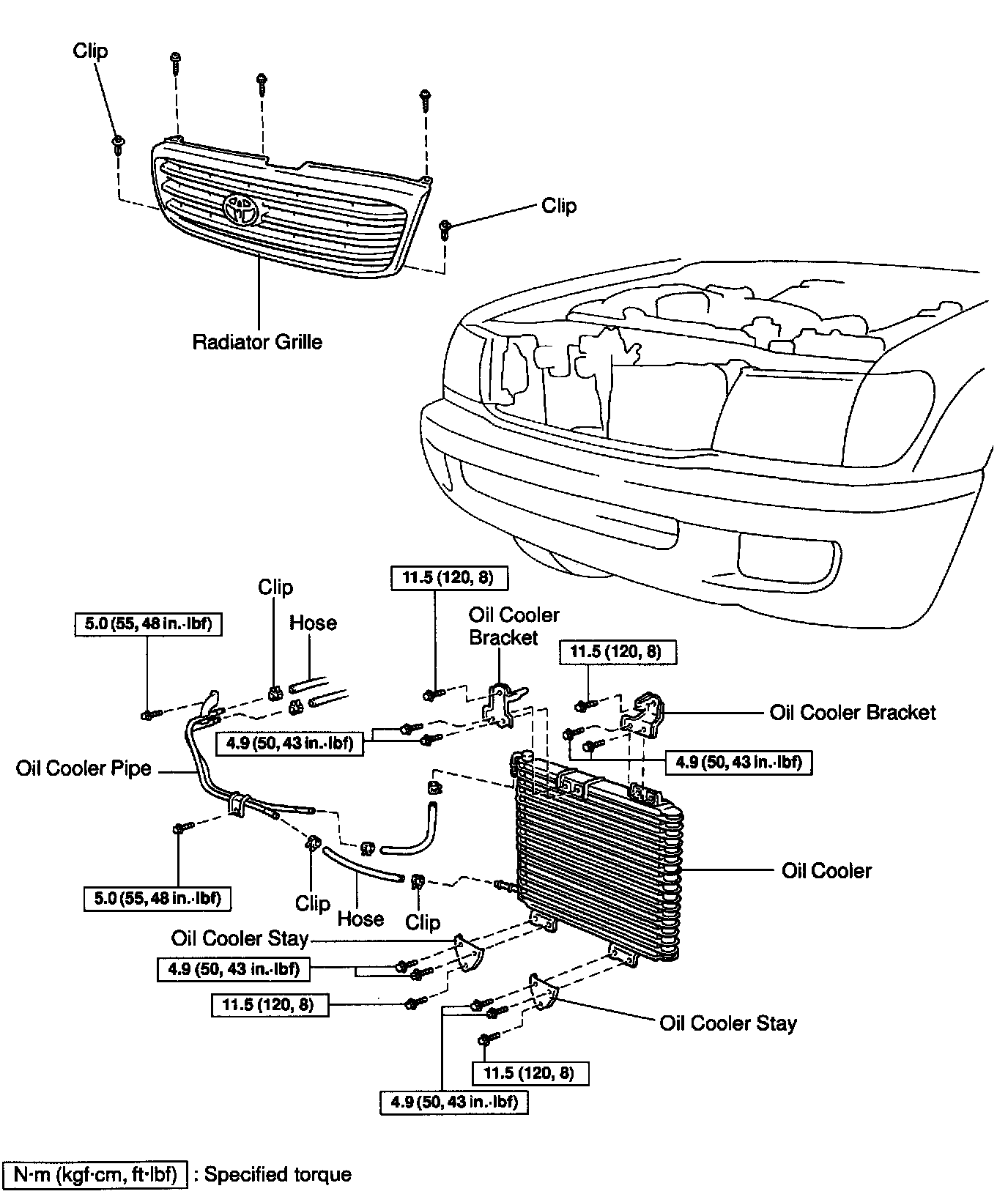

AIR COOLED OIL COOLER

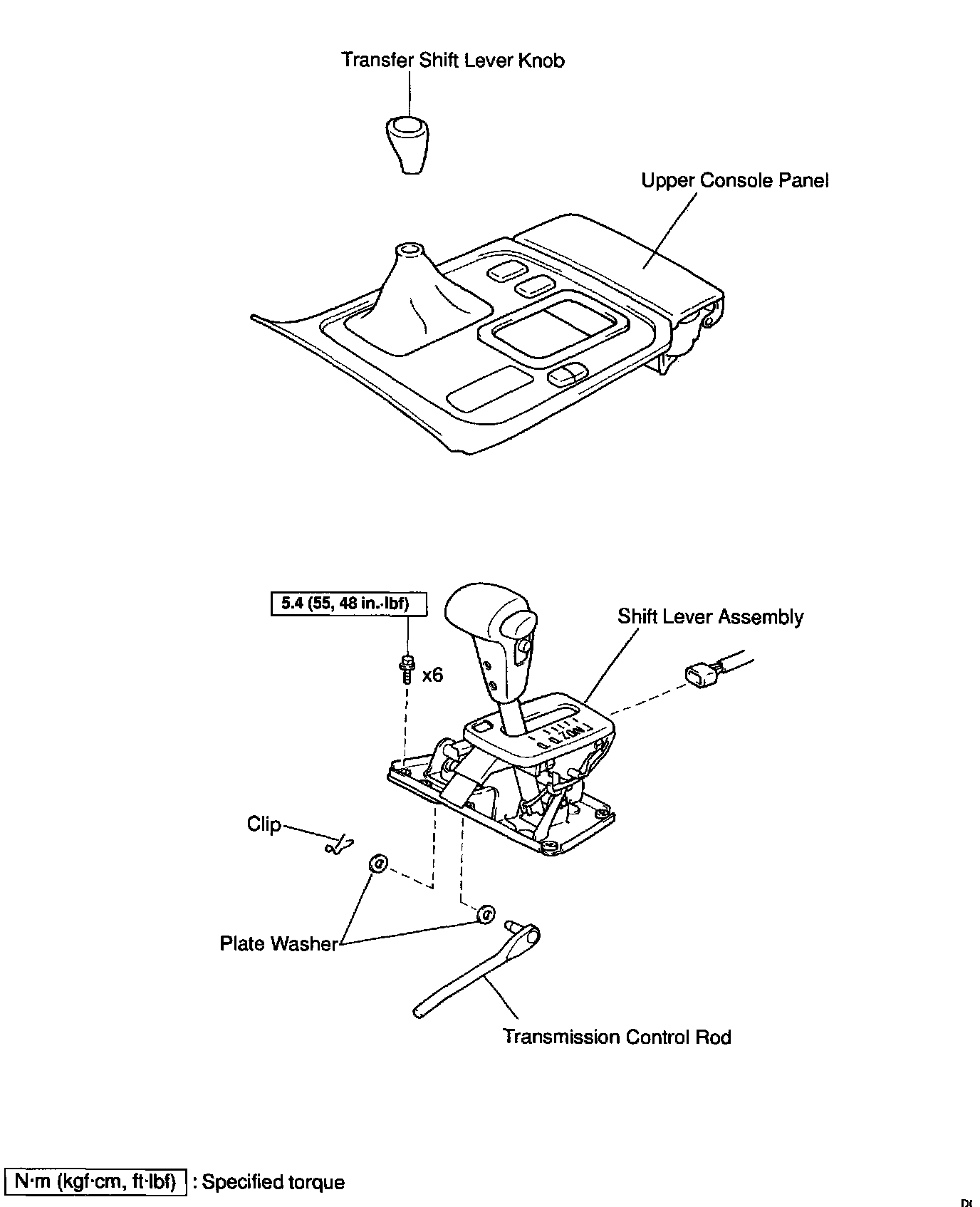

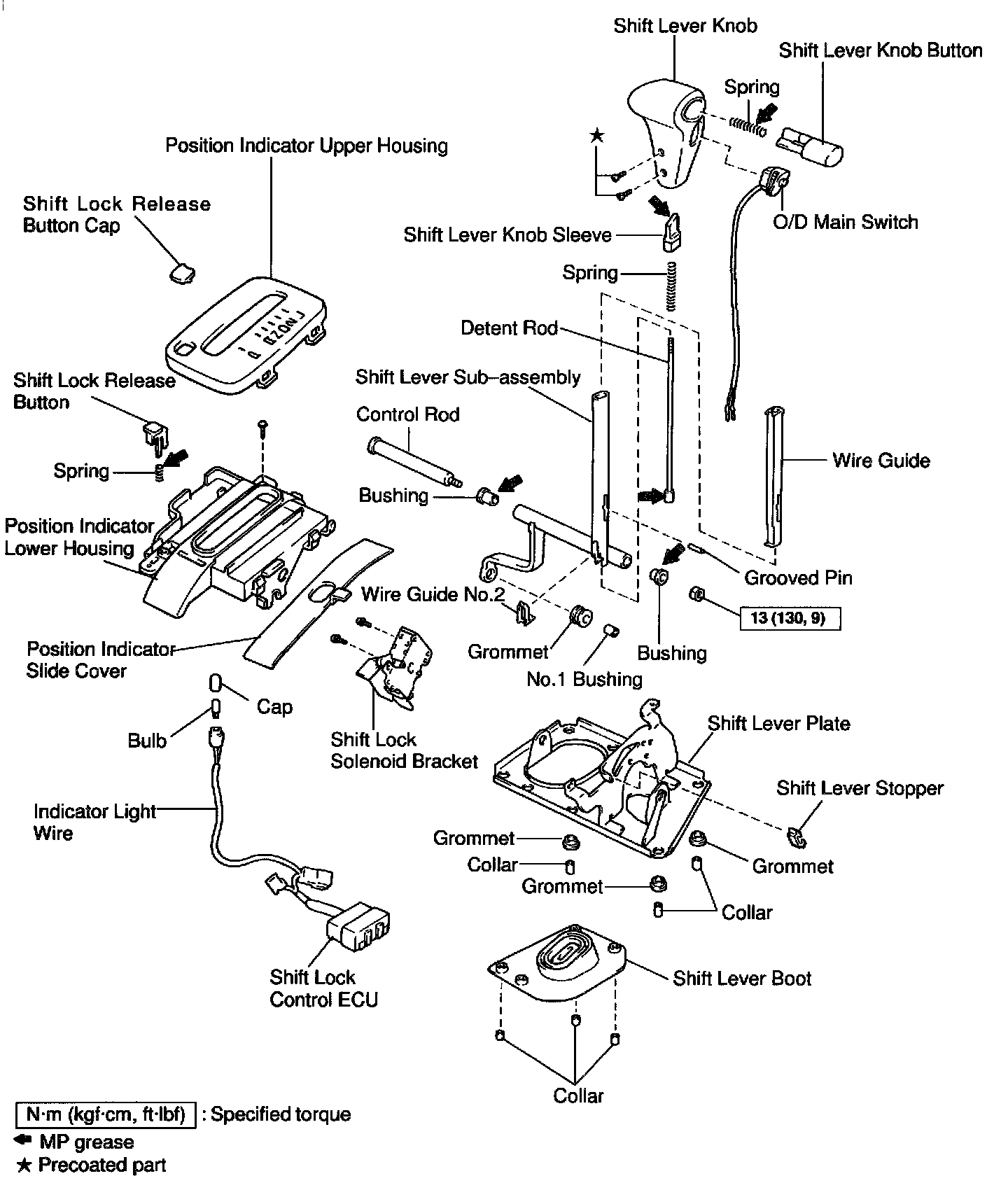

FLOOR SHIFT ASSEMBLY





Part 1 of 2





Part 2 of 2

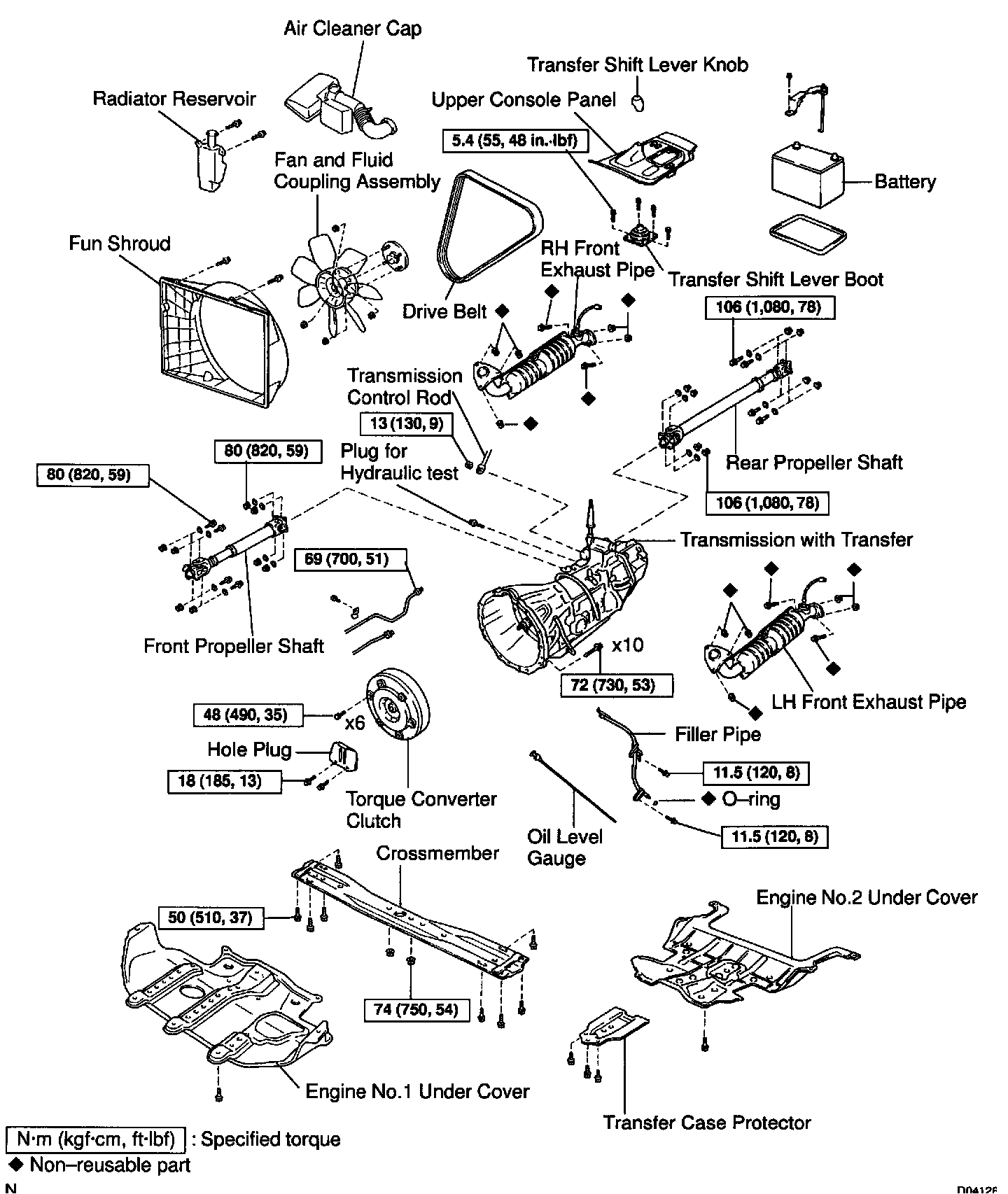

AUTOMATIC TRANSMISSION UNIT
