Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR




COMPONENTS

REMOVAL
1. REMOVE NO.2 ENGINE UNDER COVER

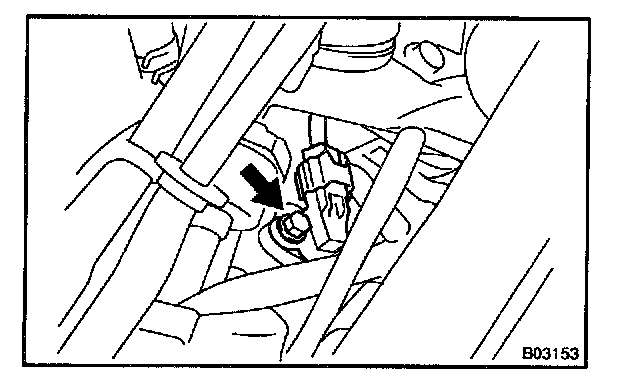

2. REMOVE CRANKSHAFT POSITION SENSOR
a. Disconnect the crankshaft position sensor connector.
b. Remove the bolt and crankshaft position sensor.

Torque: 6.5 Nm (65 kg.cm, 58 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
