LEMON Manuals
: Even more car manuals for everyone
Home
>>
Toyota
>>
2000
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

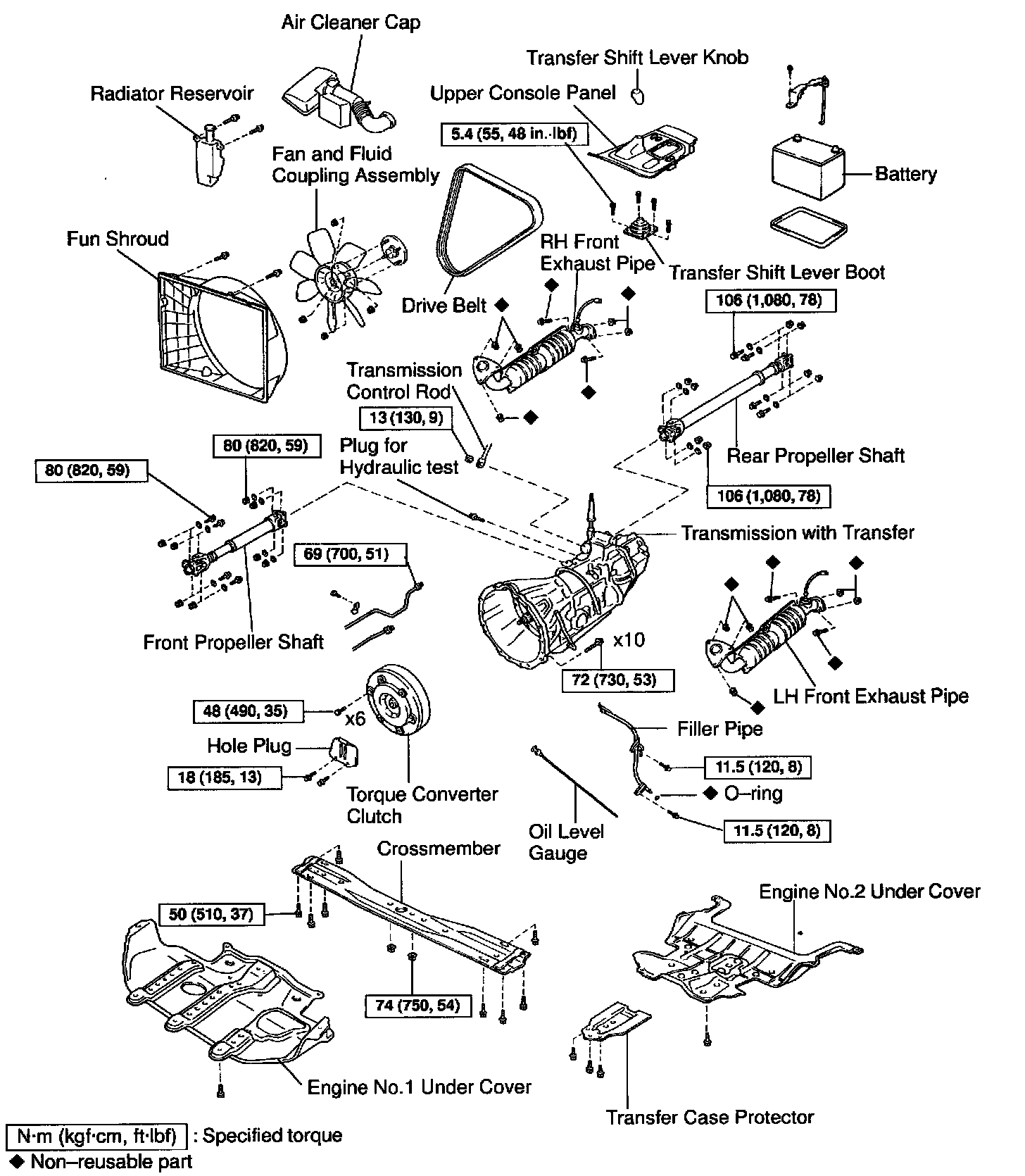

Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
