Engine Compartment

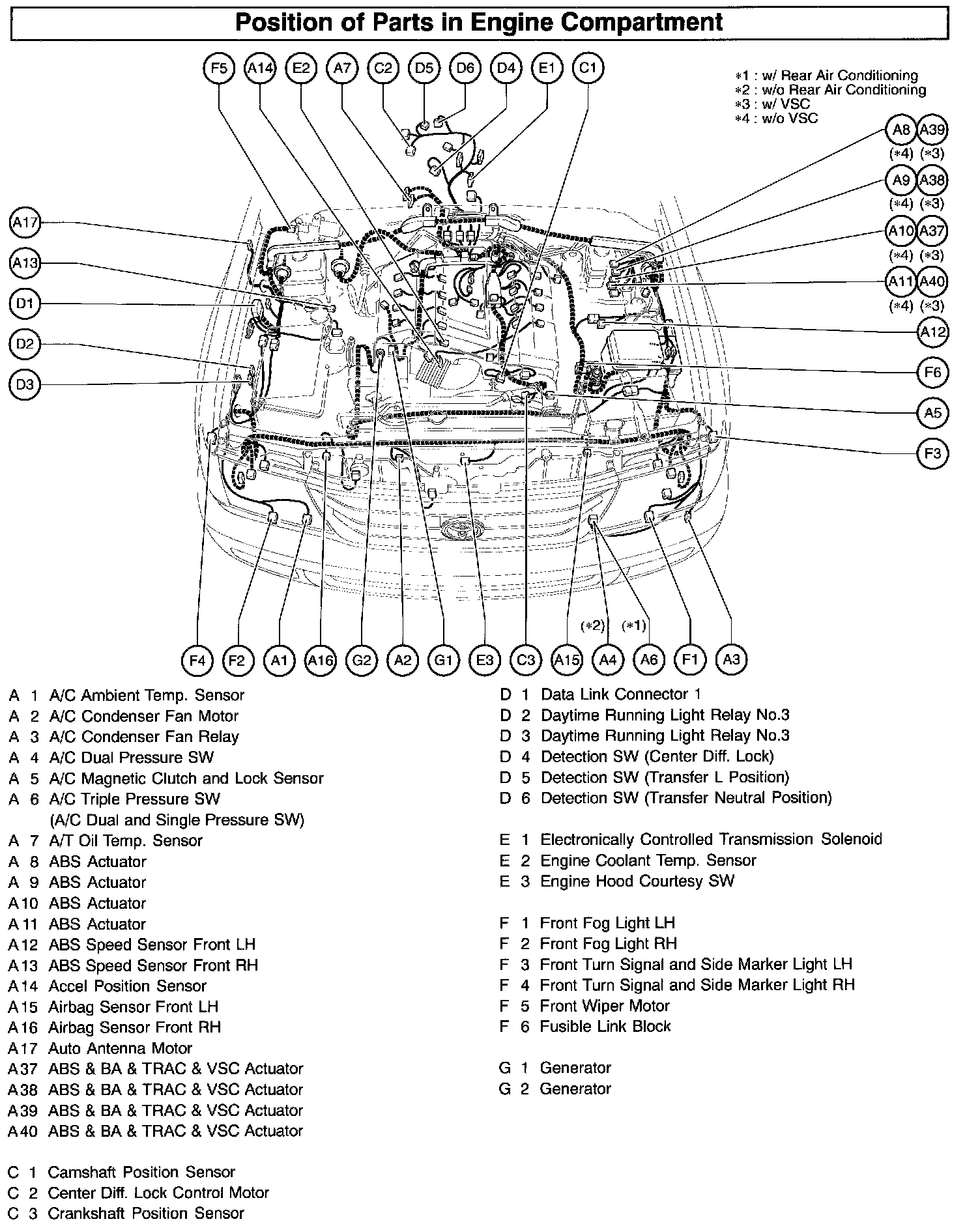

Fig 38 - Position Of Parts In Engine Compartment:

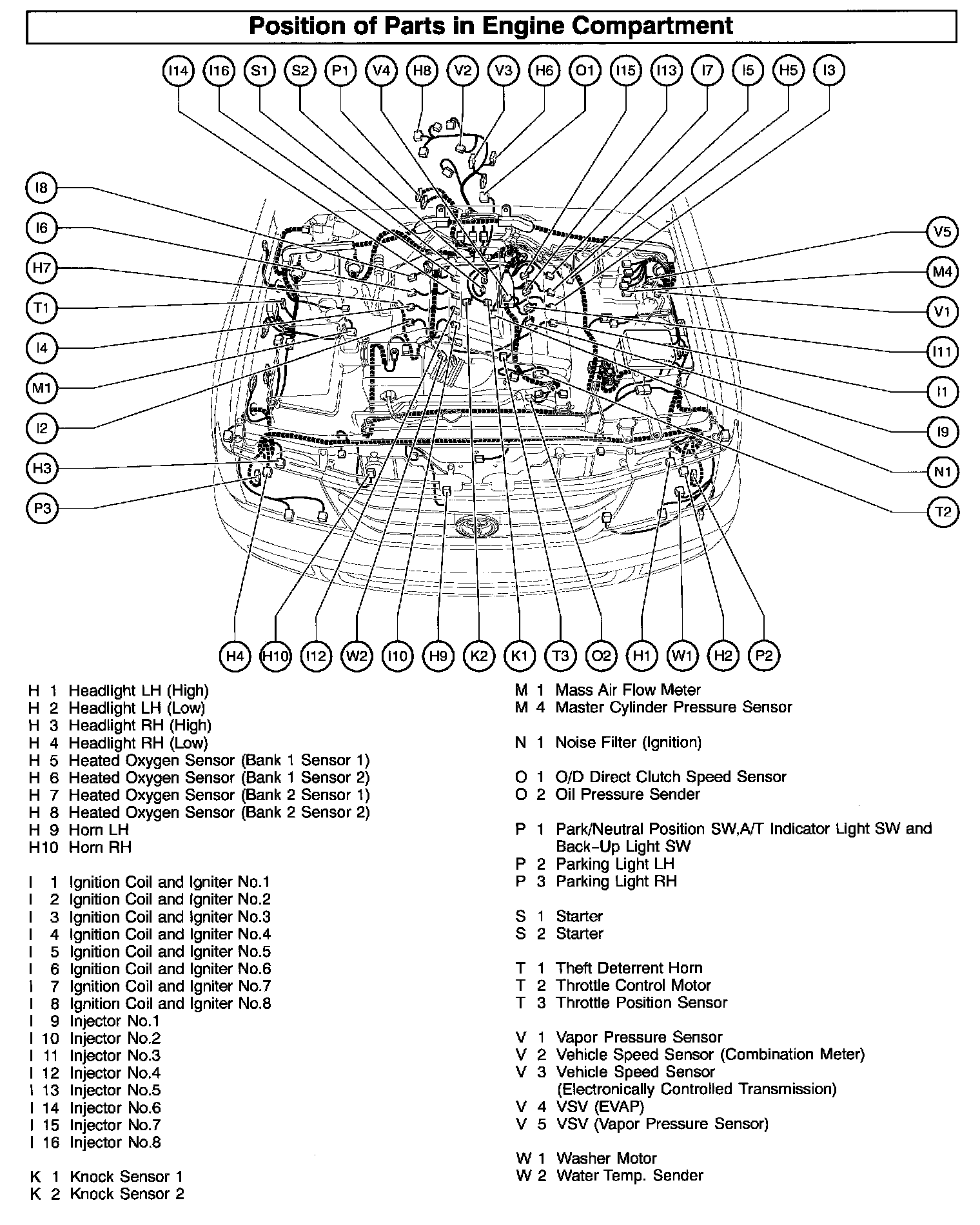

Fig 39 - Position Of Parts In Engine Compartment:
