Connector Locations




JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

Instrument Panel J/B:

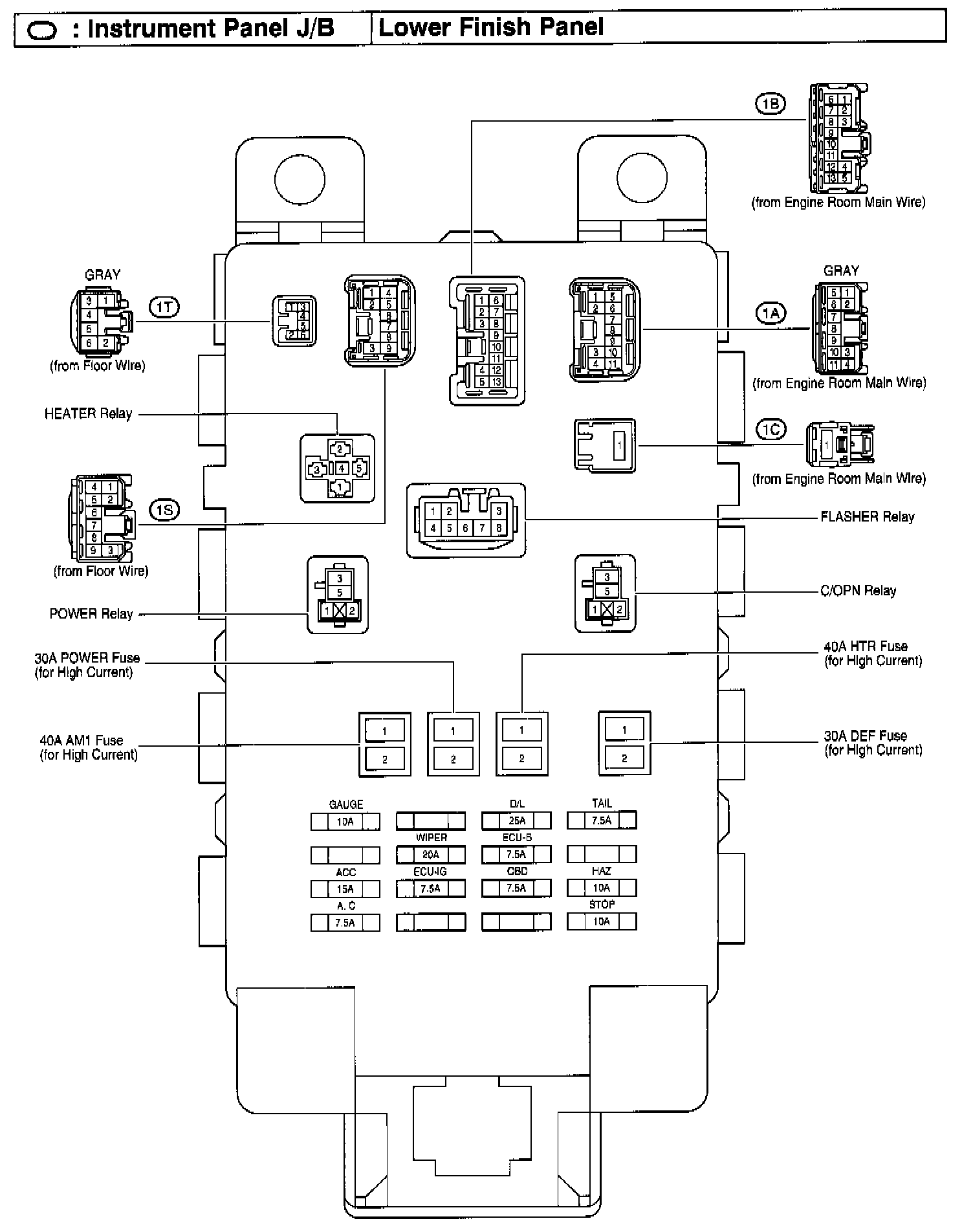

FIG 24

Instrument Panel J/B:

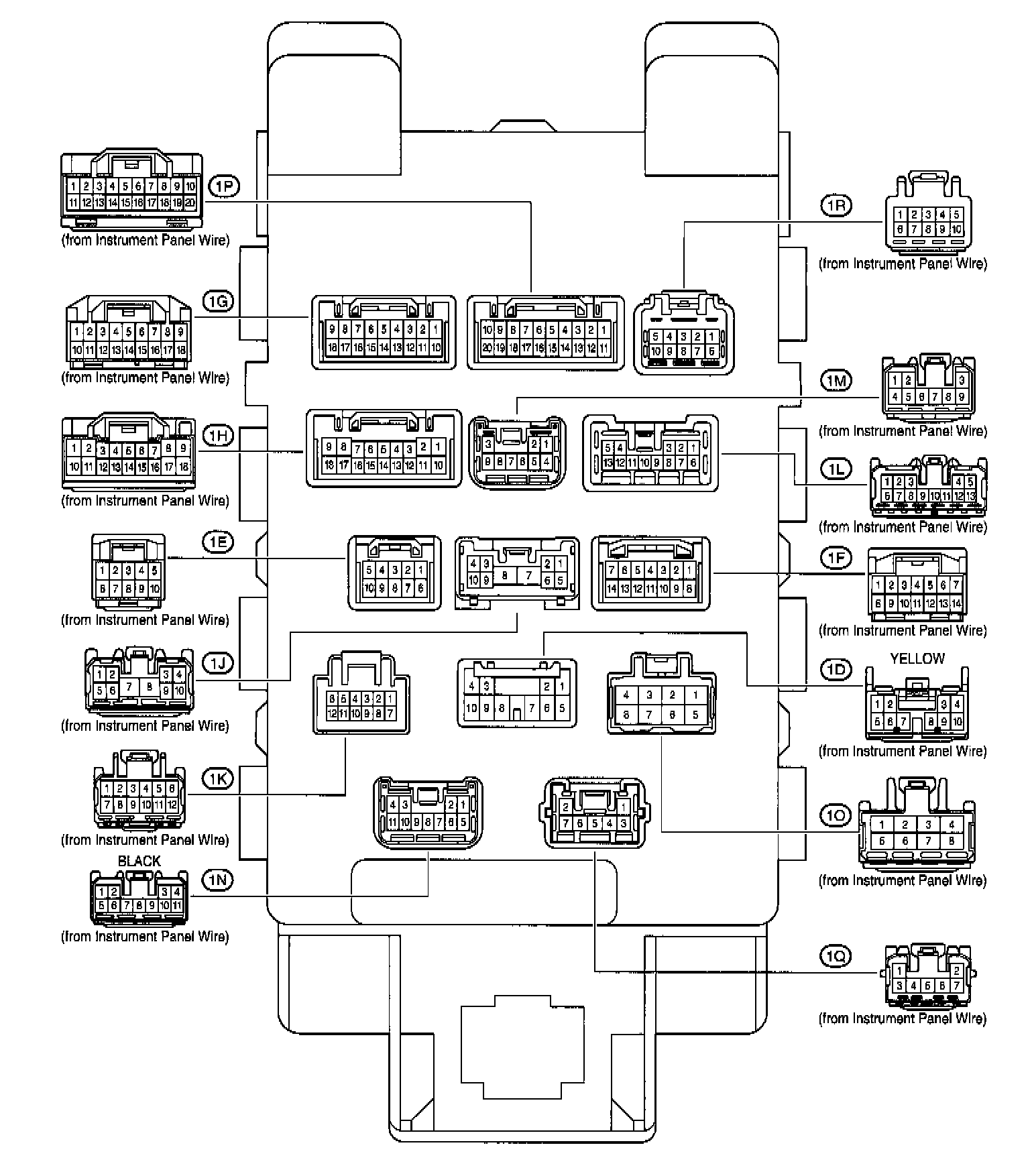

FIG 25
