Front Differential

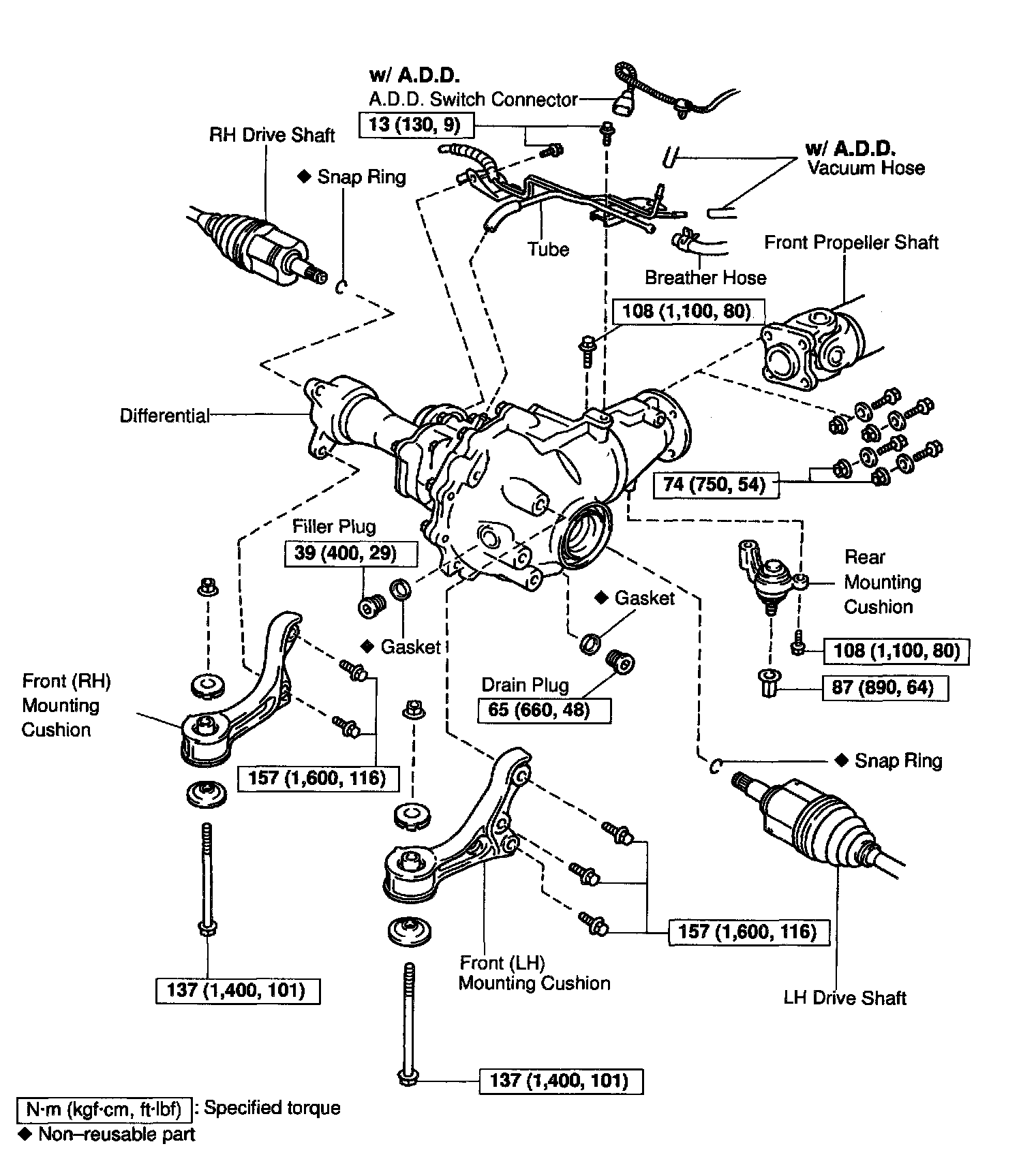

Part 1 Of 2:

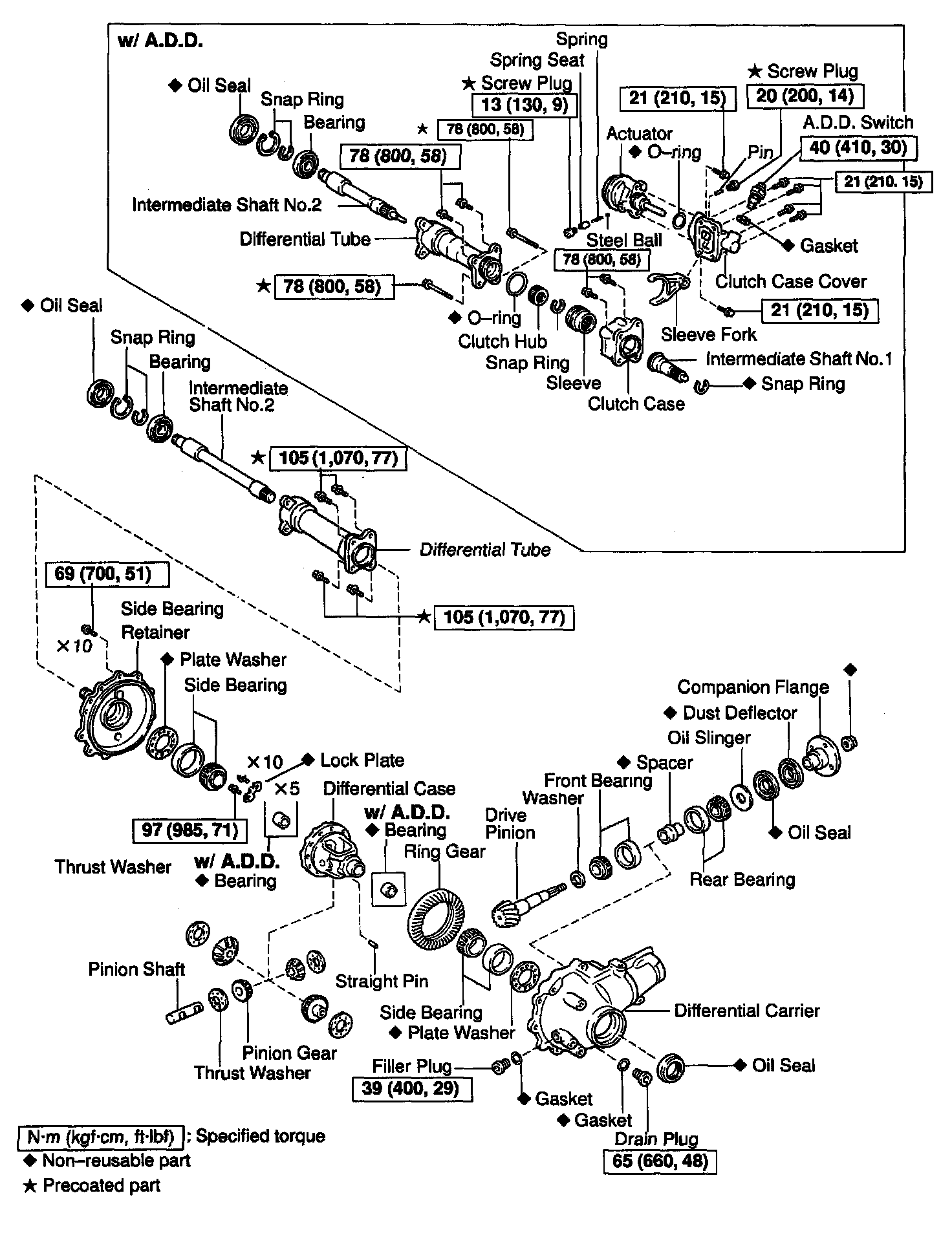

Part 2 Of 2:





FRONT DIFFERENTIAL CARRIER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
