System Diagram

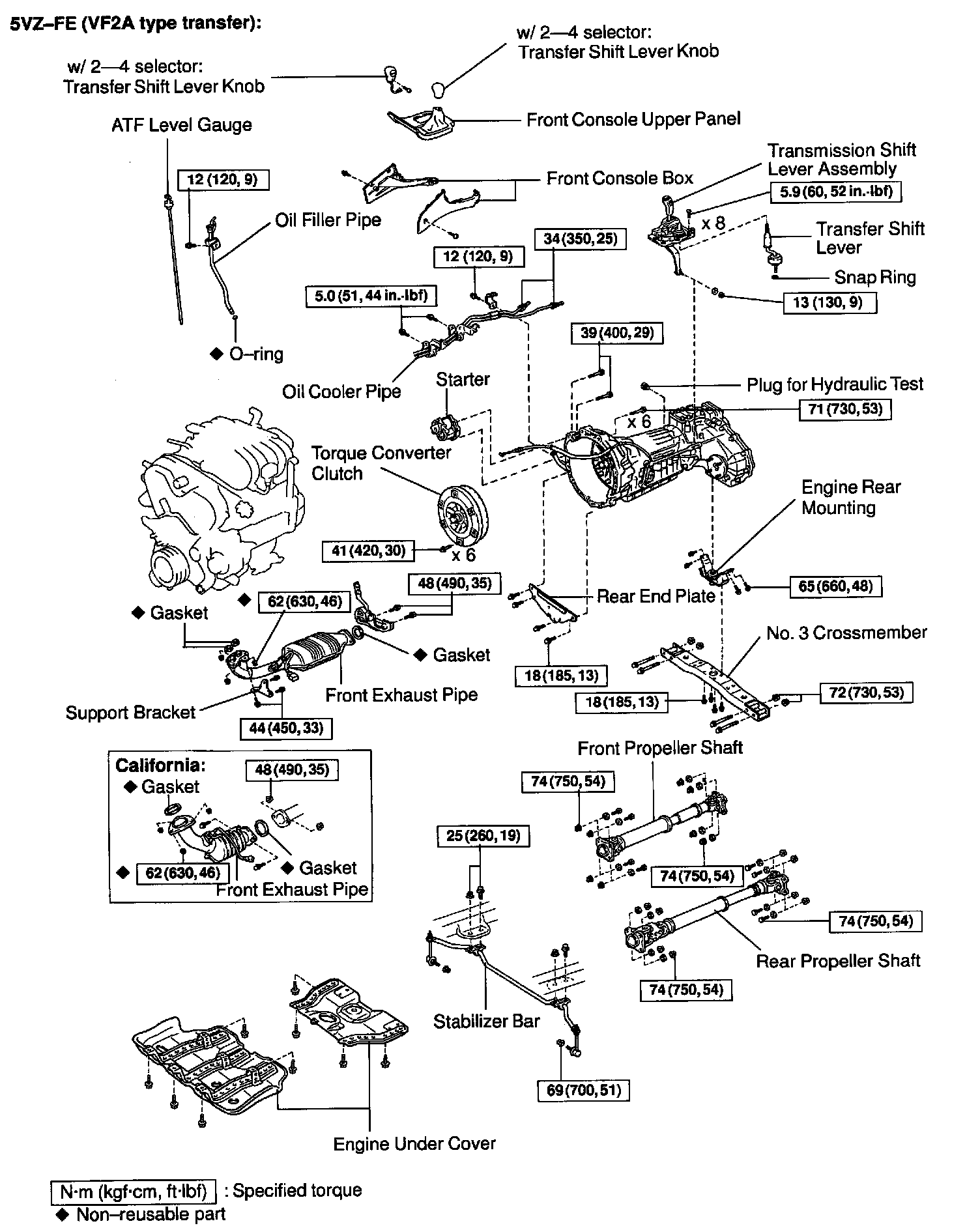

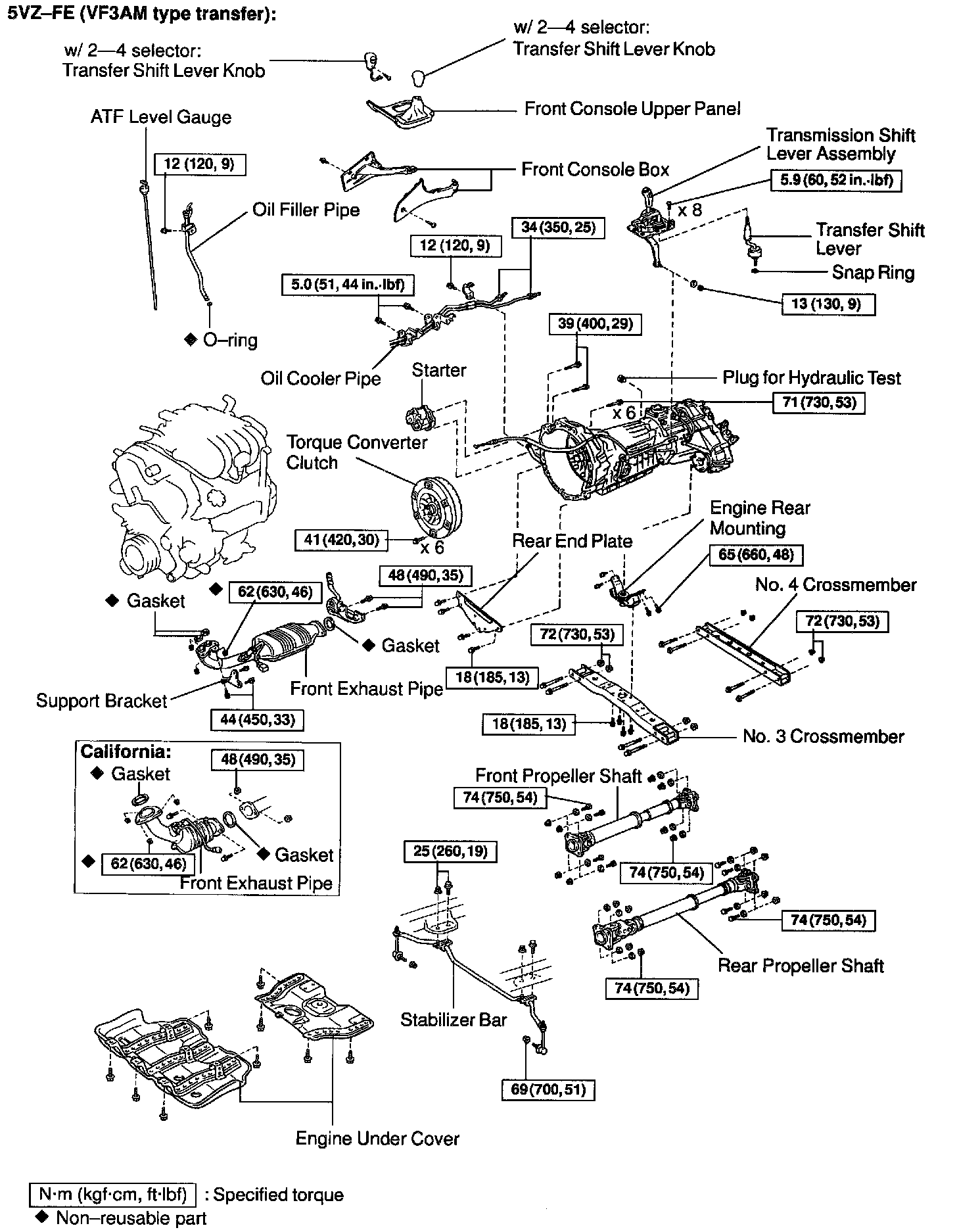

AUTOMATIC TRANSMISSION UNIT REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 3





Part 2 of 3





Part 3 of 3
