Home >> Toyota >> 2000 >> 4 Runner 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

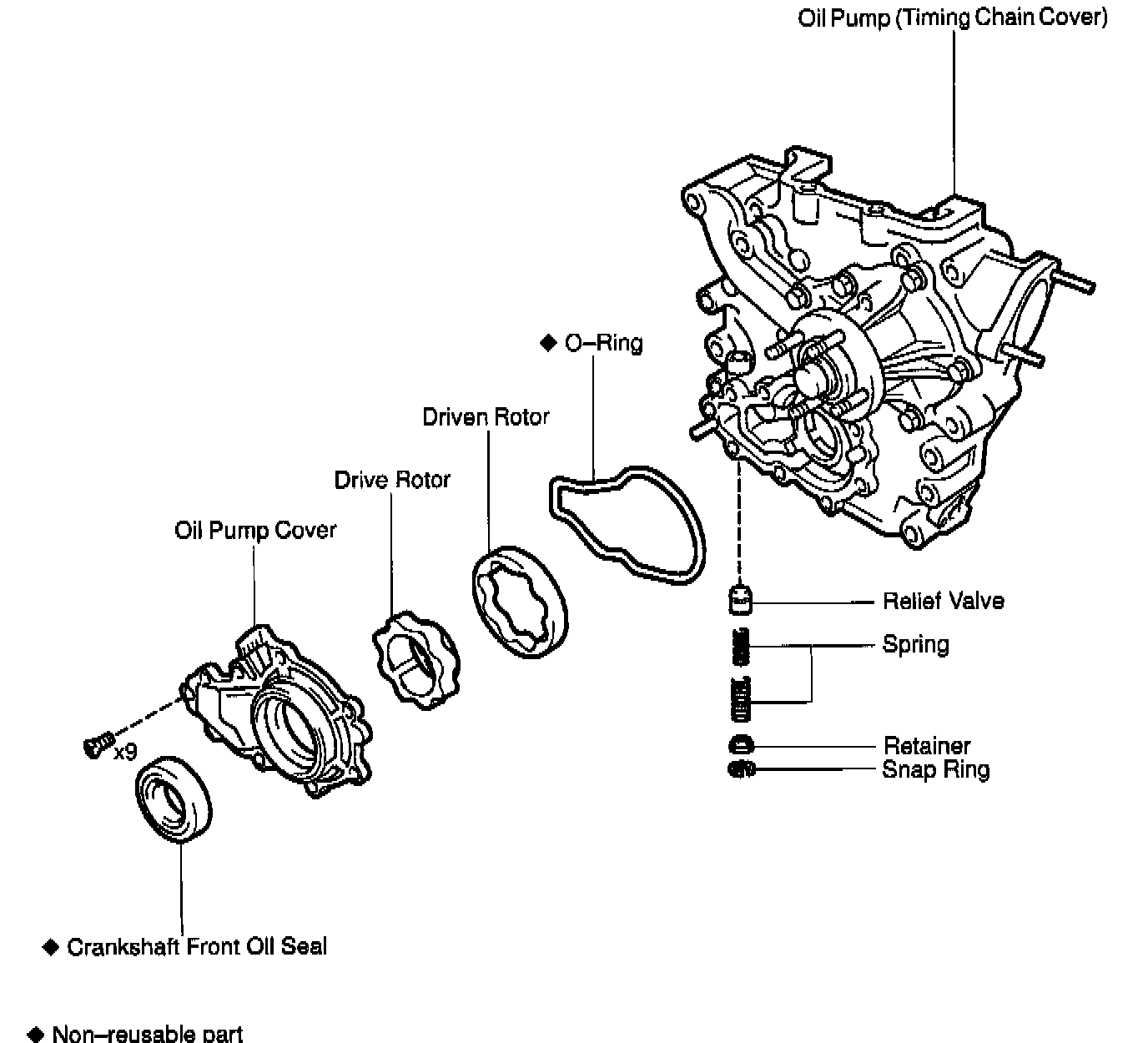

Oil Pump, Engine

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

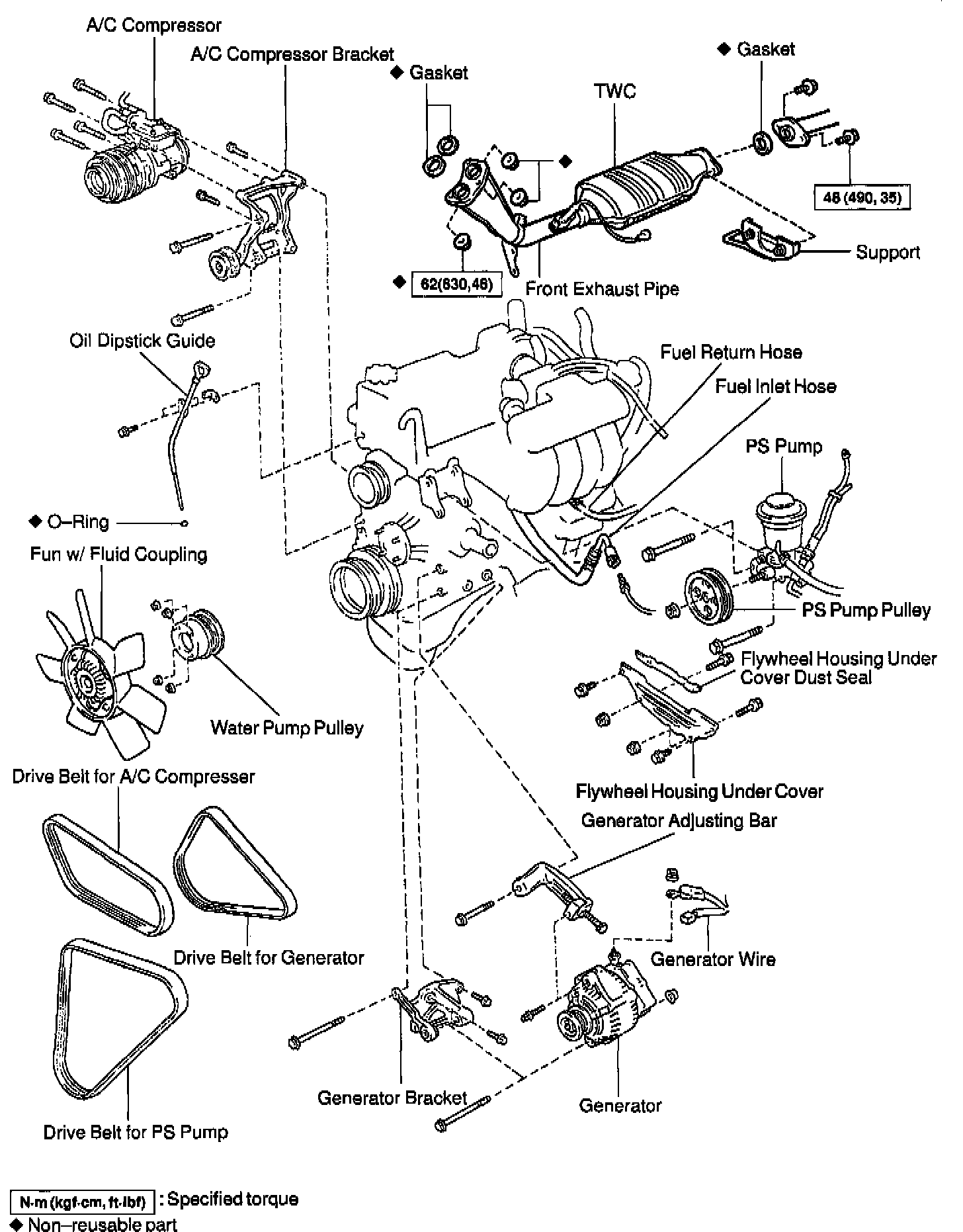

Part 1 of 4

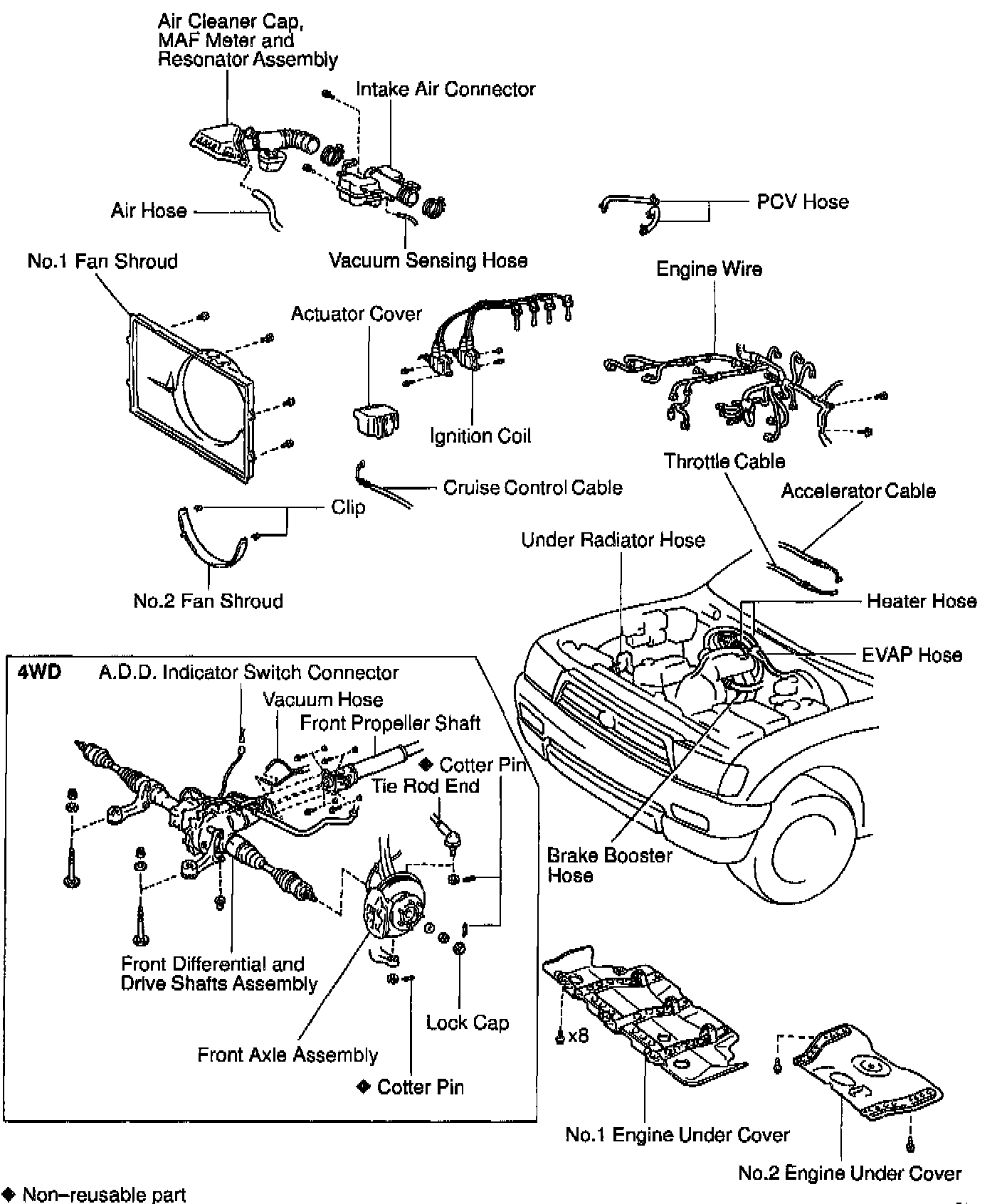

Part 2 of 4

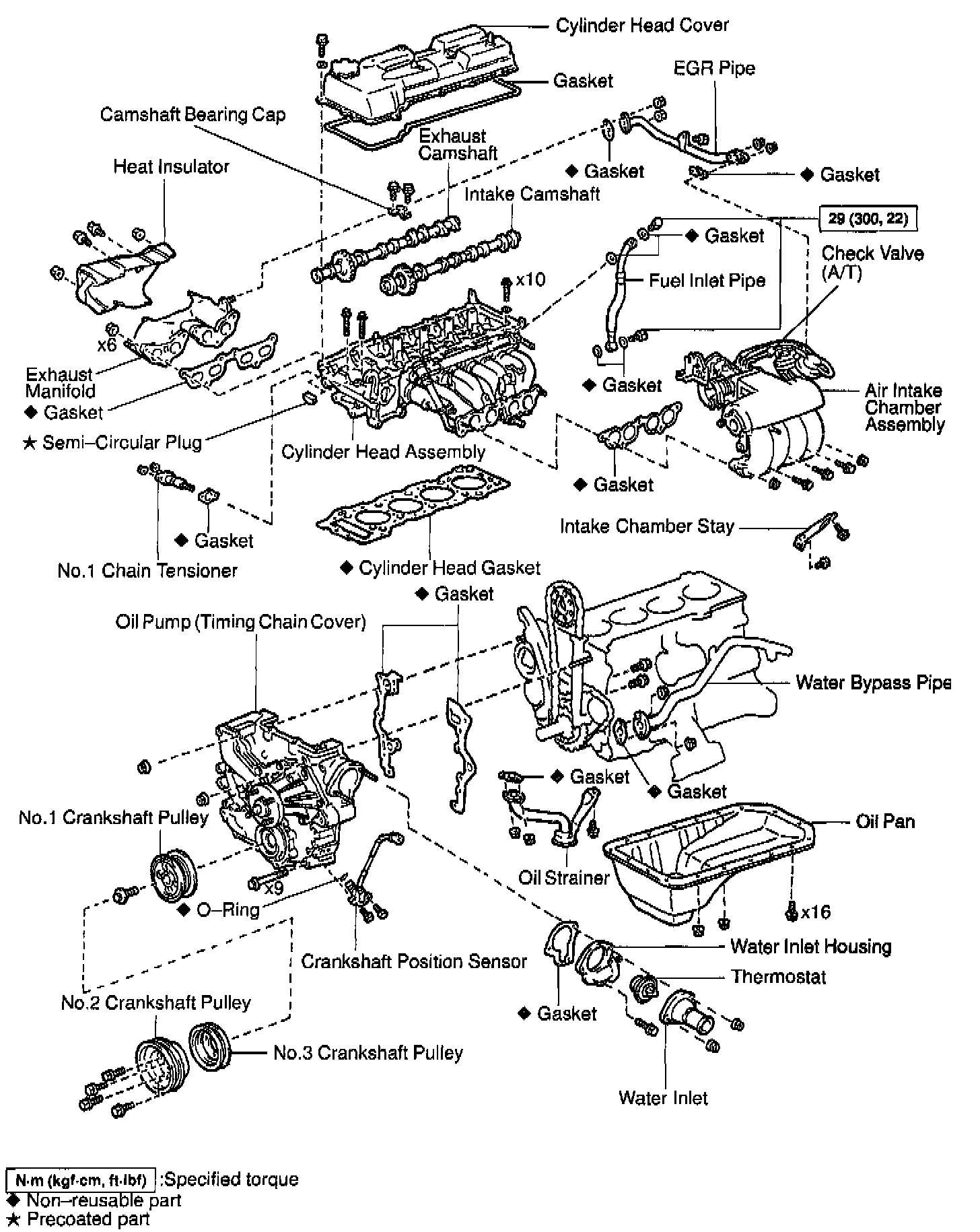

Part 3 of 4





Part 4 of 4
