Jacking & Hoisting: Notes

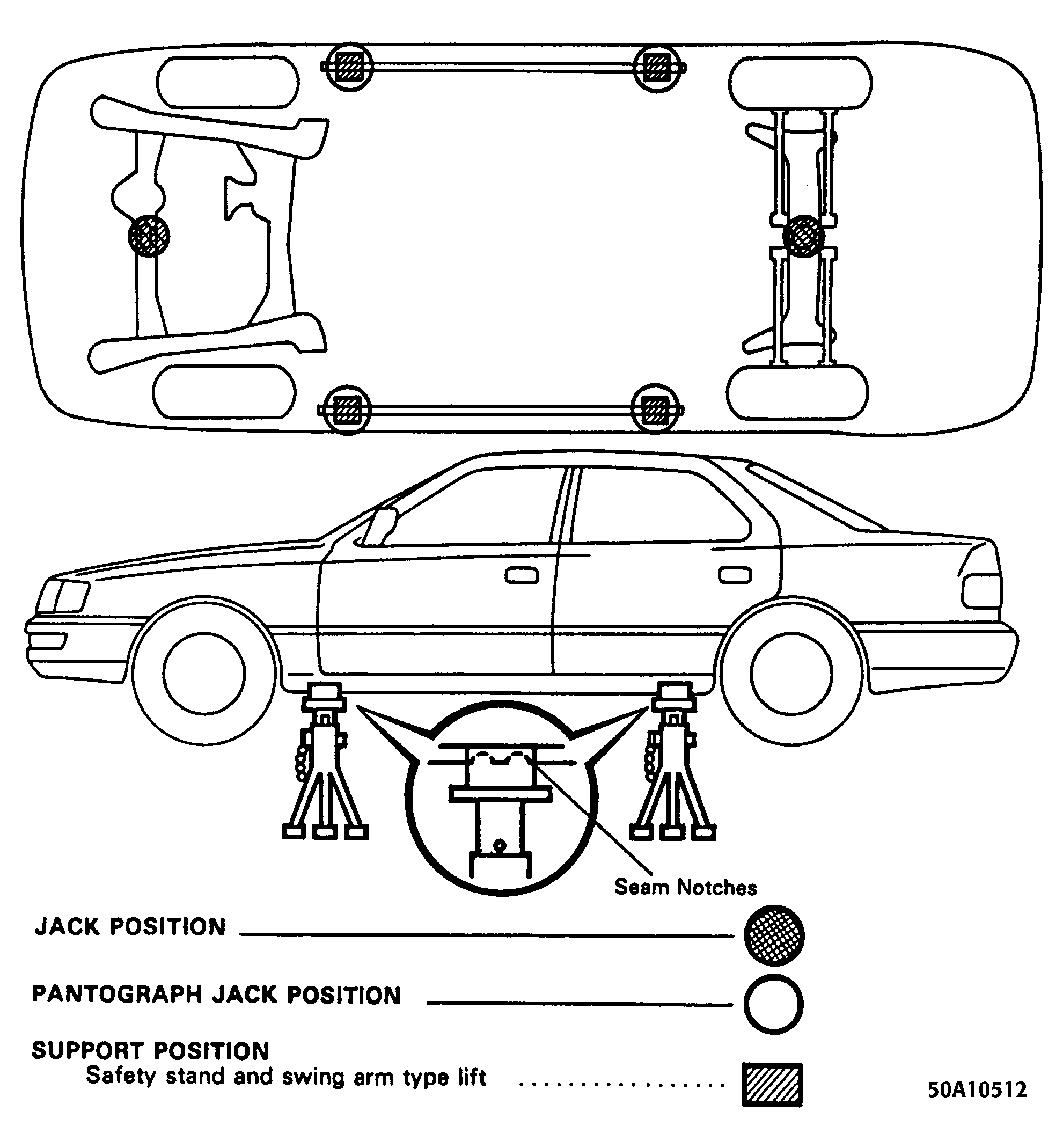

Fig 1: Jacking & Hoisting Support Points (Typical)

G50A10512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
