Test 7 Or Code 41 - Throttle Position Sensor Signal

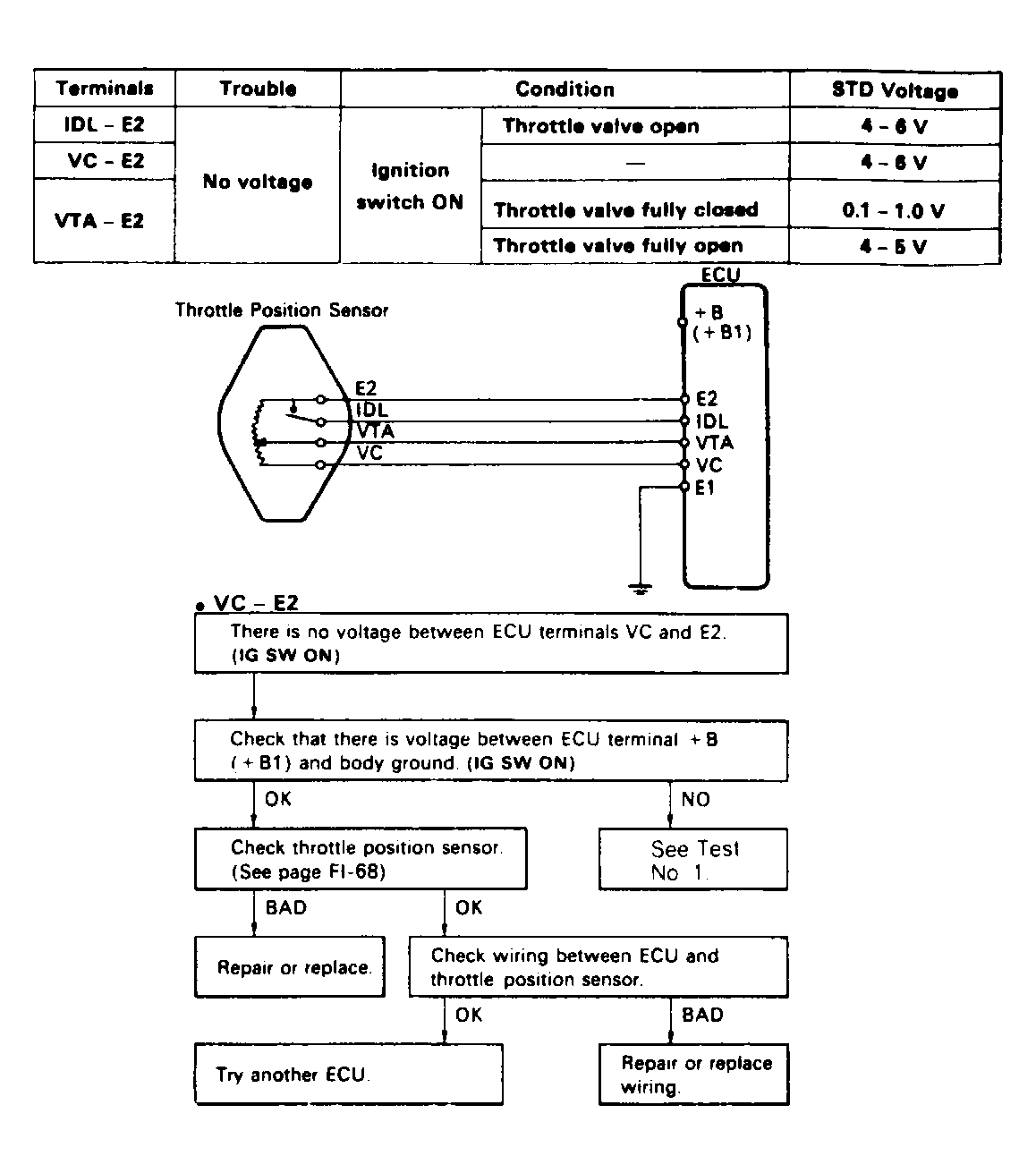

Fig 1: Test No. 7 or Code 41, VC-E2 Diagram & Flow Chart (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

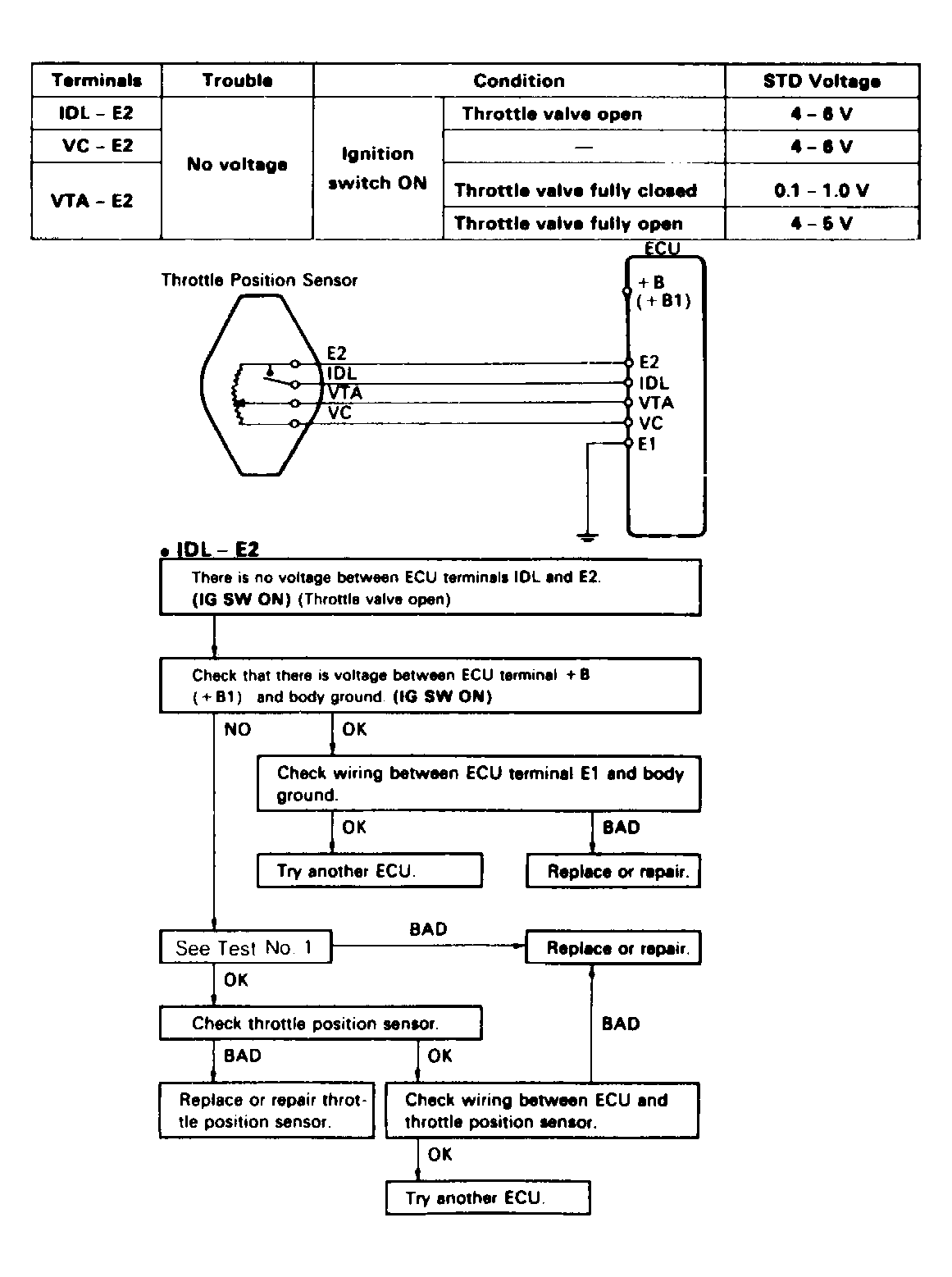

Fig 2: Test No. 7 or Code 41, IDL-E2 Diagram & Flow Chart (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

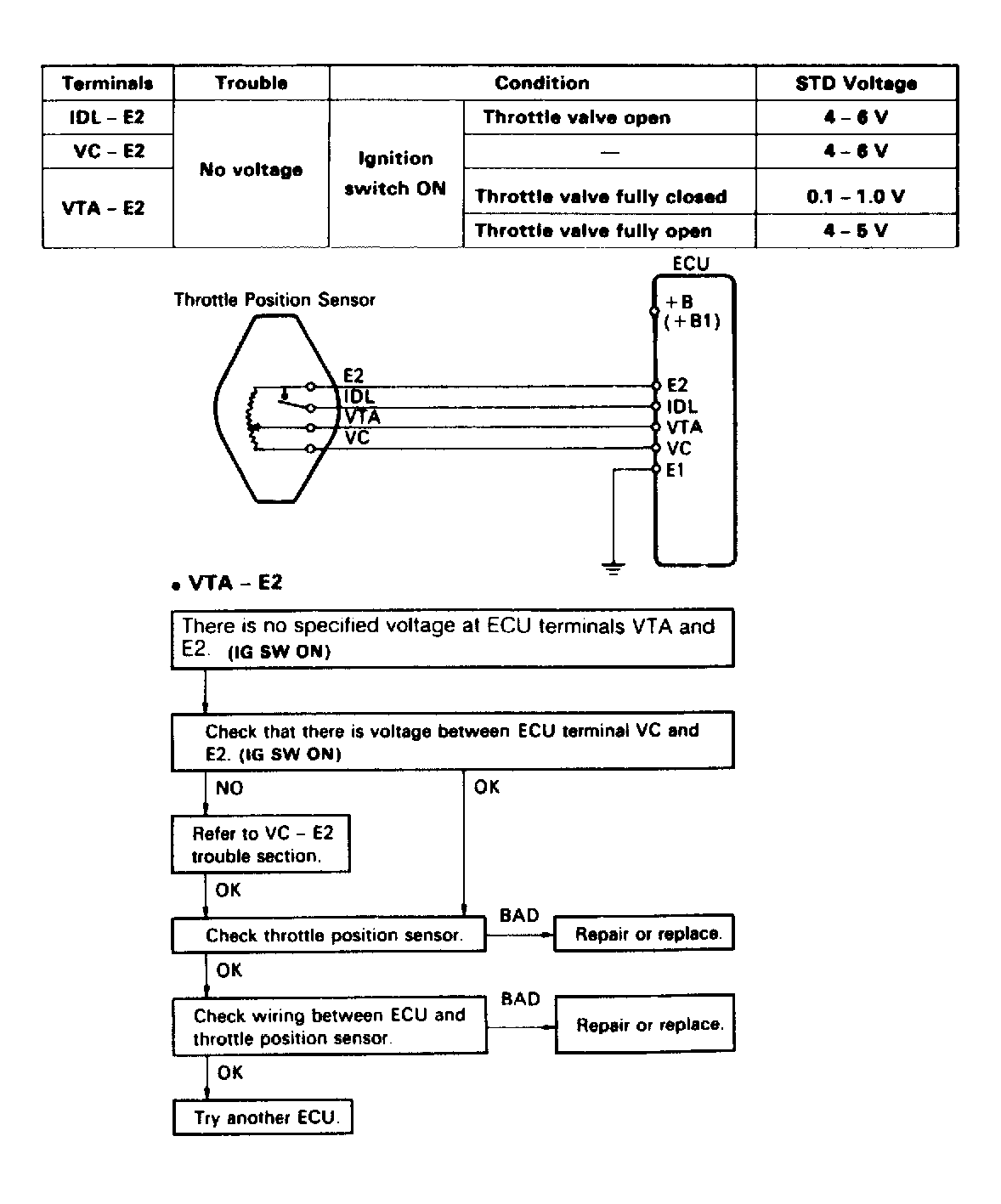

Fig 3: Test No. 7 or Code 41, VTA-E2 Diagram & Flow Chart (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
