Camry Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - EFI
>>
Diagnostic Circuit Check
>>
Notes
Diagnostic Circuit Check: Notes

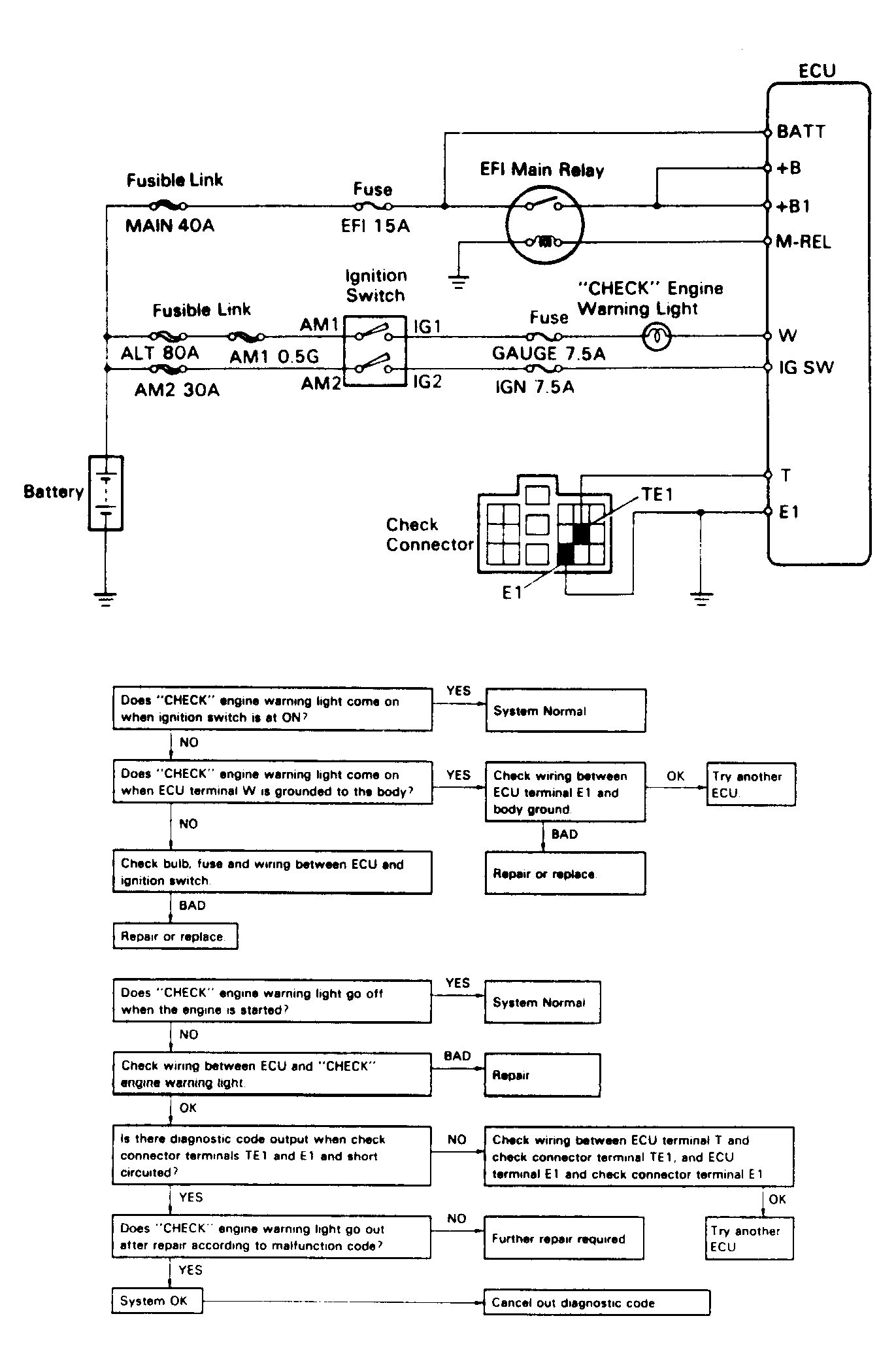

Fig 1: 4-Cyl Diagnostic Circuit Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

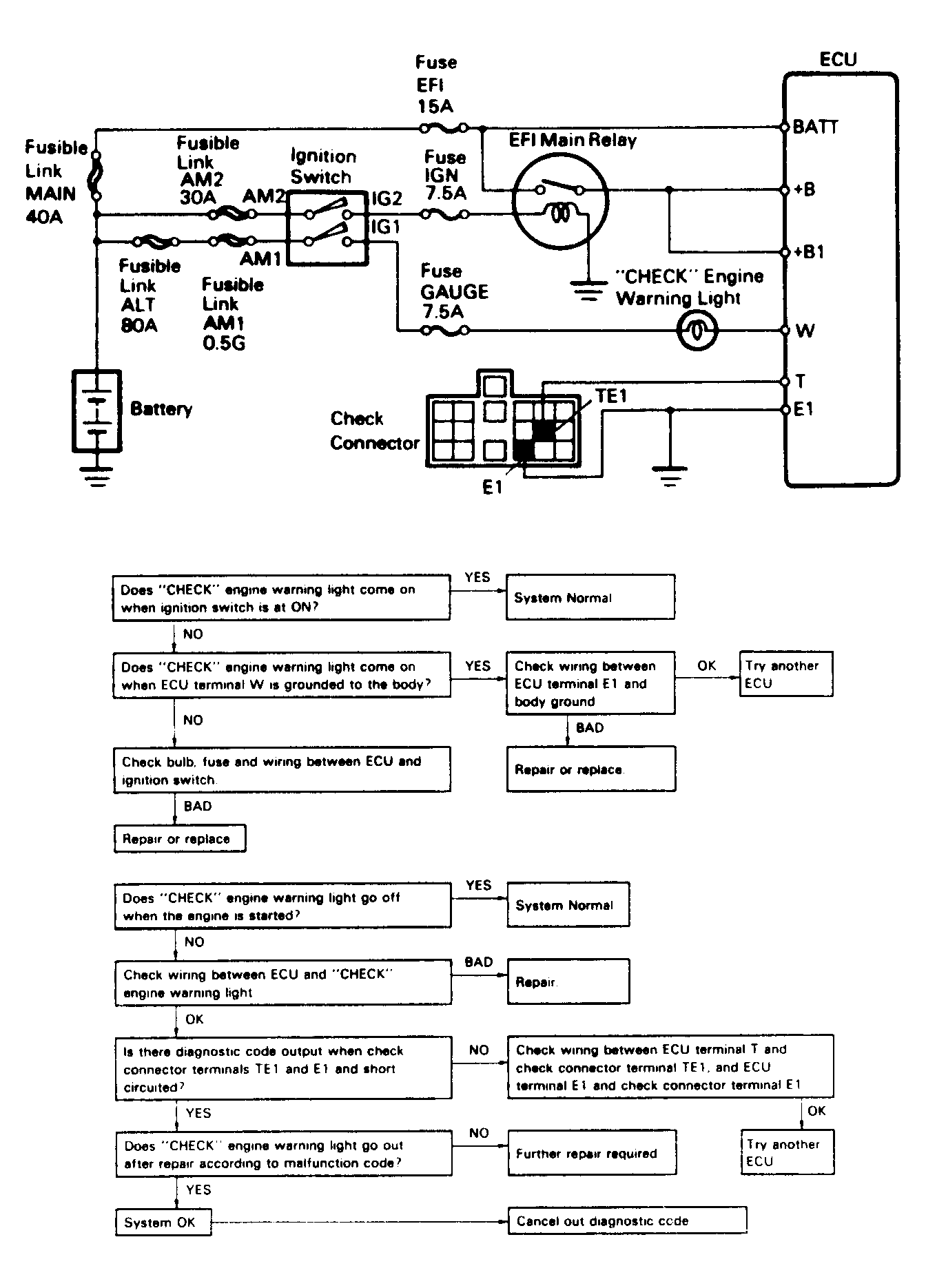

Fig 2: V6 Diagnostic Circuit Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
