No. 9 Test, Injector Circuit Test

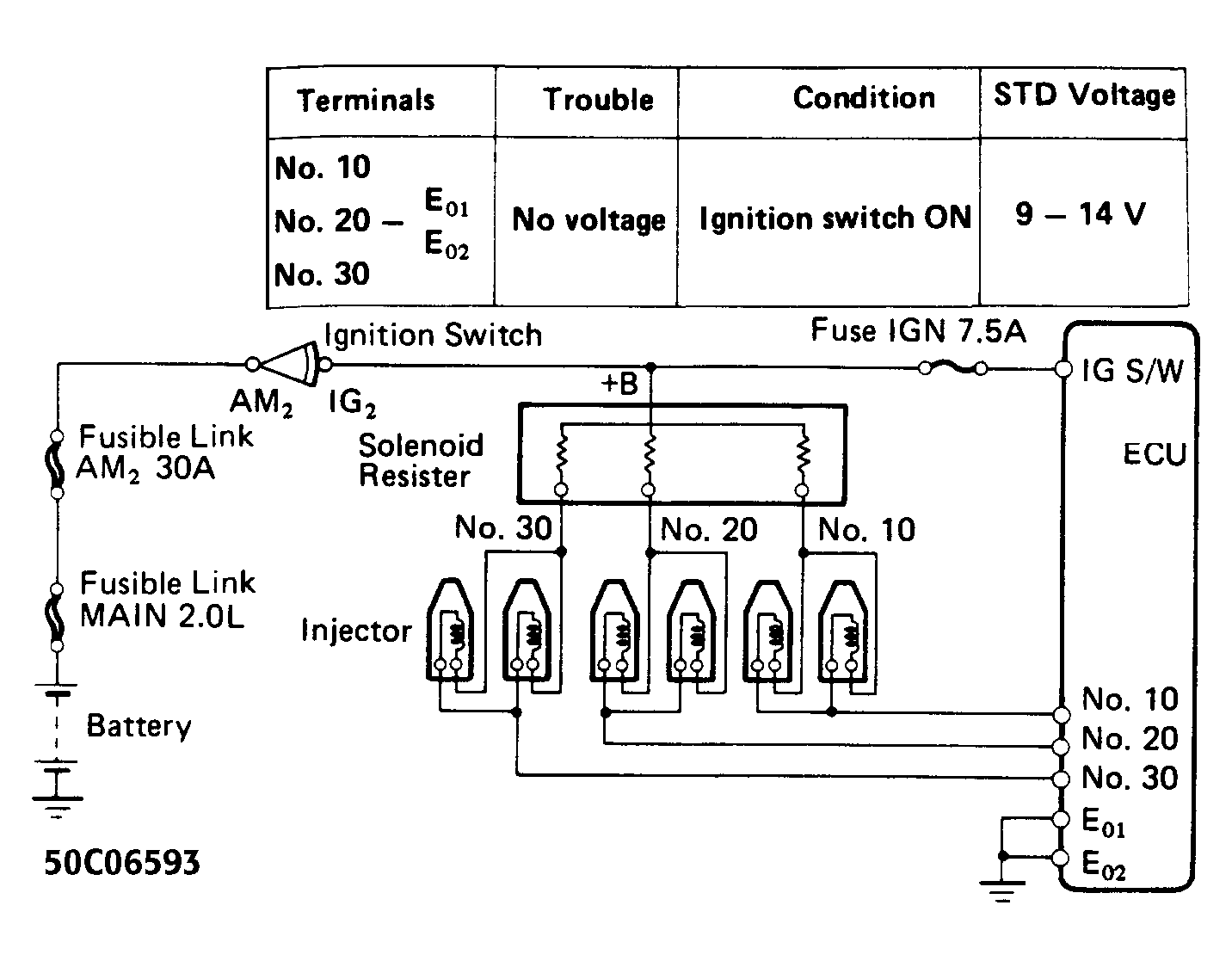

Fig 1: No. 9 Test Schematic, Injector Circuit Test
G50C06593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

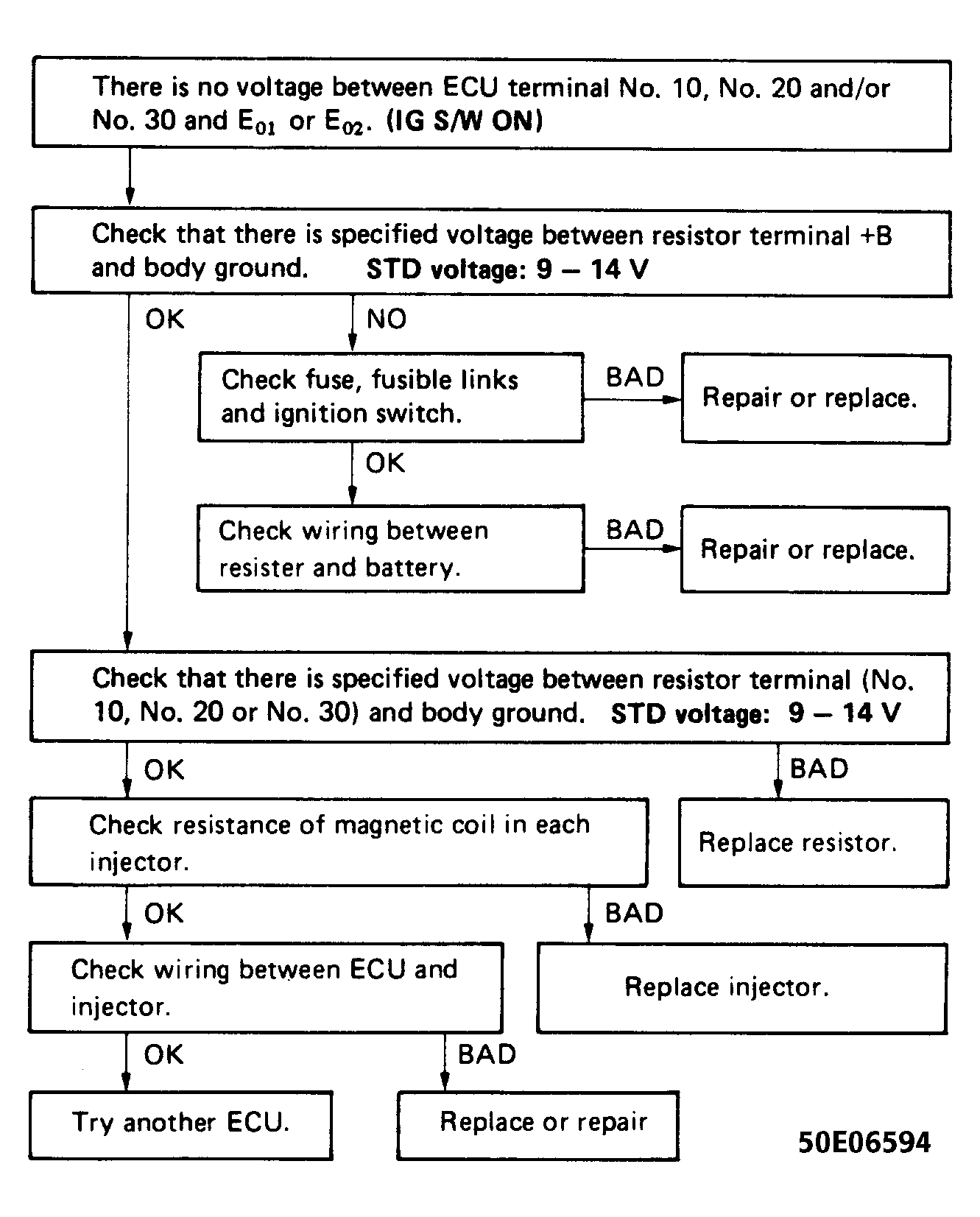

Fig 2: No. 9 Test Flow Chart, Injector Circuit Test
G50E06594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

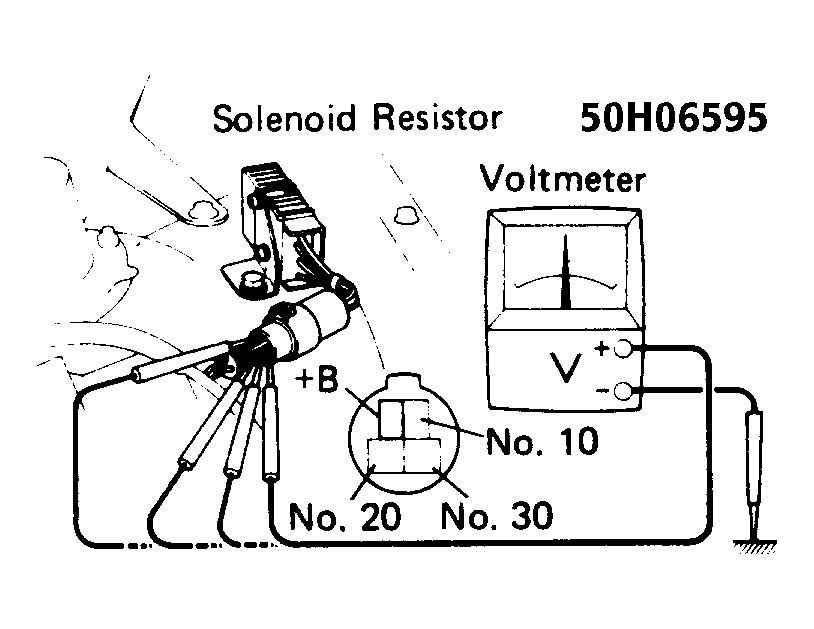

Fig 3: No. 9 Test, Specified Voltage Check (Terminals 10, 20 Or 30)
G50H06595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: No. 9 Test, Magnetic Coil Resistance Check
G50J06596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
