Distributor Vacuum Control: Locations

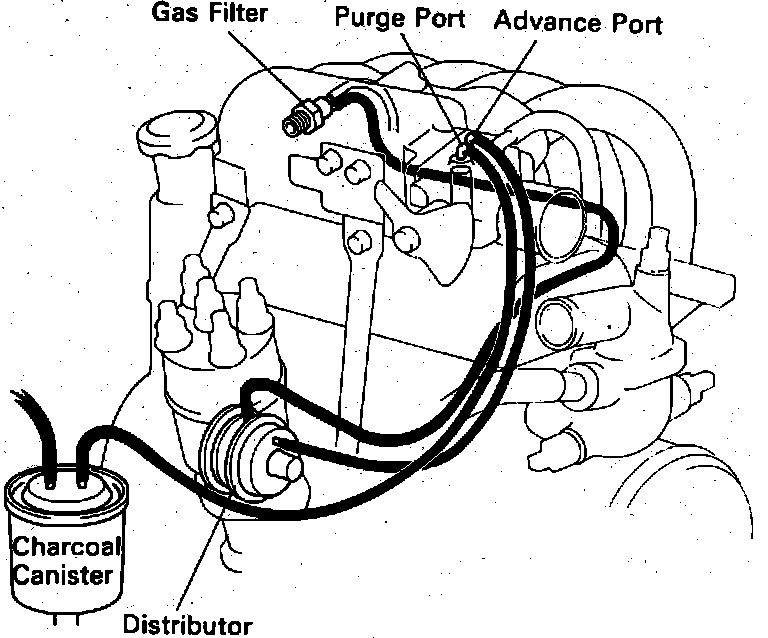

Emission Control System Components.:




Top RH Side Of Engine

Applicable to: 1983-84 4K-E Engine
