Main Relay (Computer/Fuel System): Locations

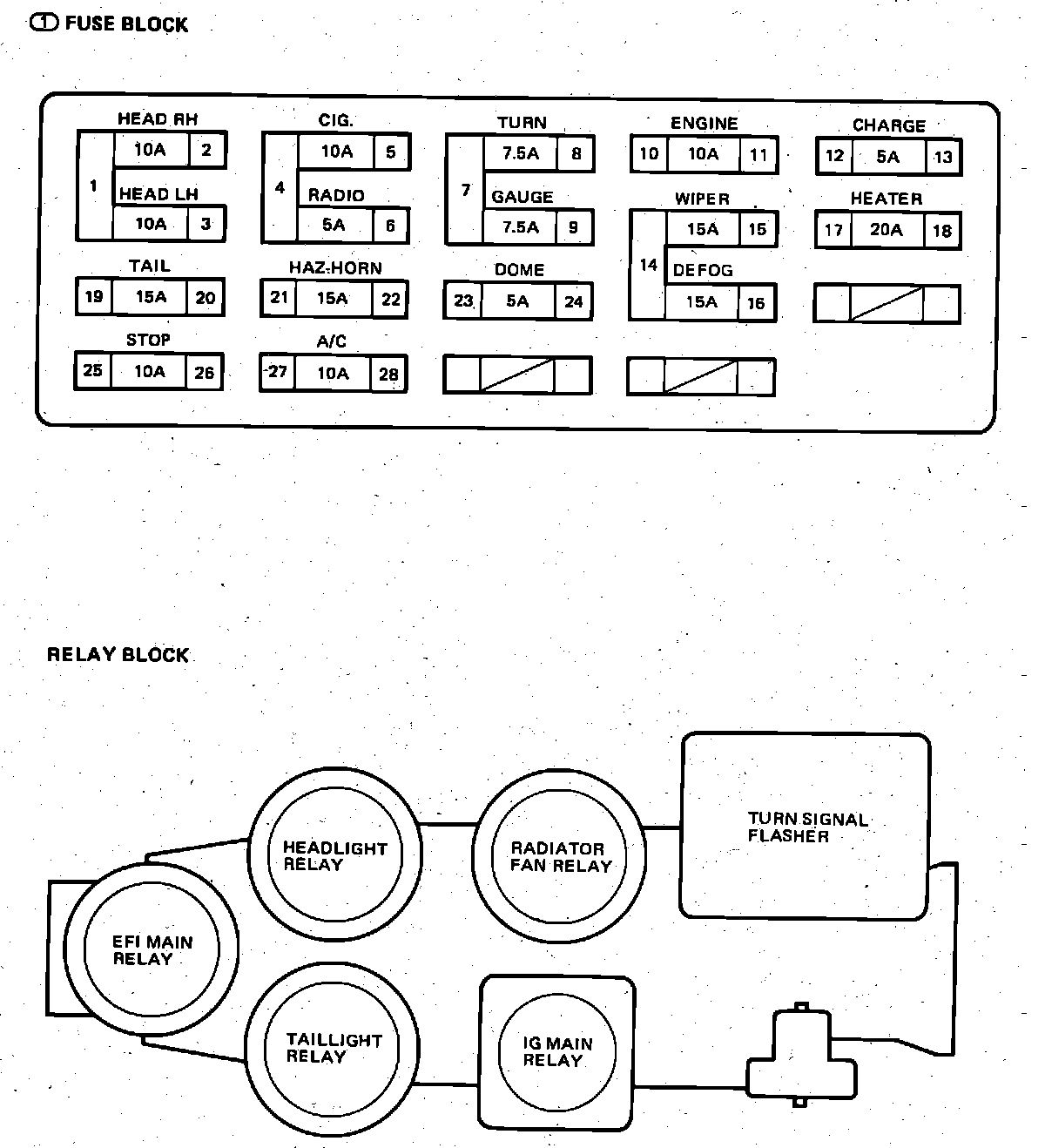

Fuse & Relay Locations.:




Relay Block, Behind LH Side Kick Panel

Applicable to: 1983-84 Models

Electronic Fuel Injection Component Locations.:




Behind LH Side Kick Panel

Applicable to: 1983-84 Models
