Home >> Toyota >> 1982 >> Tercel/Cor. Tercel L4-1452cc 1AC,3A,3AC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Carburetor

Carburetor

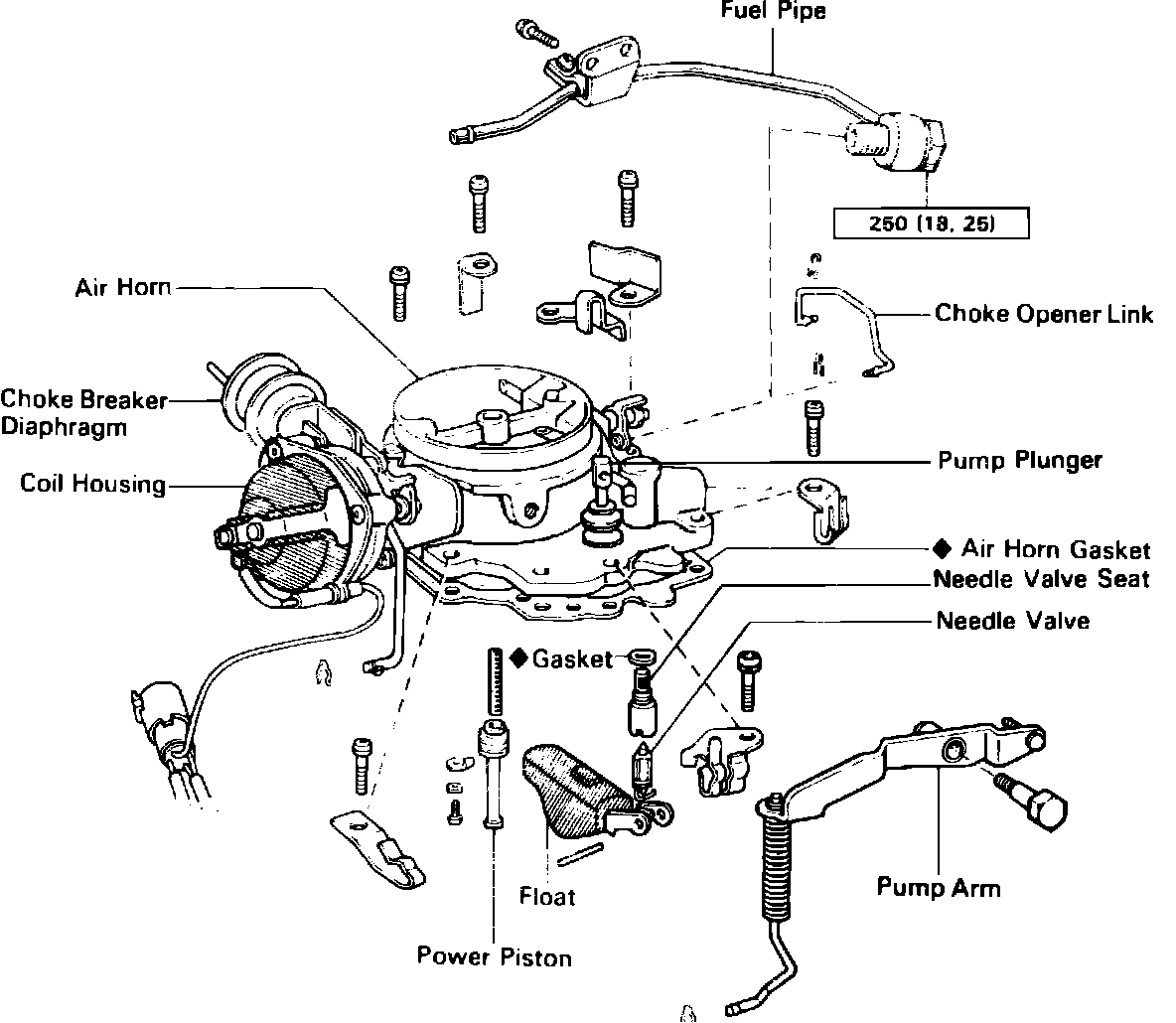

Fig. 1 Air horn assembly exploded view.:

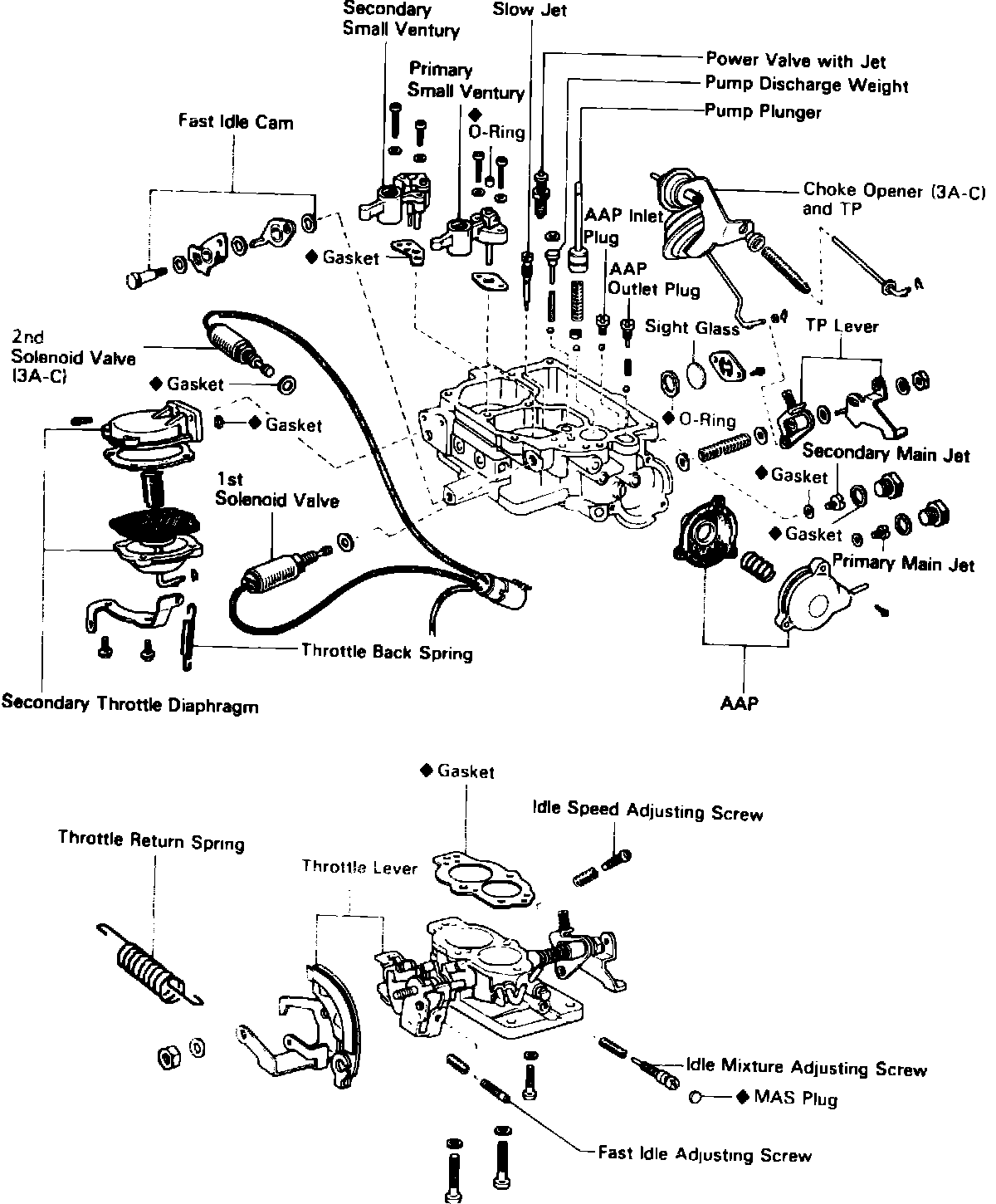

Fig. 2 Main & throttle body assemblies exploded view.:
