A/T Technical Data

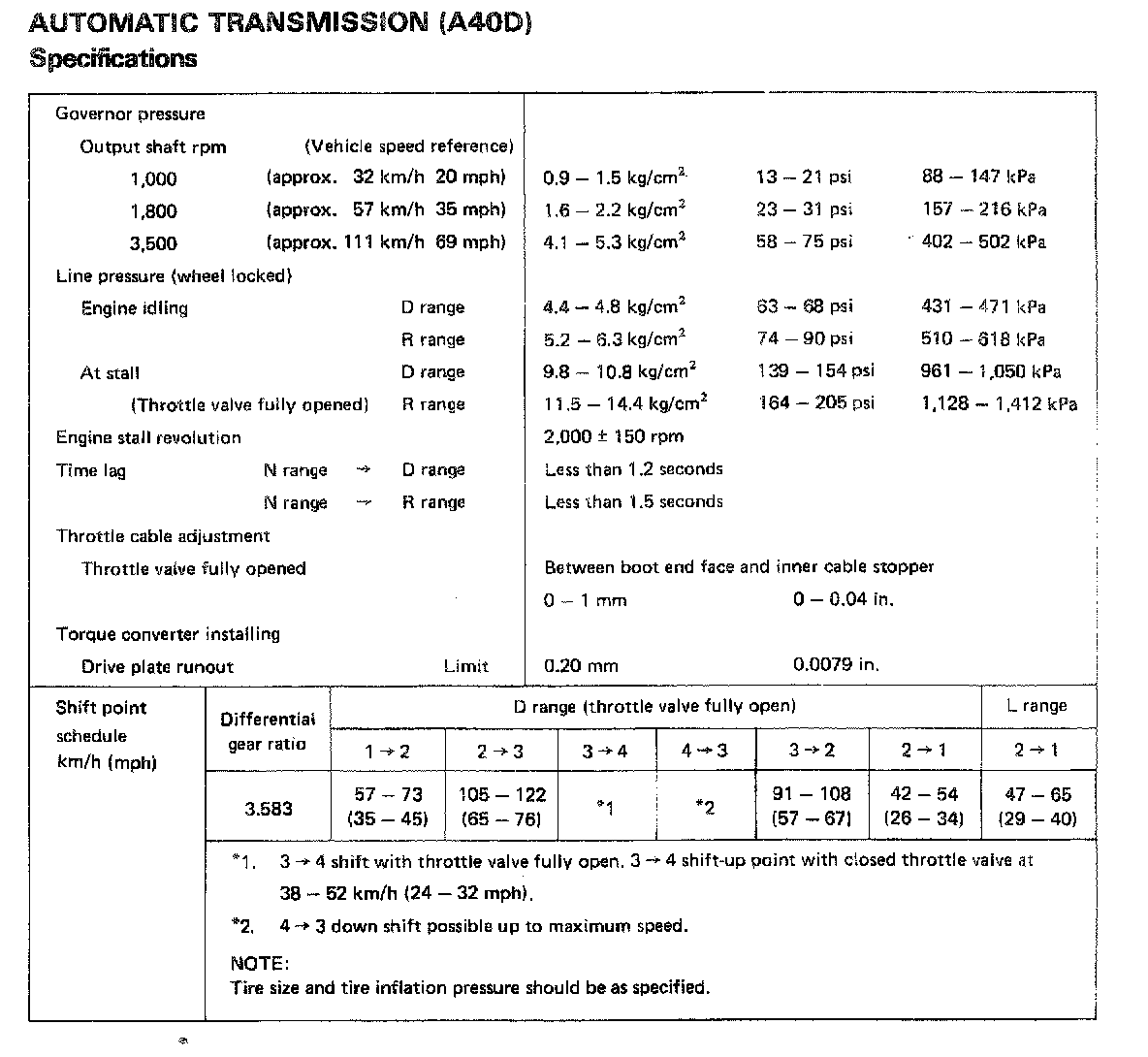

A40D 4-spd A/T, Pressure/Shift Points:

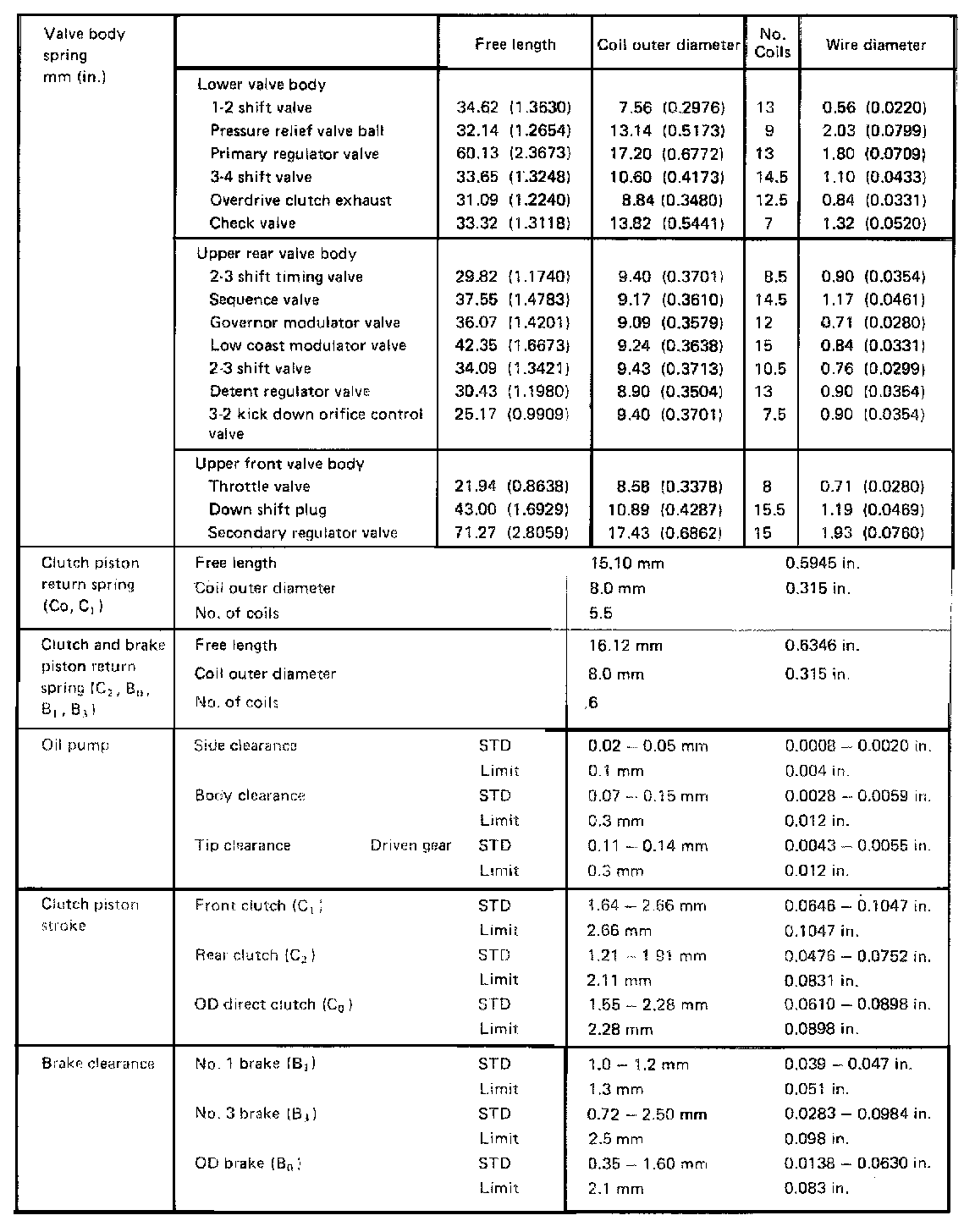

A40D 4-spd A/T, Valve Body/Clutch Clearances:

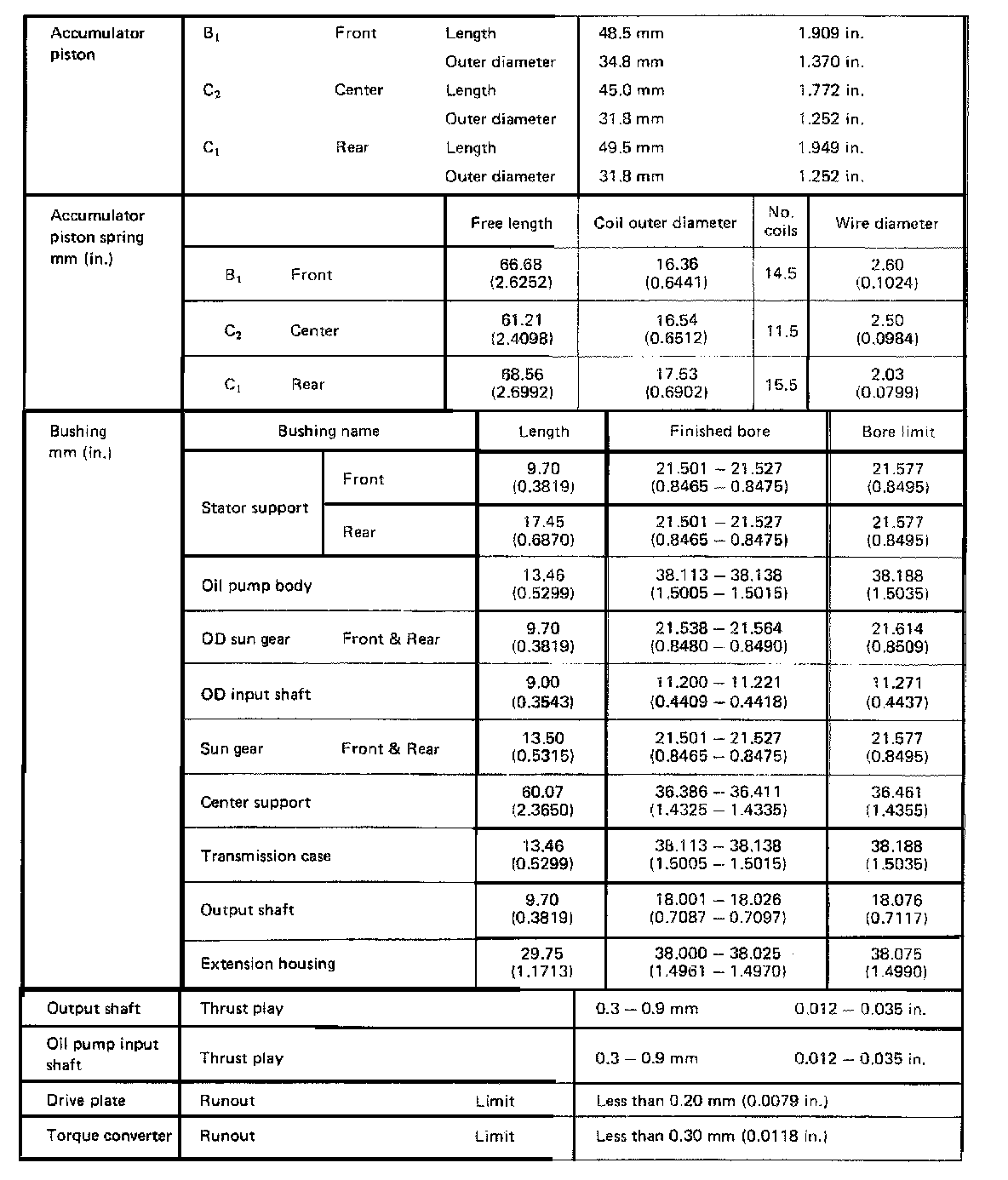

A40D 4-spd A/T, Accumulator/Oil Pump:
