D/F Technical Data

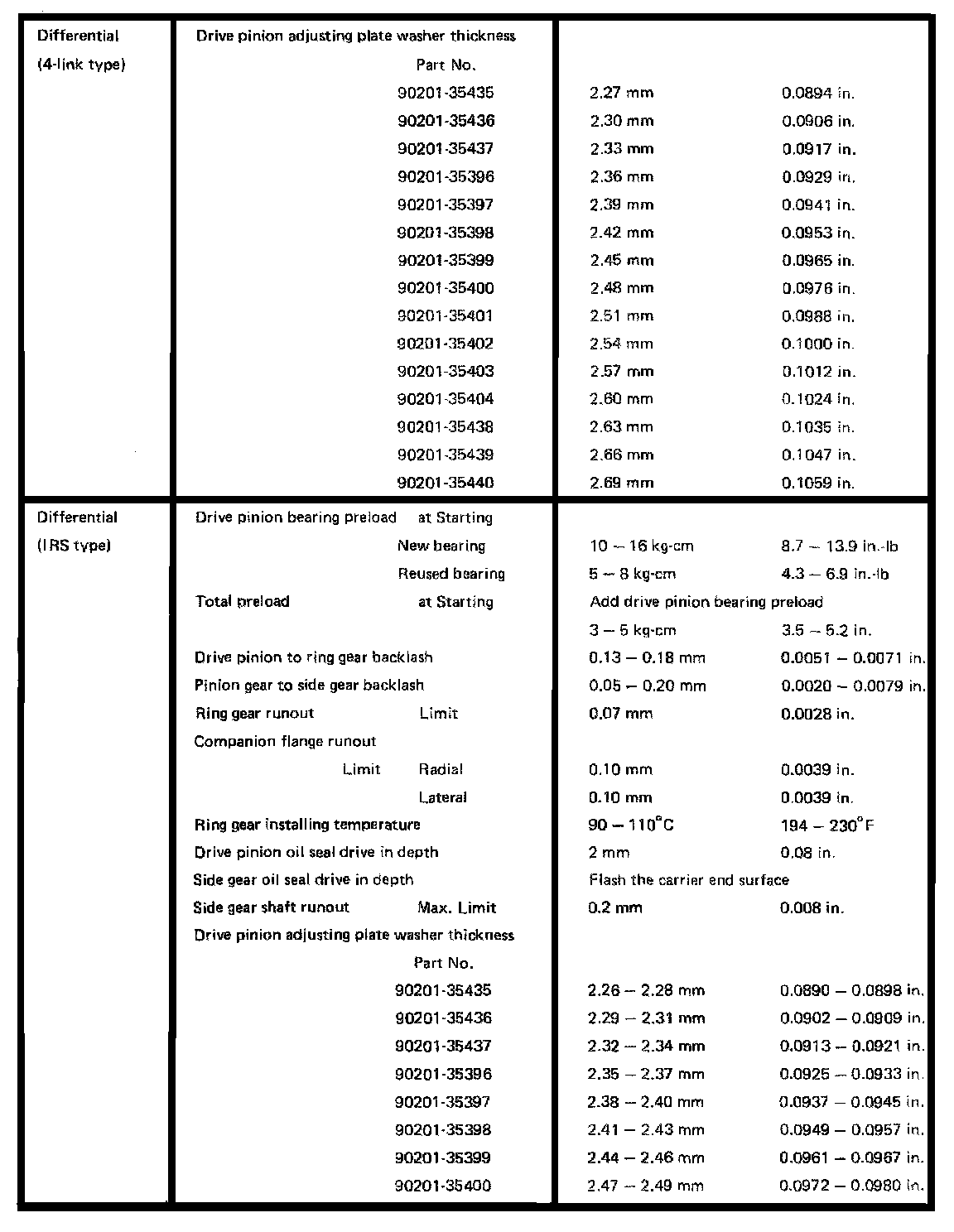

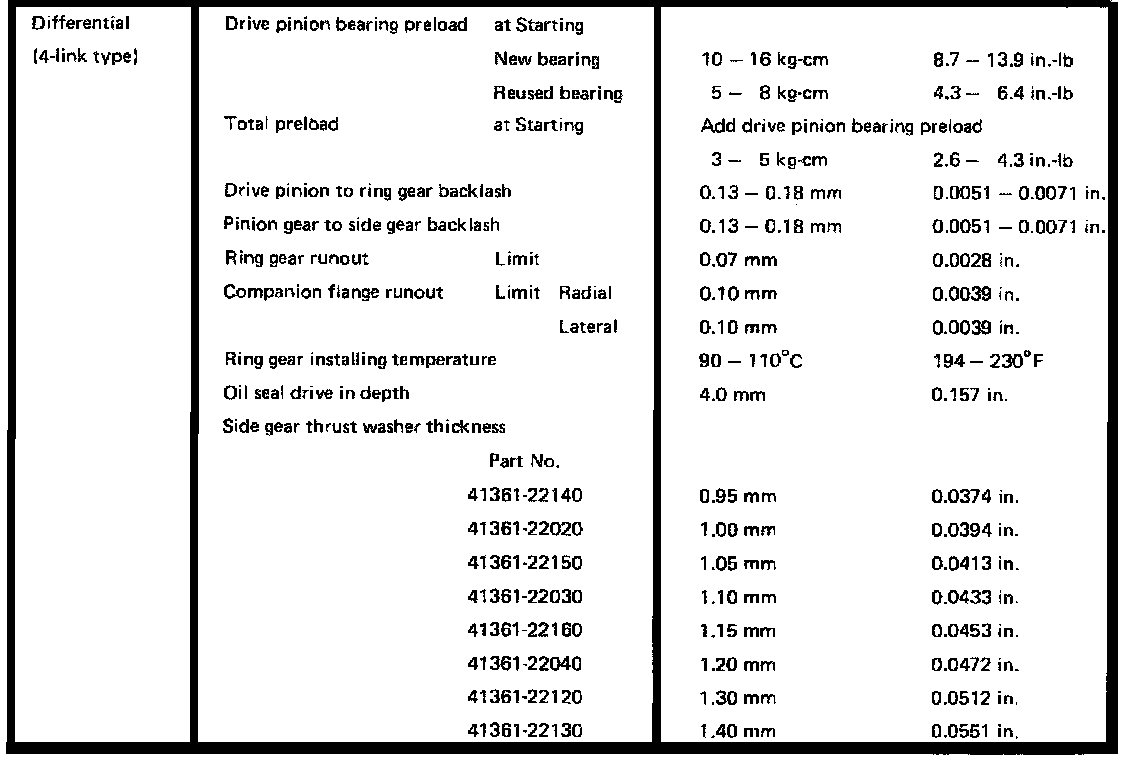

Rear Wheel Drive Differential, 4-Link Suspension:

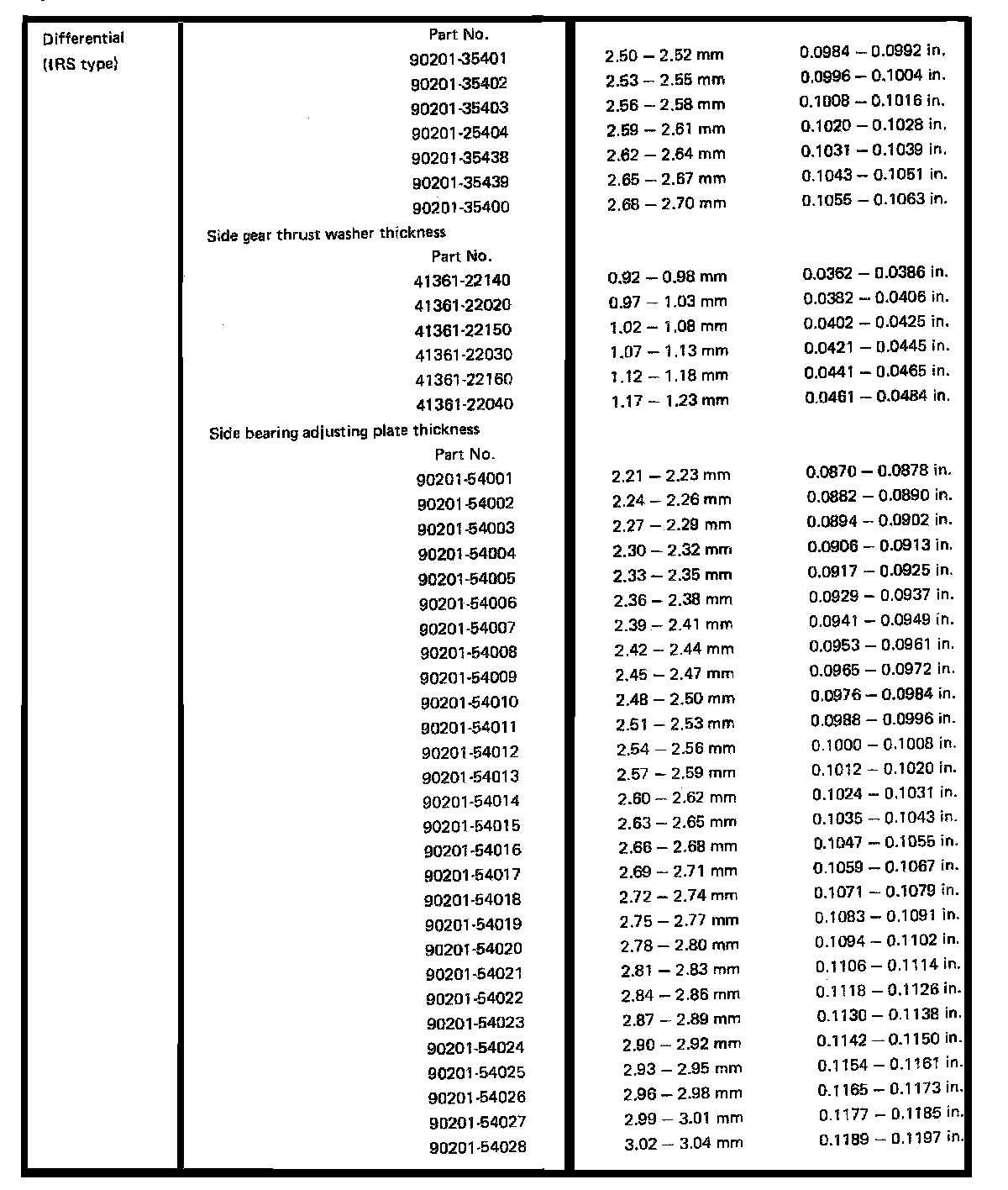

Rear Wheel Drive Differential, 4-Link/Independent Rear Suspension (IRS):





Rear Wheel Drive, Independent Rear Suspension:
