Ignition System Wiring Circuit Diagram

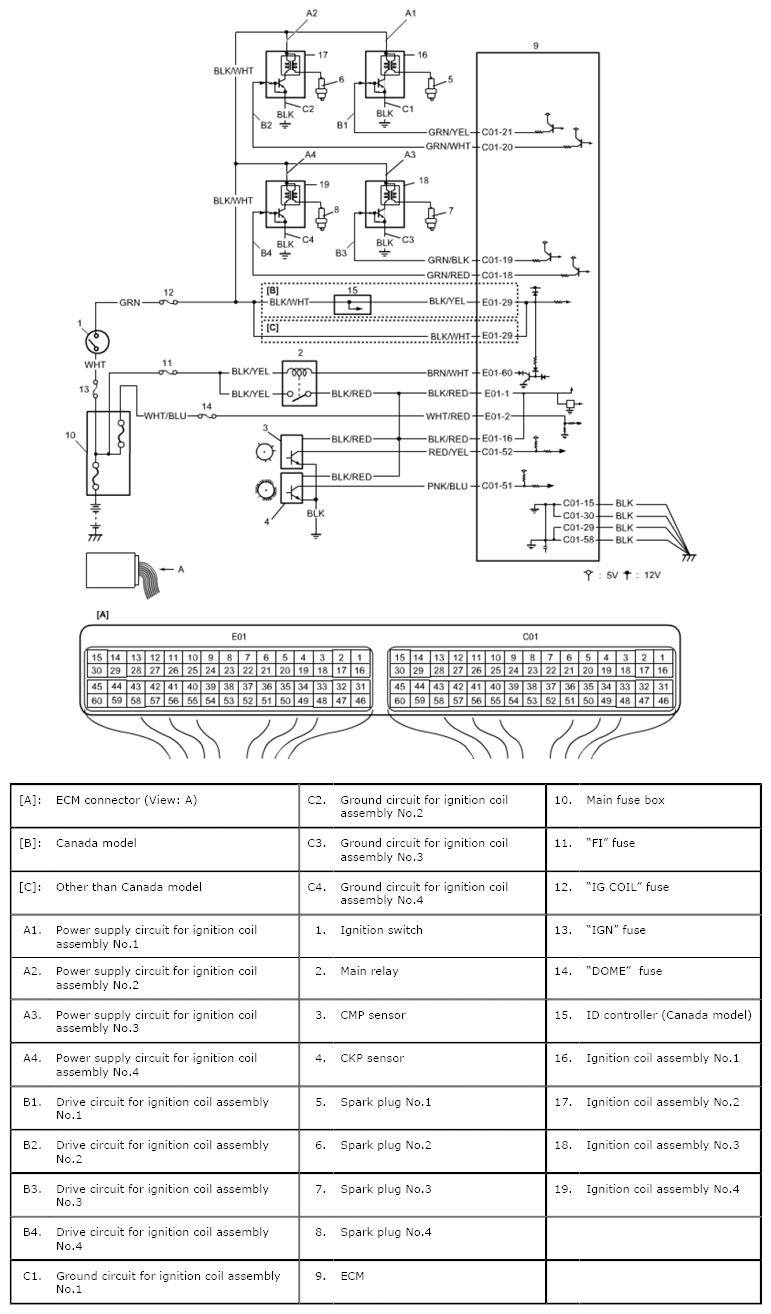

Fig 1: Ignition System Wiring Circuit Diagram

G06868220

Courtesy of SUZUKI OF AMERICA CORP.
