Power Window Sub Switch Inspection

Power Window Sub Switch Inspection

1) Remove front door trim from door panel, refer to Step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation.
2) Remove power window sub switch from door trim.

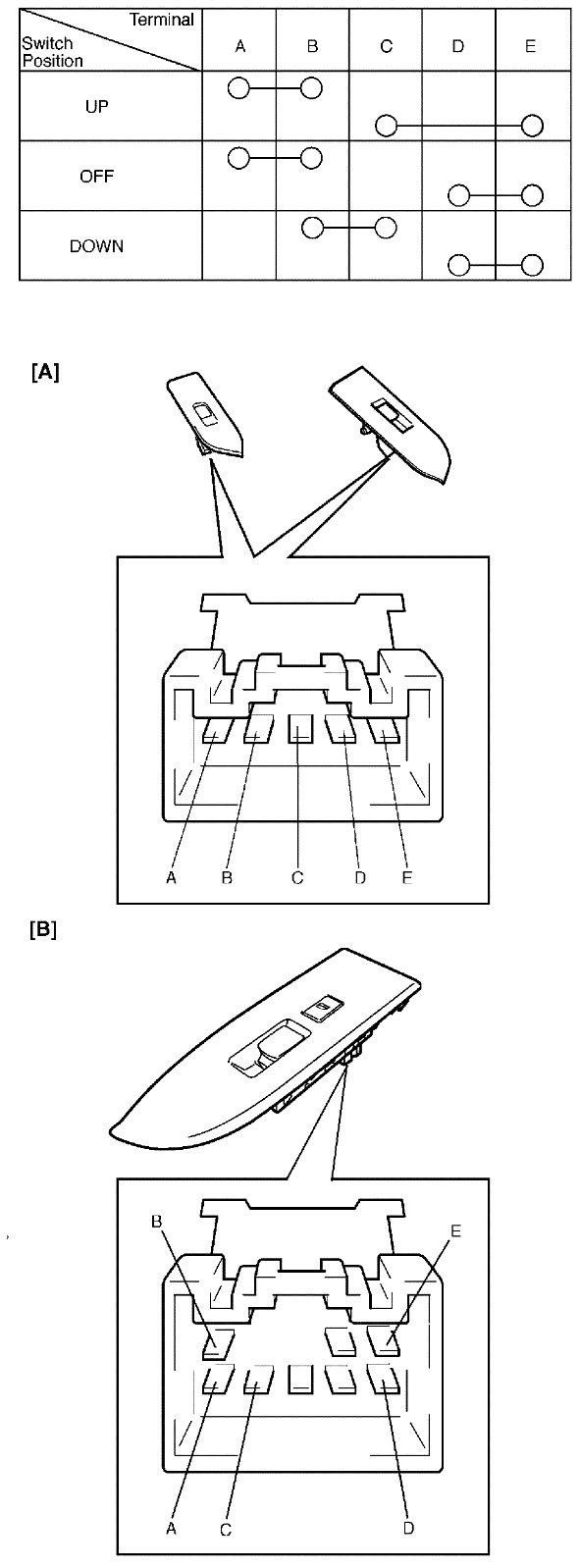

3) Check for continuity between terminals at each switch condition.

If check result is not as specified, replace switch.
