Inspection

Inside Air Temperature Sensor Inspection

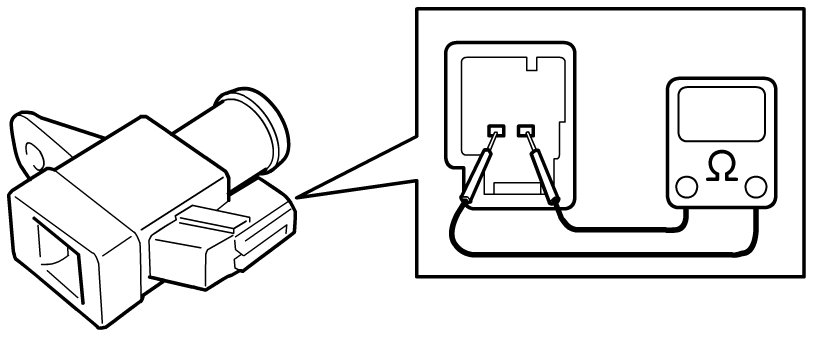

Measure resistance between each connector terminal with an ohmmeter.

If resistance is incorrect, replace inside air temperature sensor with new one.

Inside air temperature sensor resistance
2.2 ± 0.07 kohms at 25 °C (77 °F)
