Engine Switch Inspection

Engine Switch Inspection

Engine Switch Removal and Installation

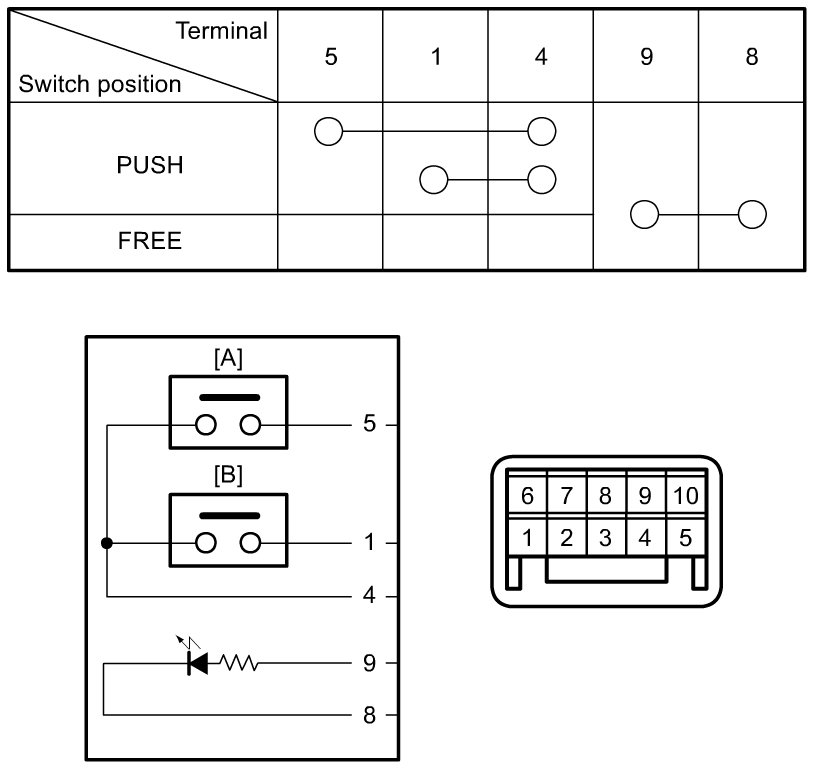

Check engine switch for continuity between terminals at each switch position.

If check result is not as specified, replace engine switch.

NOTE:

Use diode range of circuit tester when checking terminals "9" and "8".
