Instrument Panel

Instrument Panel

E: Main Harness





E: Main Harness





G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / Q: Passenger Air Bag Harness / S: Contact Coil

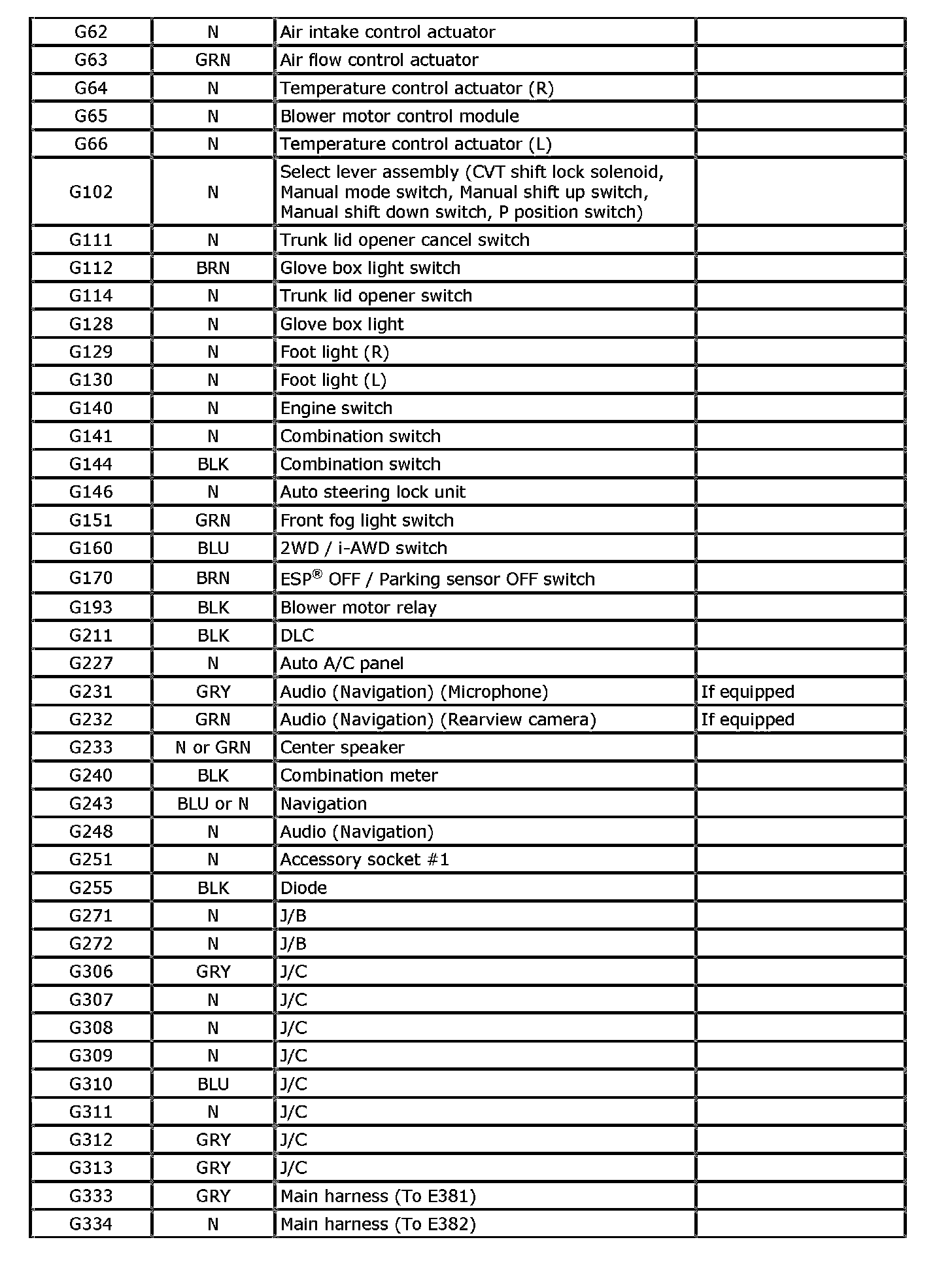

G: Instrument Panel Harness











G: Instrument Panel Audio Antenna Wire





G: USB Cable





Q: Passenger Air Bag Harness





S: Contact Coil
