Sunload Sensor Removal and Installation




Sunload Sensor Removal and Installation

Removal

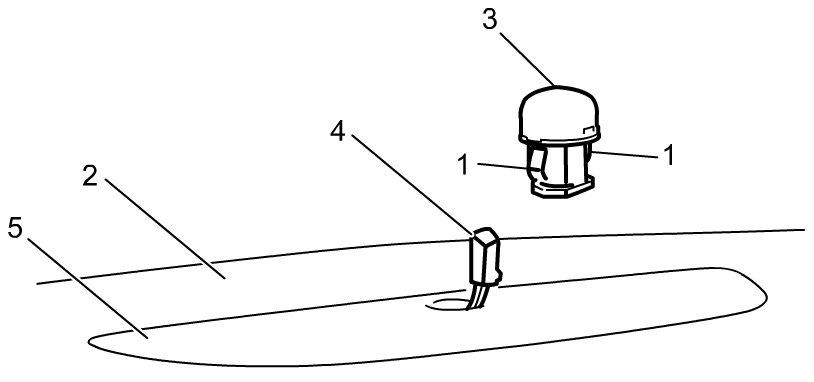

1) Remove center speaker cover (5) from instrument panel (2).
2) Release claws (1) and remove sunload sensor (3) from center speaker cover.
3) Disconnect connector (4) from sunload sensor.






Installation

Reverse removal procedure.
