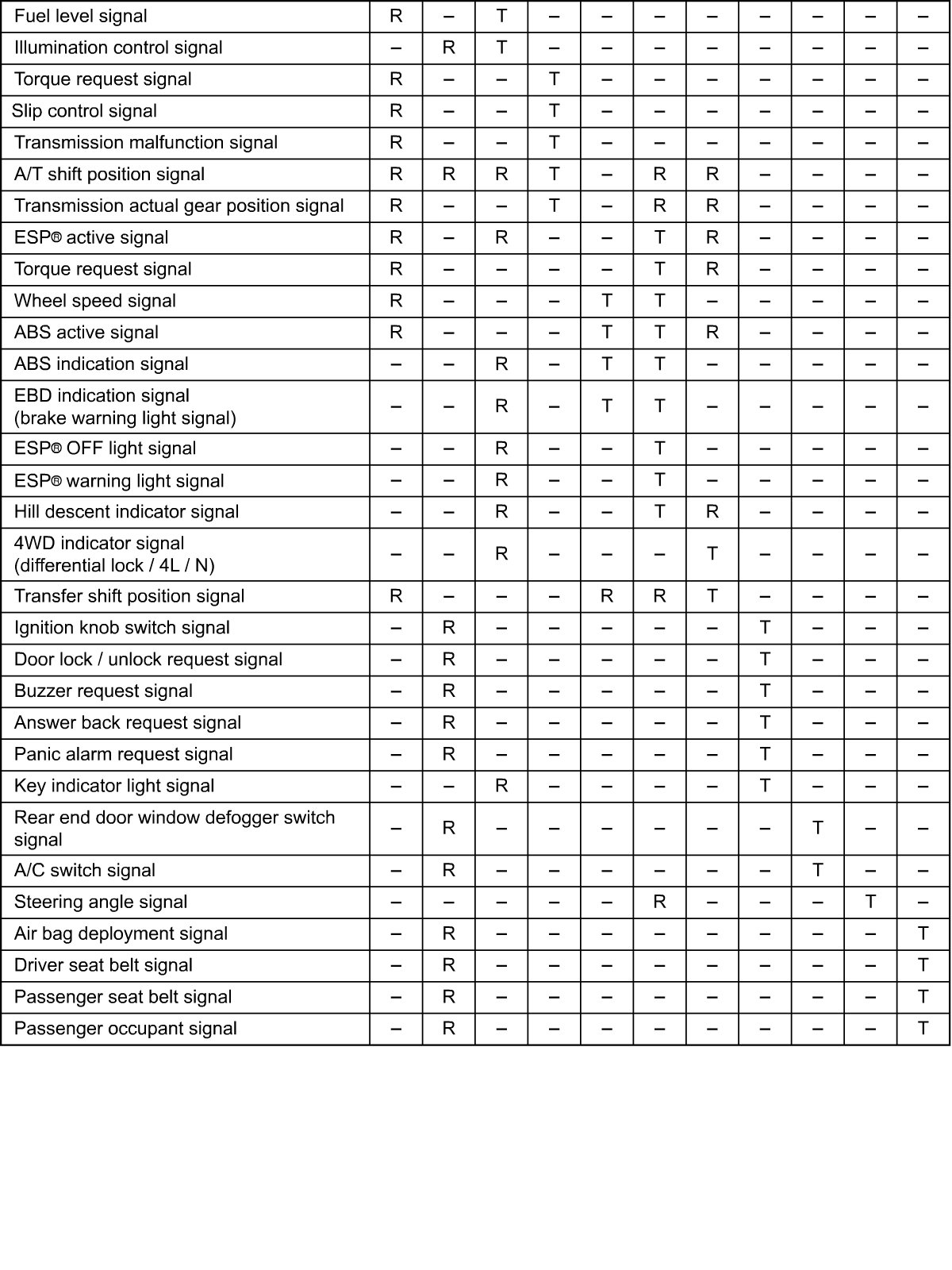

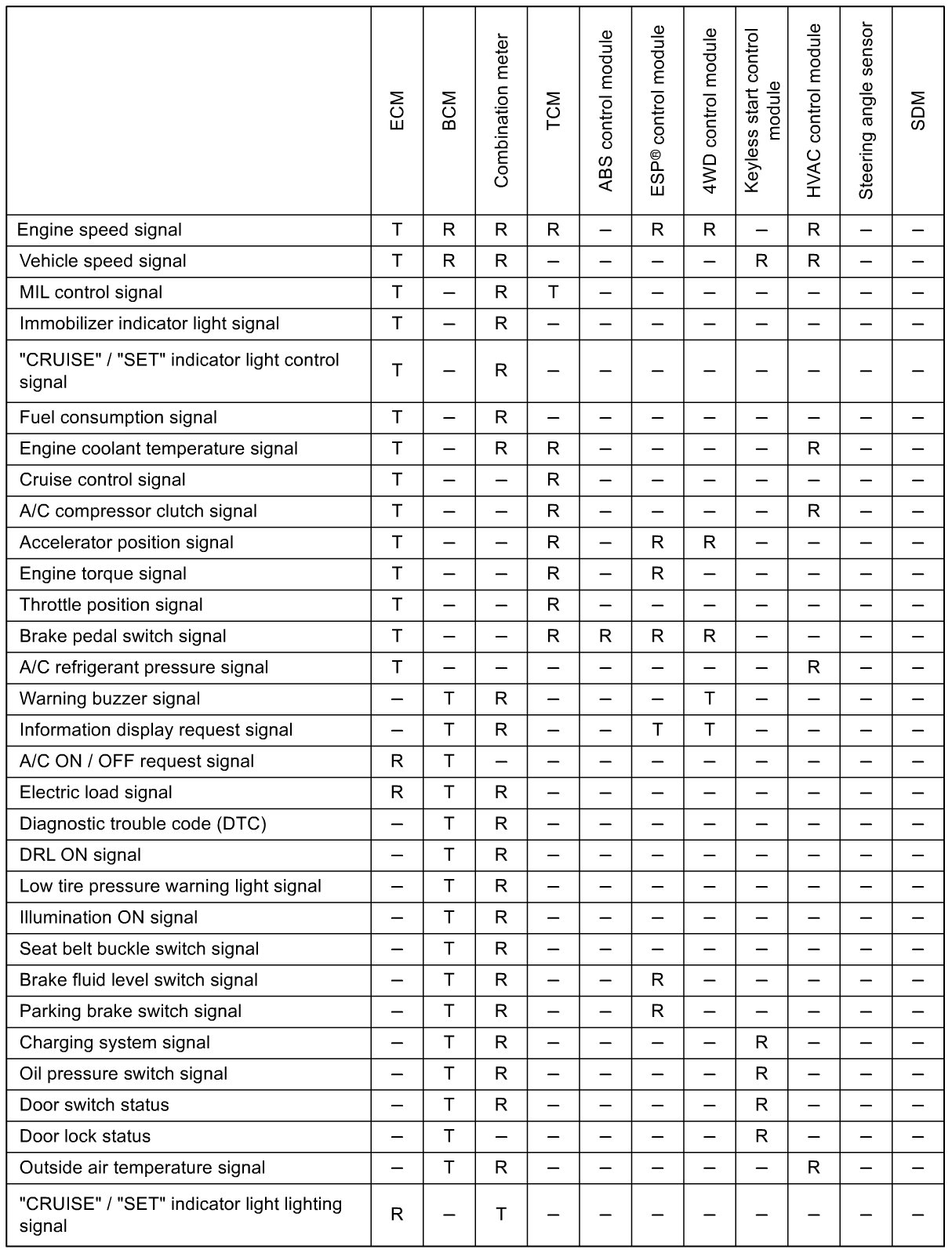

CAN Communication System Transmitting and Receiving Data Table
CAN Communication System Transmitting and Receiving Data Table
CAN Communication System Transmitting and Receiving Data Table
NOTE:
T: Transmit
R: Receive
