Home >> Suzuki >> 2012 >> Grand Vitara 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front Brakes

Front Brakes

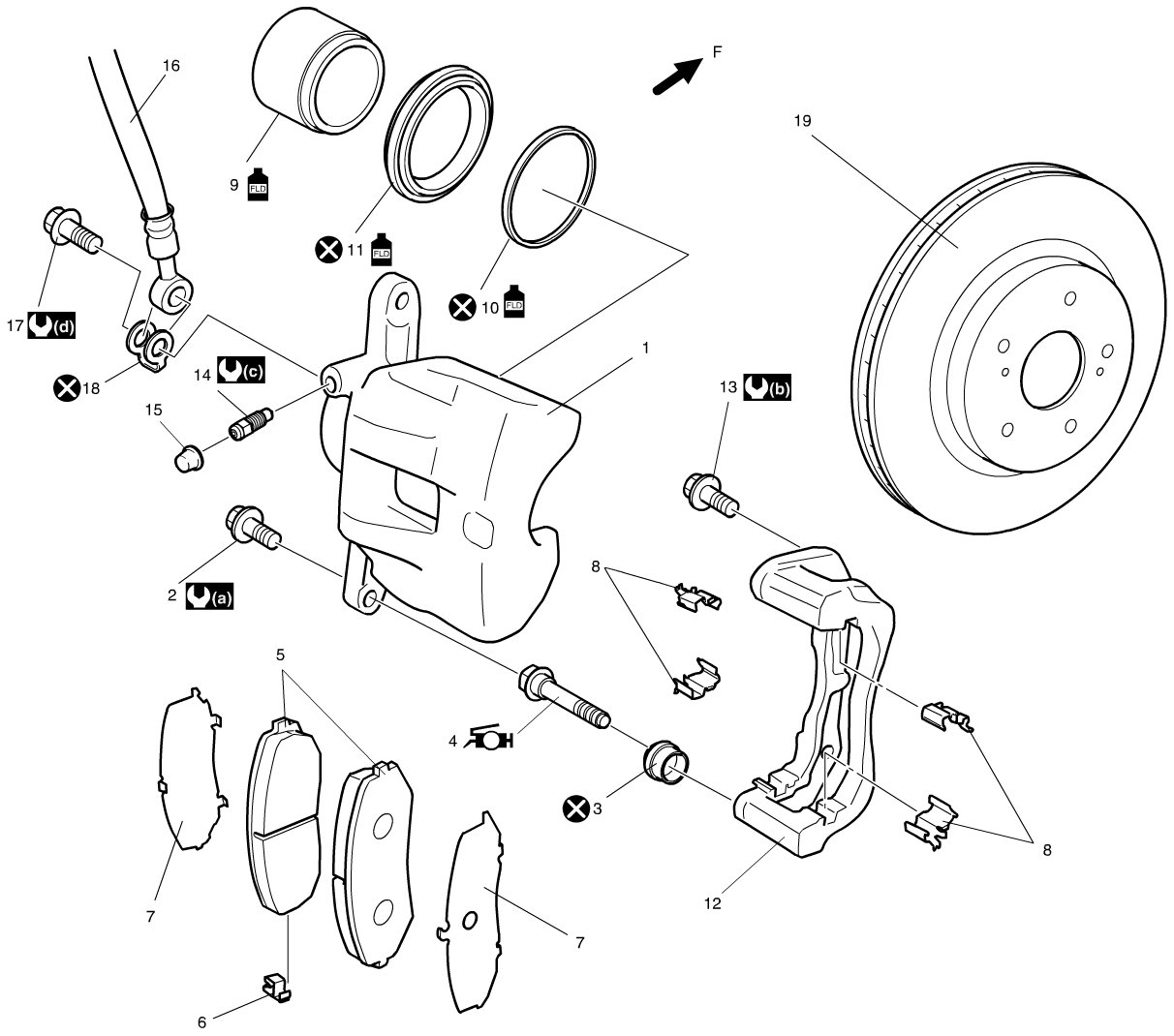

Front Disc Brake Components
