Access Cover: Service and Repair

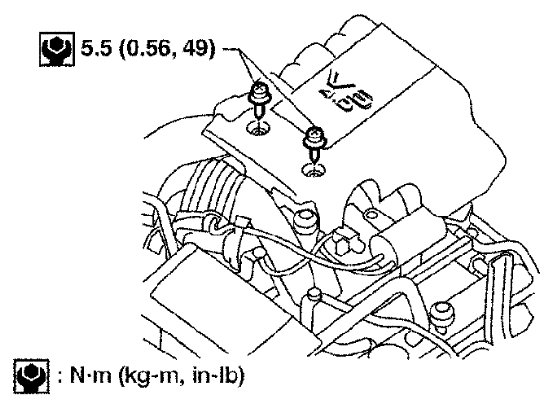

Engine Room Cover: Removal and Installation

CAUTION:

Do not damage or scratch cover when installing or removing.

Removal

1) Remove the engine room cover bolts using power tool.





2) Lift up on engine cover firmly to dislodge snap fit mounts.

Installation

Installation is in the reverse order of removal.
