Exhaust Manifold

Exhaust Manifold and Three Way Catalyst

Nuts 41.7 N.m (4.3 kg-m, 31 ft-lb)

Note: Always replace nut after every disassembly.




Exhaust Manifold

1) If stud bolts were removed, install them and tighten to the specified torque.

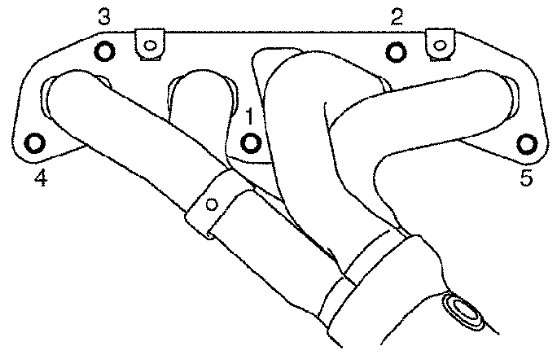

2) Tighten nuts in numerical order as shown.





3) Tighten nuts in numerical order as shown again.
