Service Information for Electrical Incident: Work Flow
Service Information for Electrical Incident: Work Flow
Service Information for Electrical Incident: Work Flow

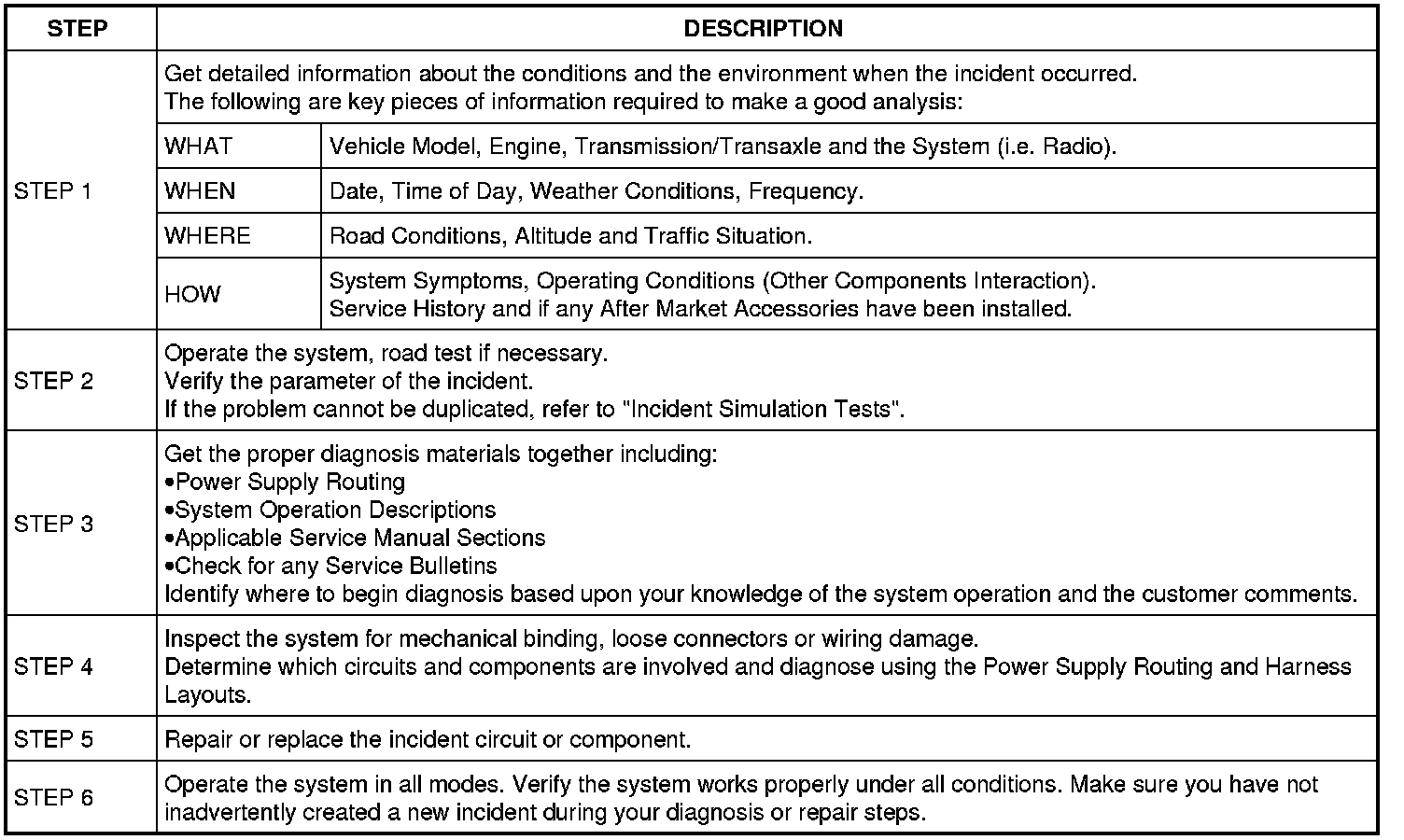

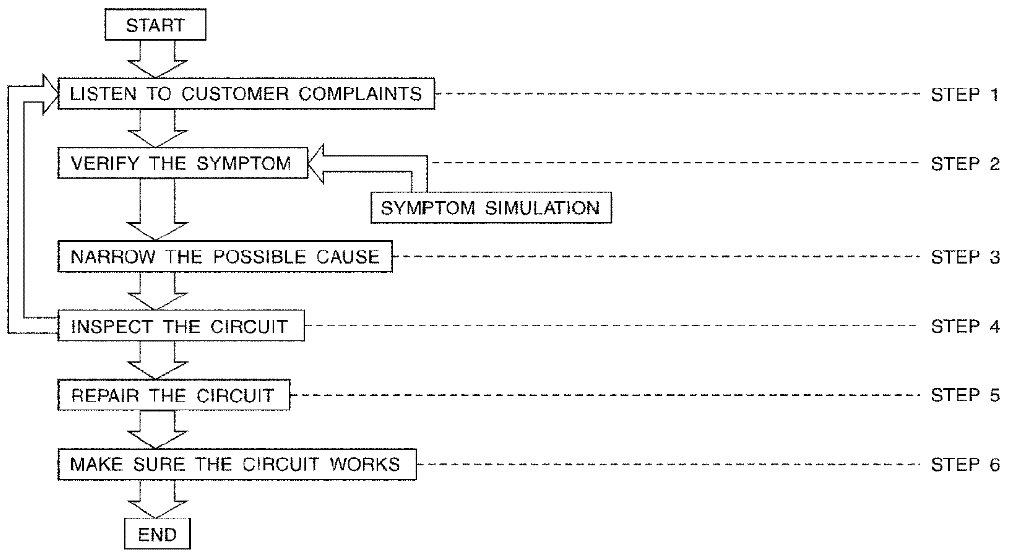

Work Flow
