Component Locations

Ground Distribution

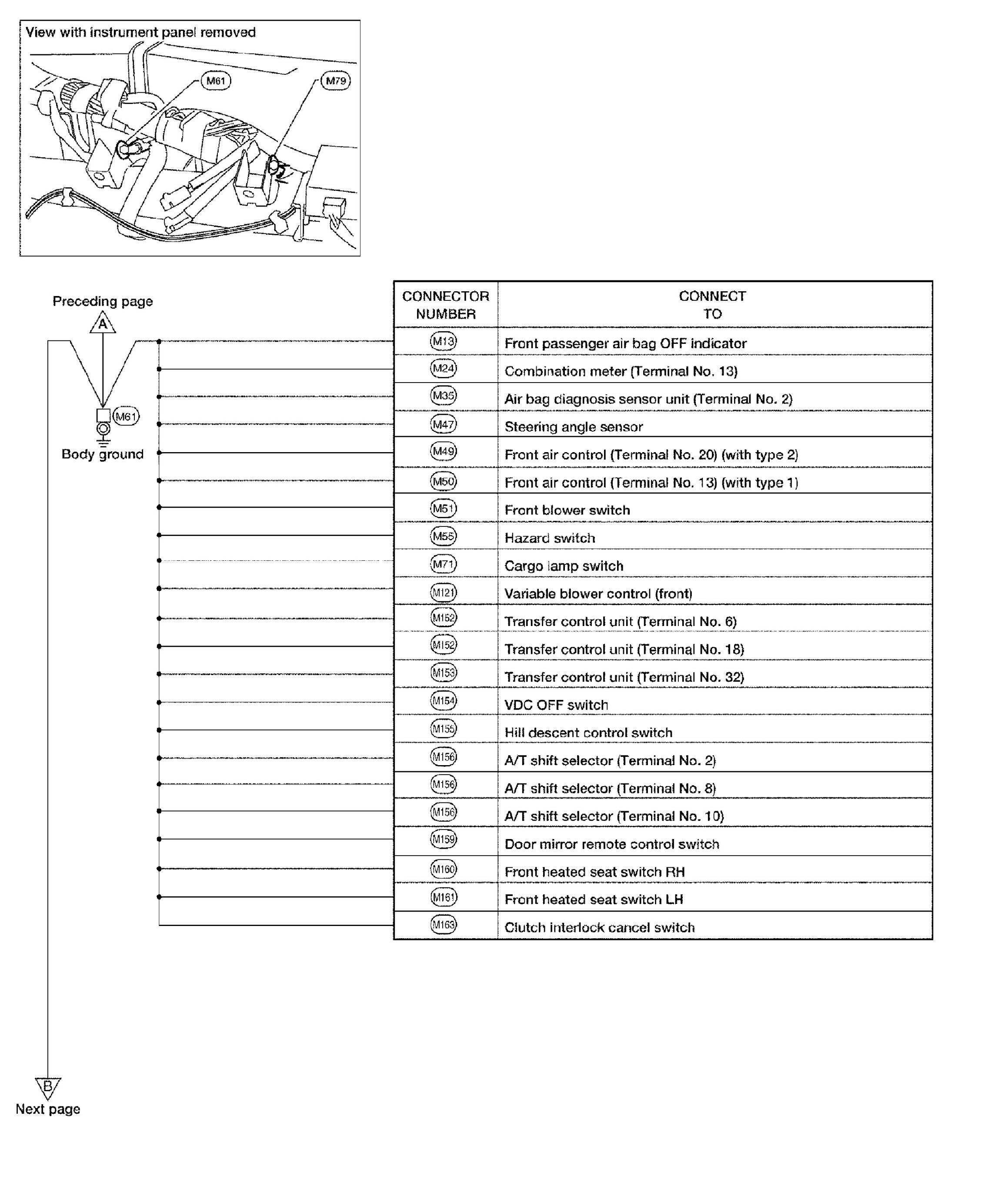

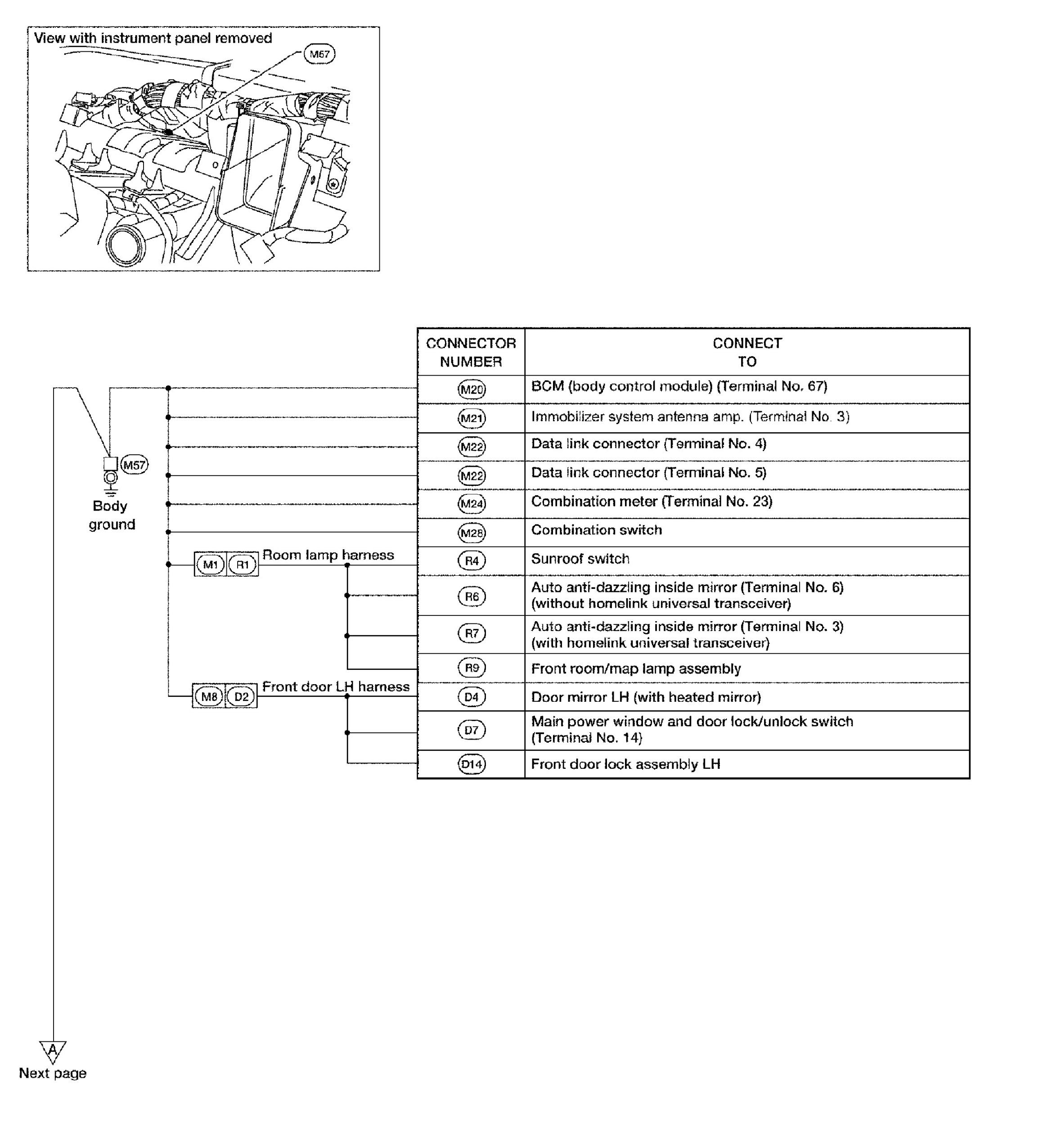

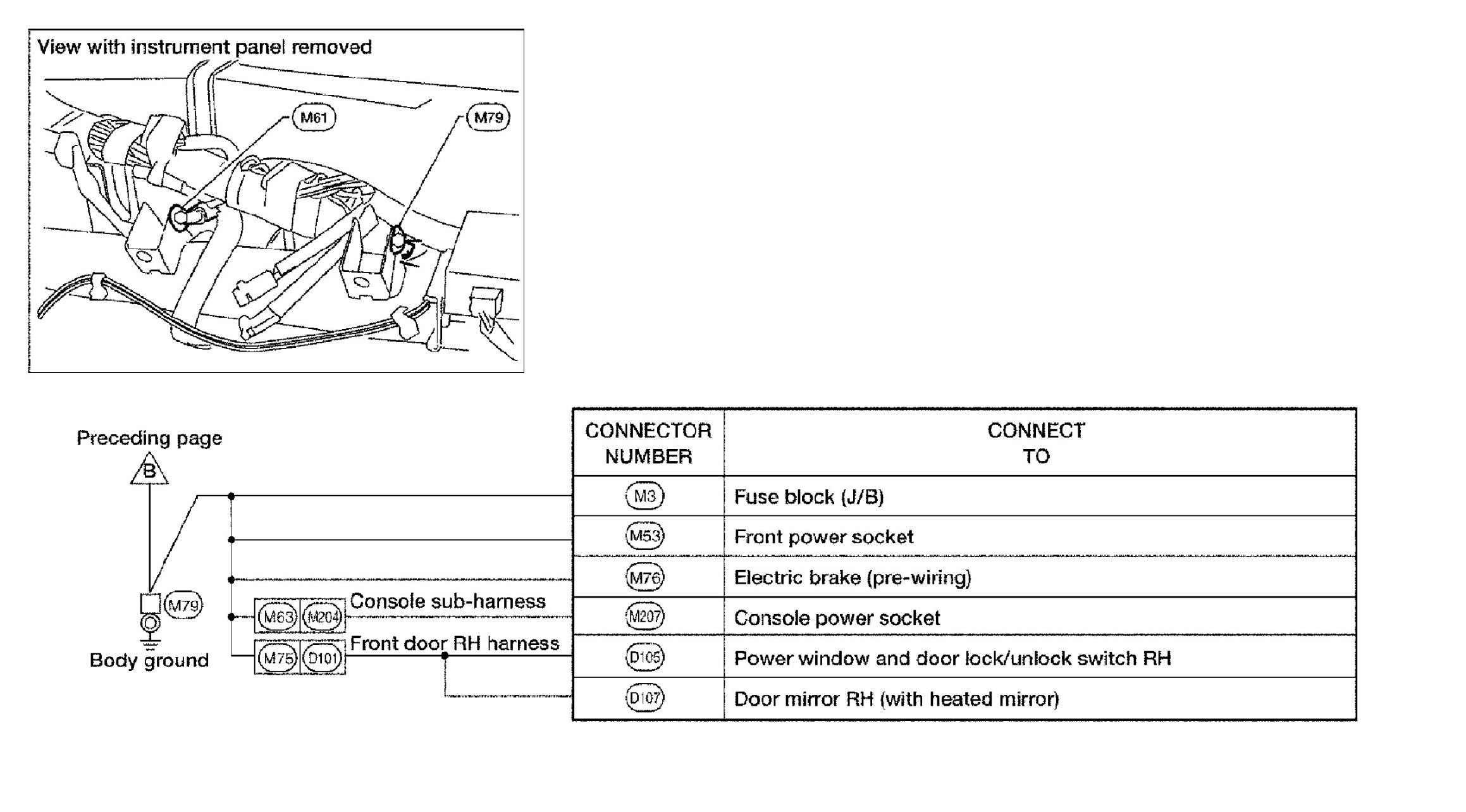

Main Harness

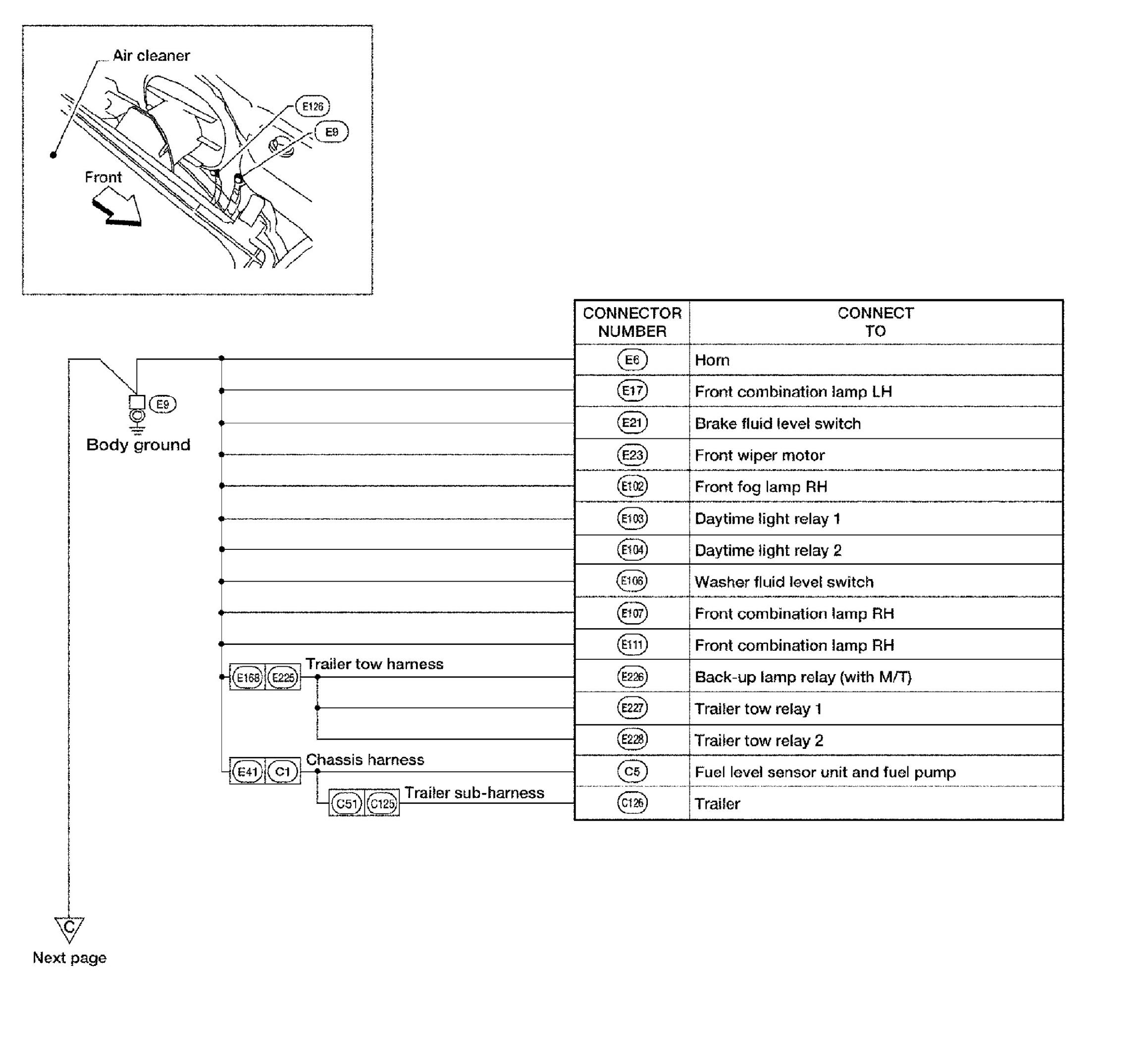

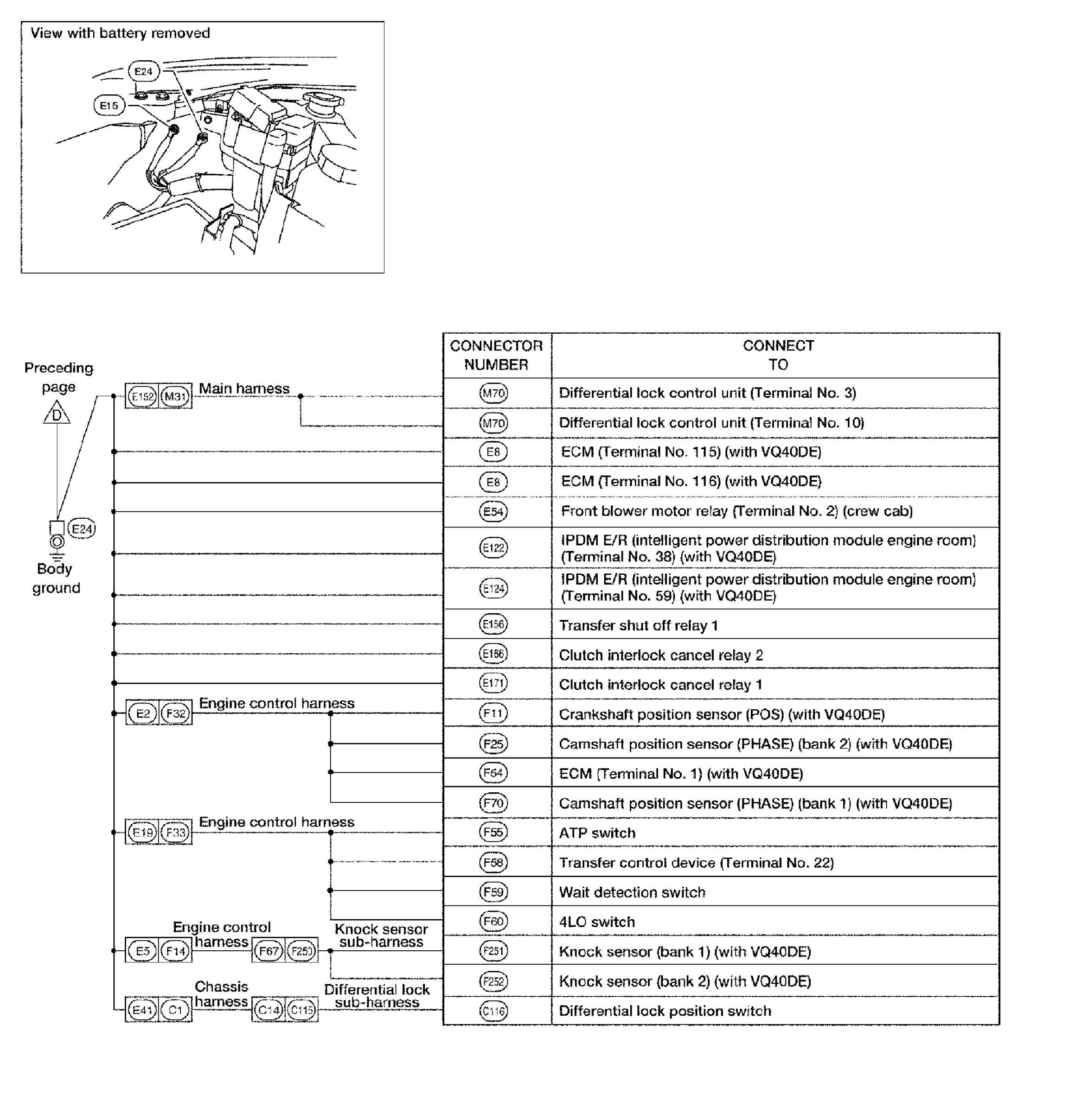

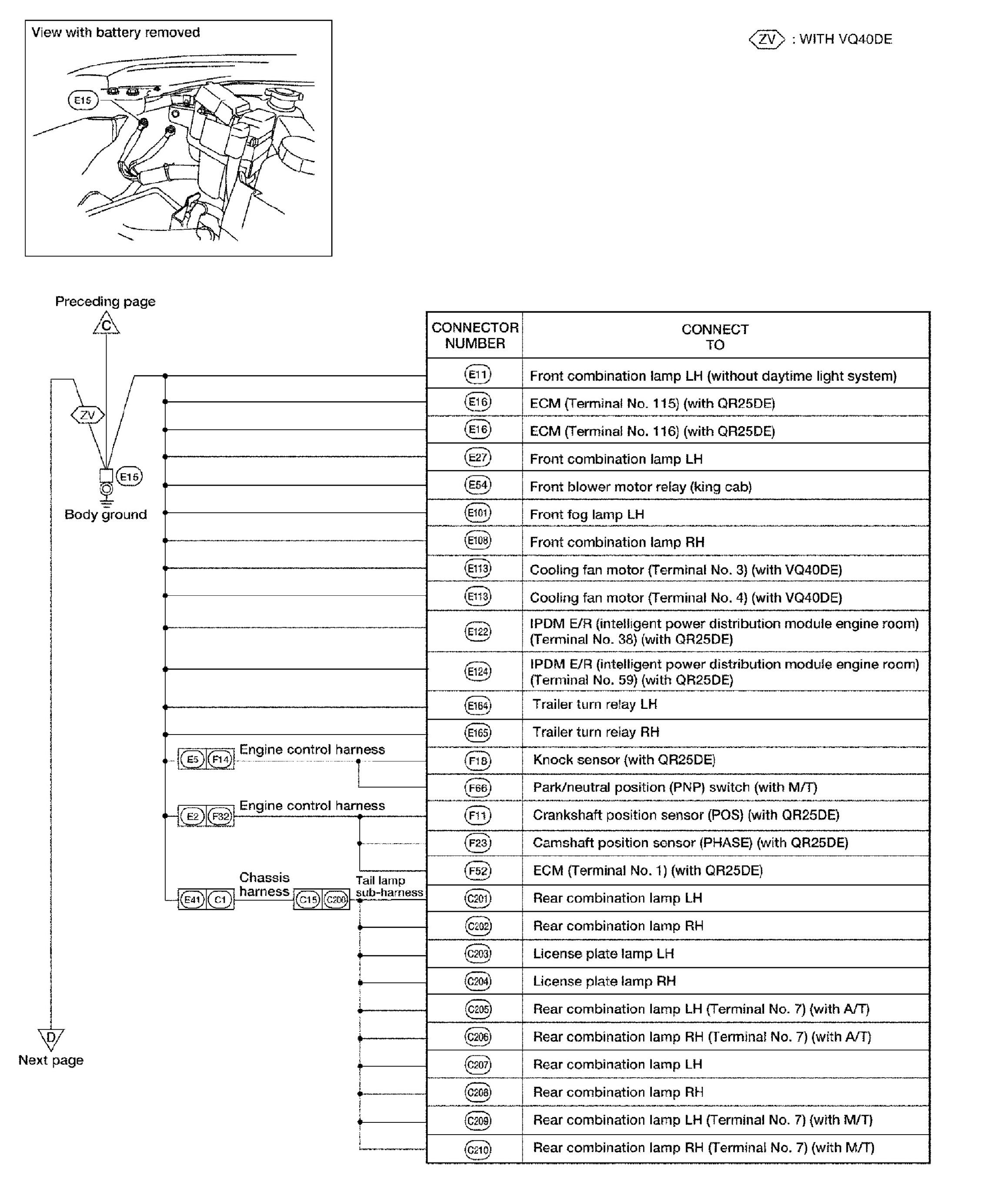

Engine Room Harness

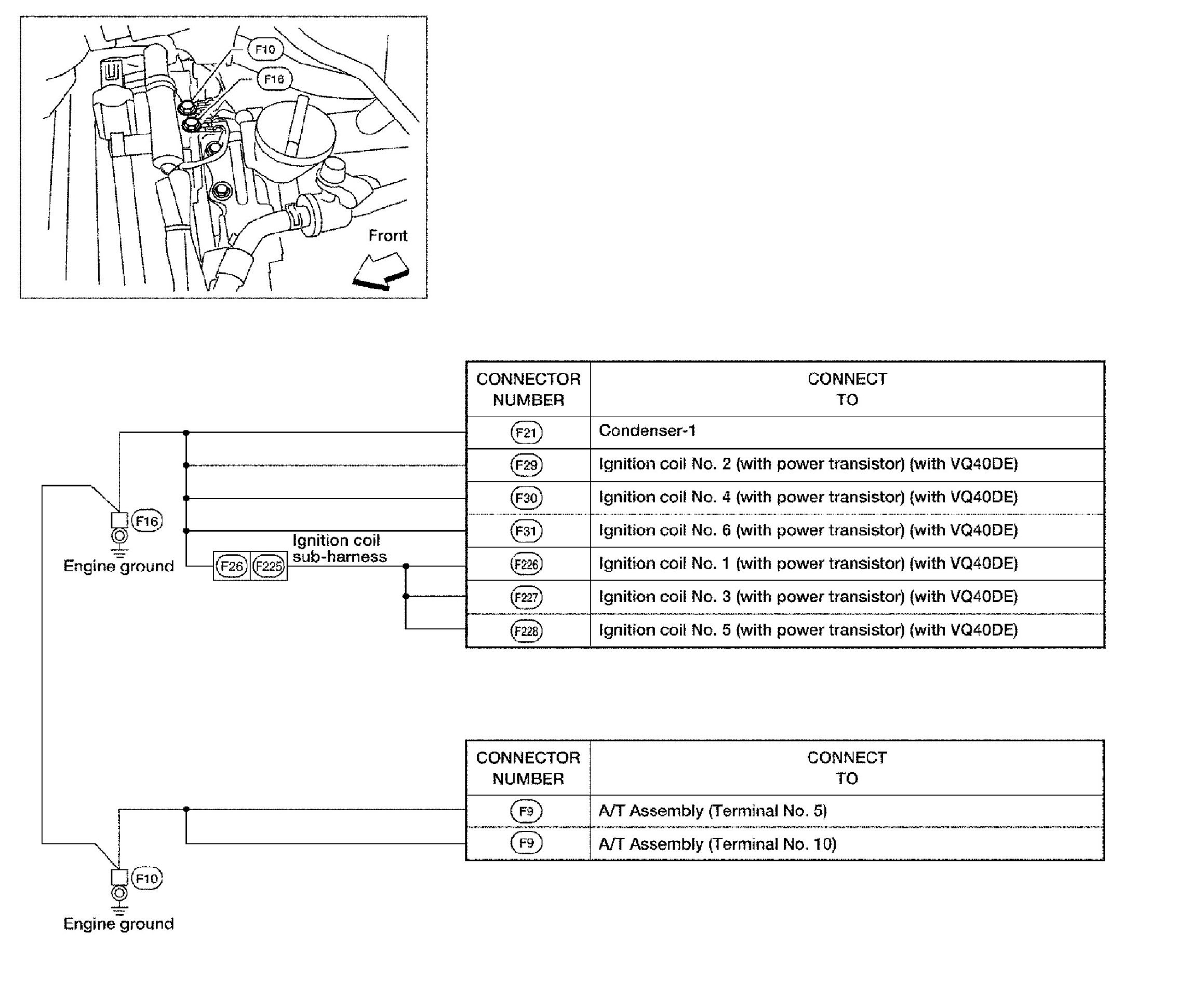

Engine Control Harness (VQ40DE Models)

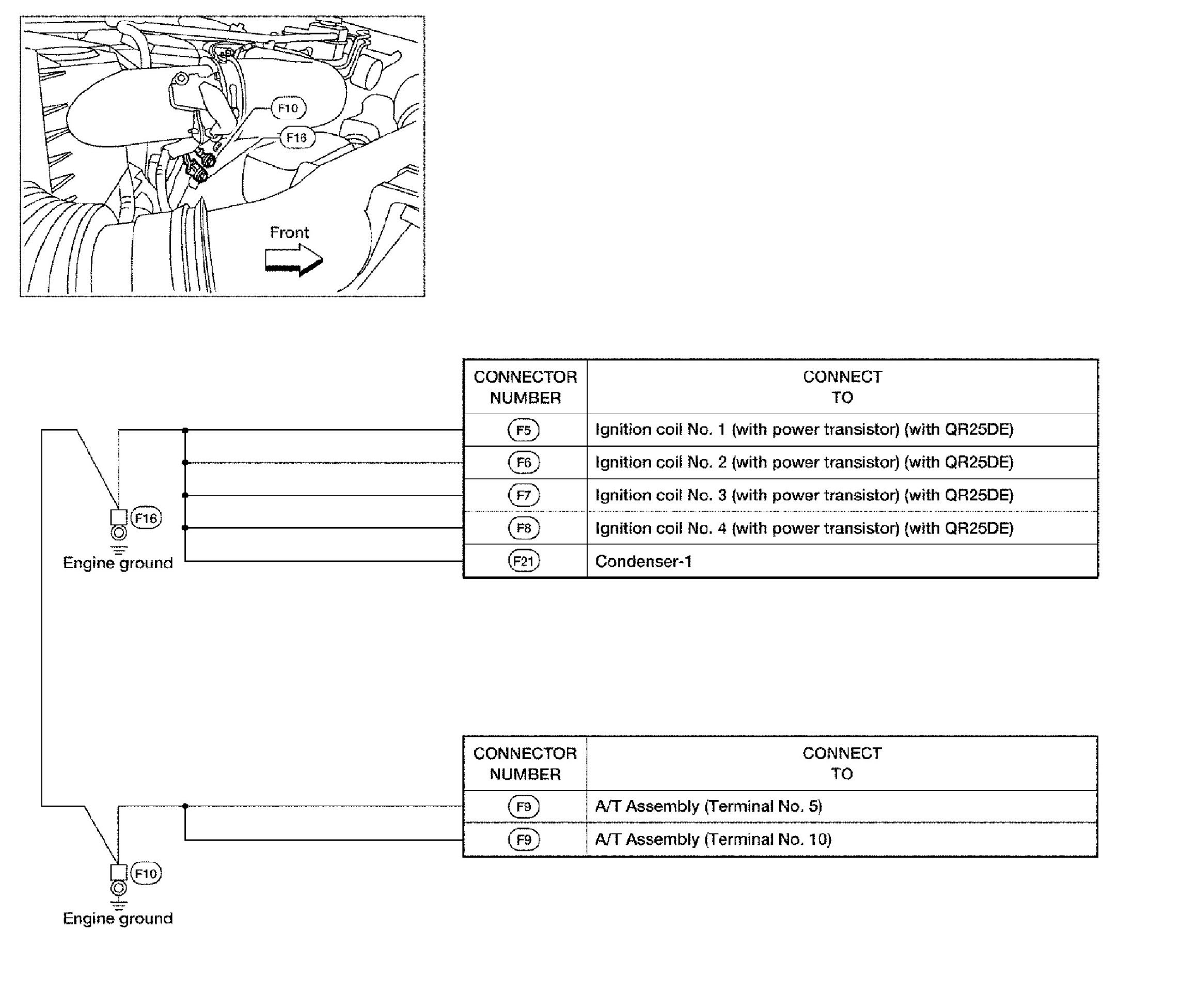

Engine Control Harness (QR25DE Models)

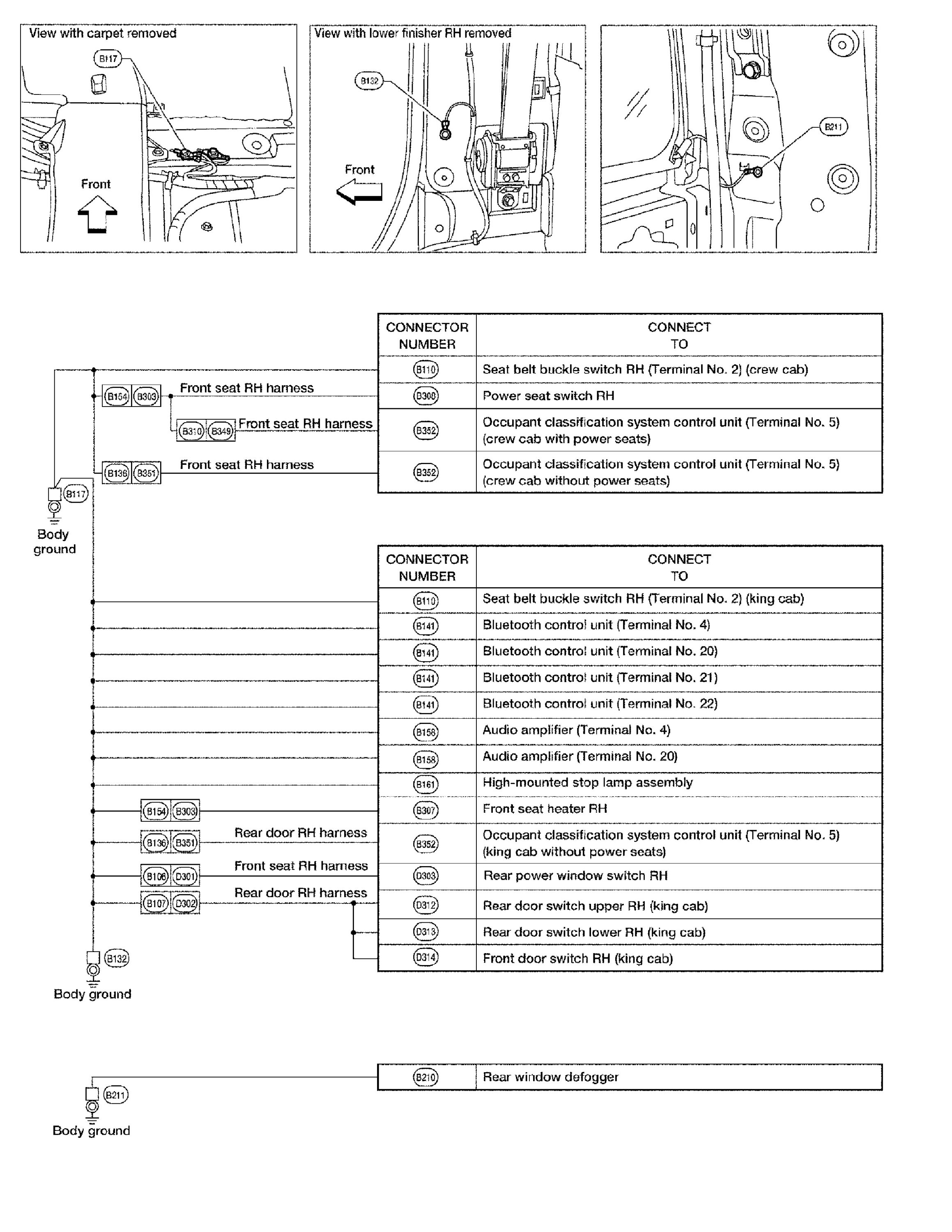

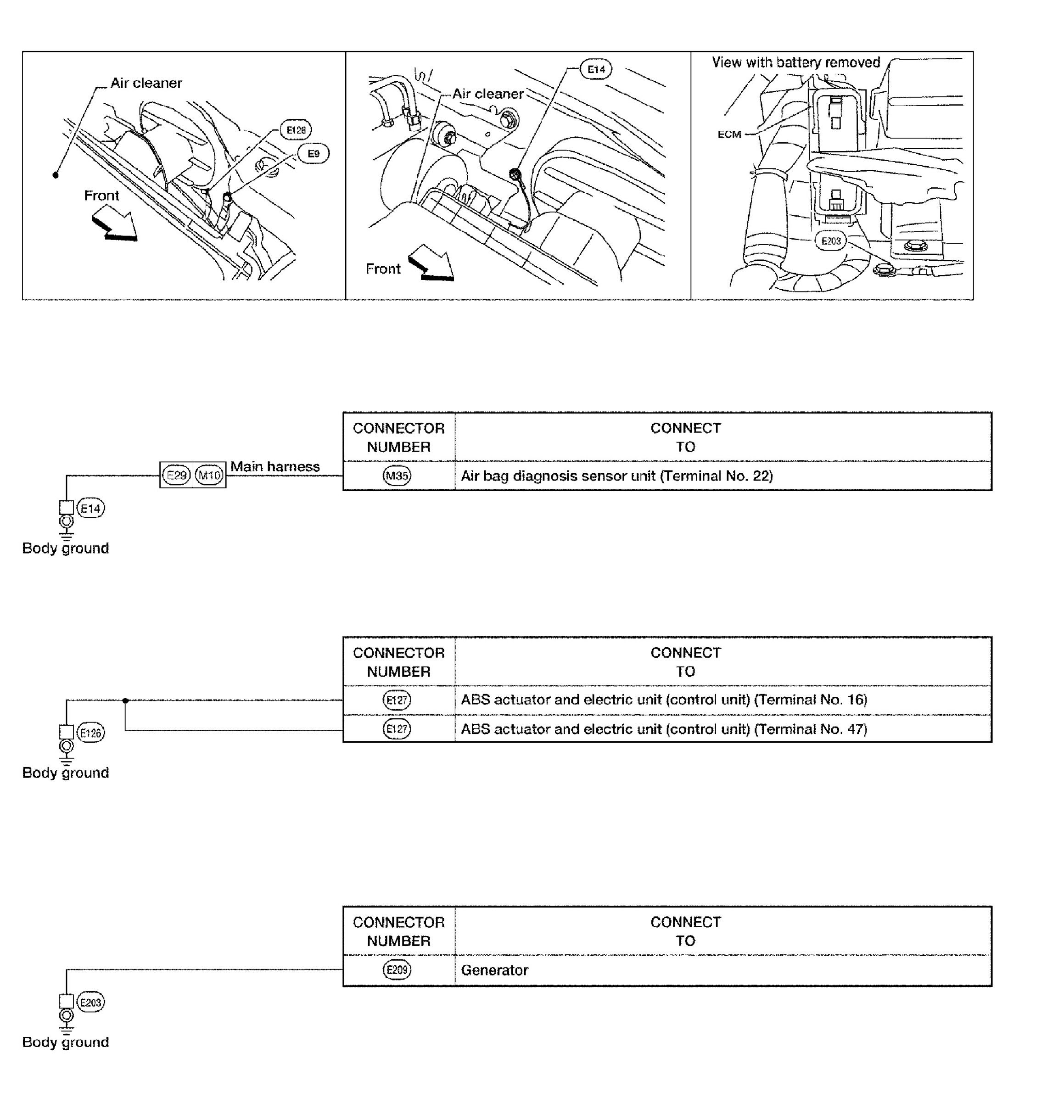

Body Harness

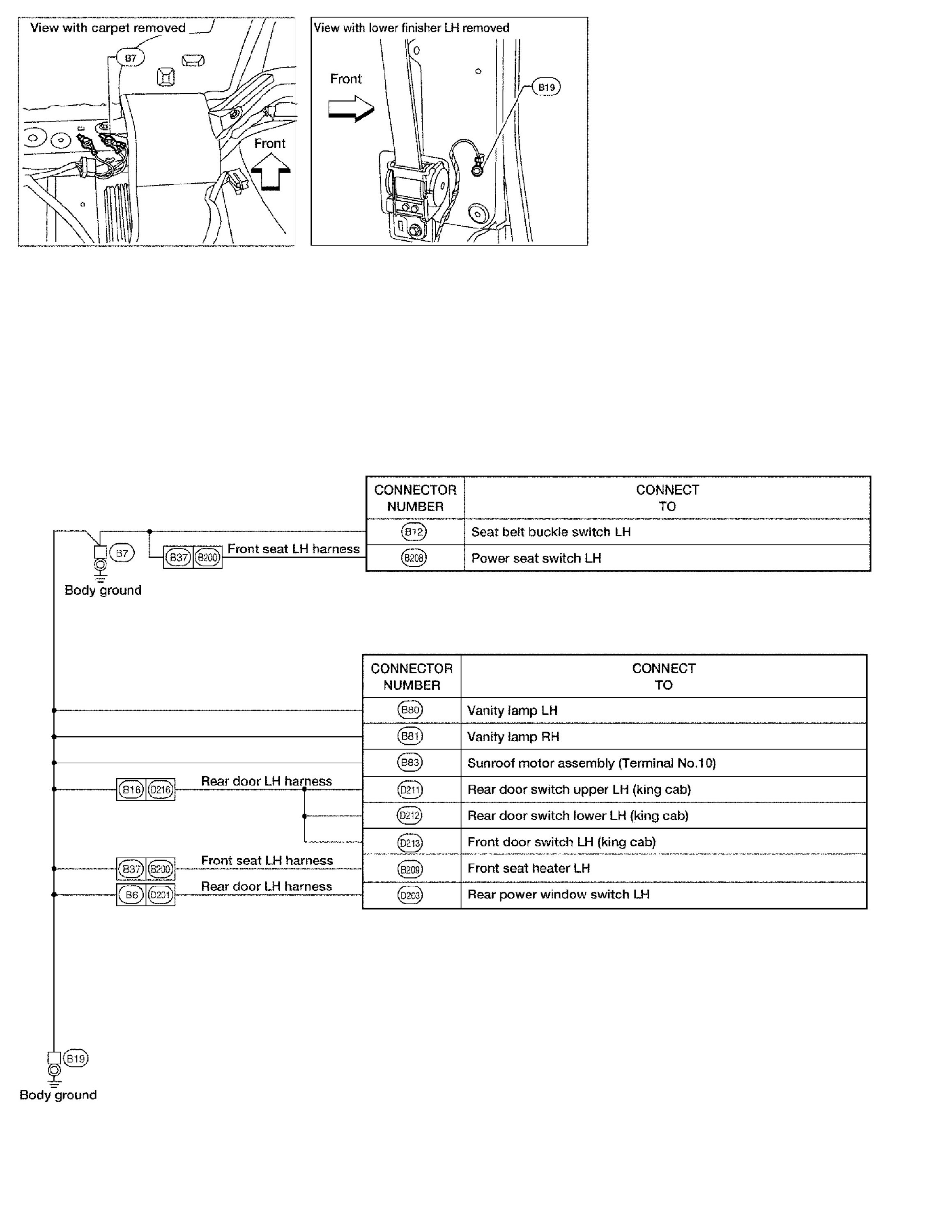

Body No. 2 Harness
