Fusible Link: Locations

Fuse, Fusible Link and Relay Box: Terminal Arrangement

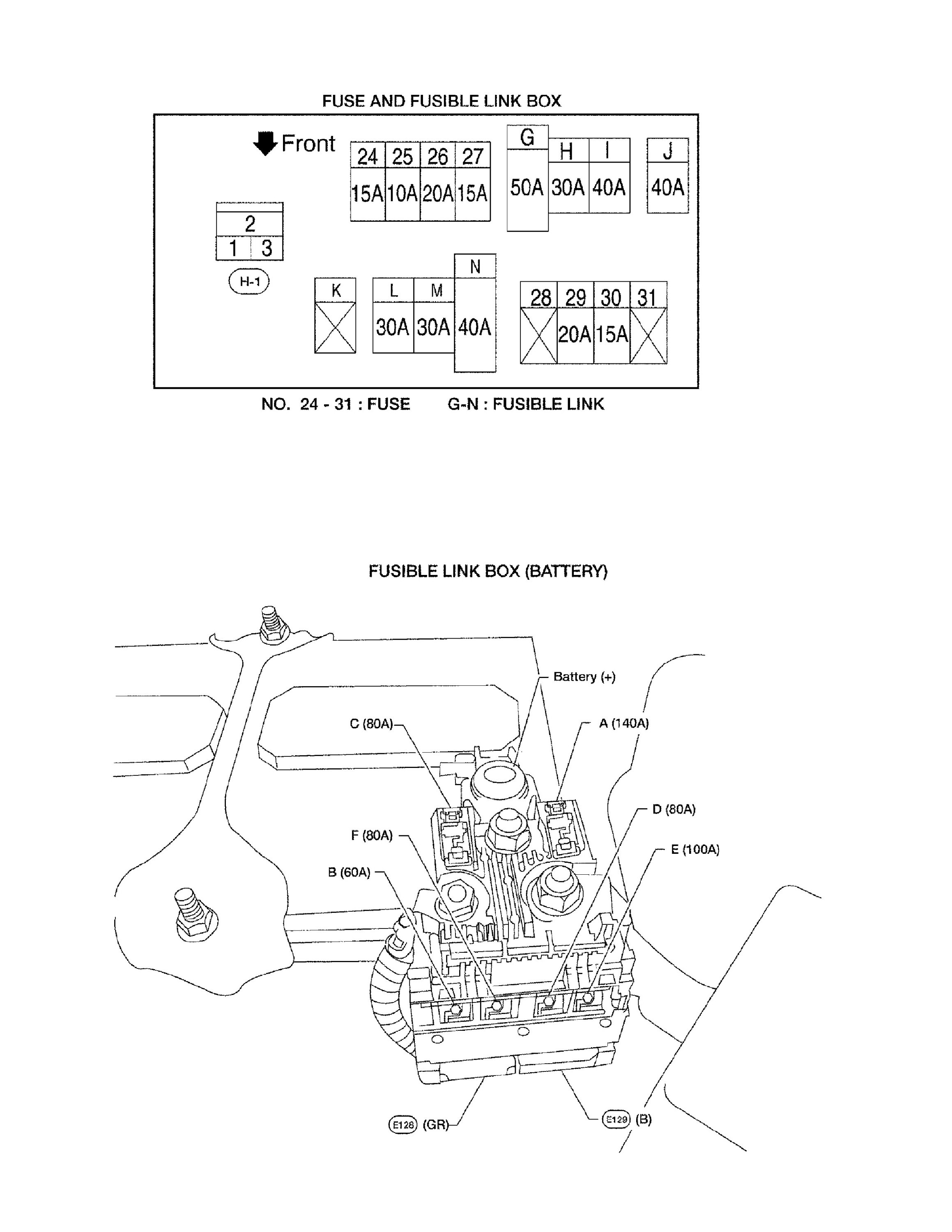

Fuse and Fusible Link Box
