Combination Switch: Service and Repair

Lighting & Turn Signal Switch: Removal and Installation

Removal

1) Remove instrument lower panel LH. Refer to [Instrument Lower Panel LH: Removal and Installation] Instrument Lower Panel LH.
2) Remove steering column covers.





3) Disconnect the lighting and turn signal switch connector.

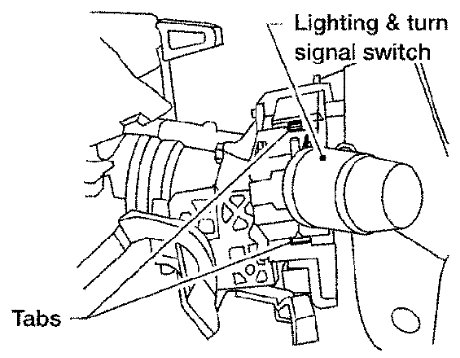

4) While pressing tabs, pull lighting and turn signal switch toward driver door and release from the steering column.

Installation

Installation is in the reverse order of removal.
