Auxiliary Step / Running Board: Service and Repair

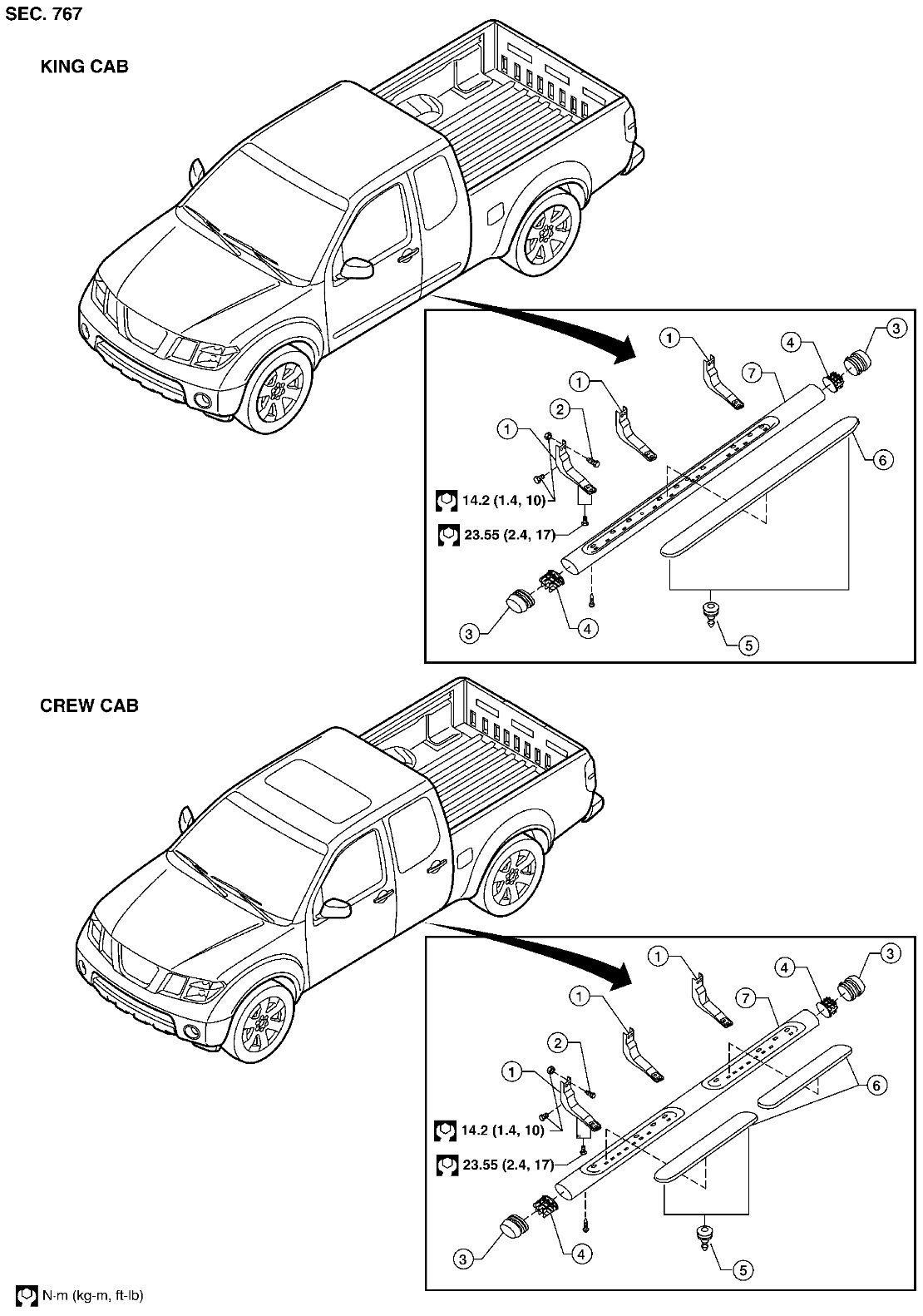

Running Boards: Removal and Installation










Removal

1) Remove bolts and remove running board from running board brackets.
2) Remove screw and remove end cap and reinforcement.
3) Release clips and remove step pad from running board.
4) Remove nuts and bolts and remove running board brackets.

Installation

Installation is in the reverse order of removal.
