Keyless Starting System

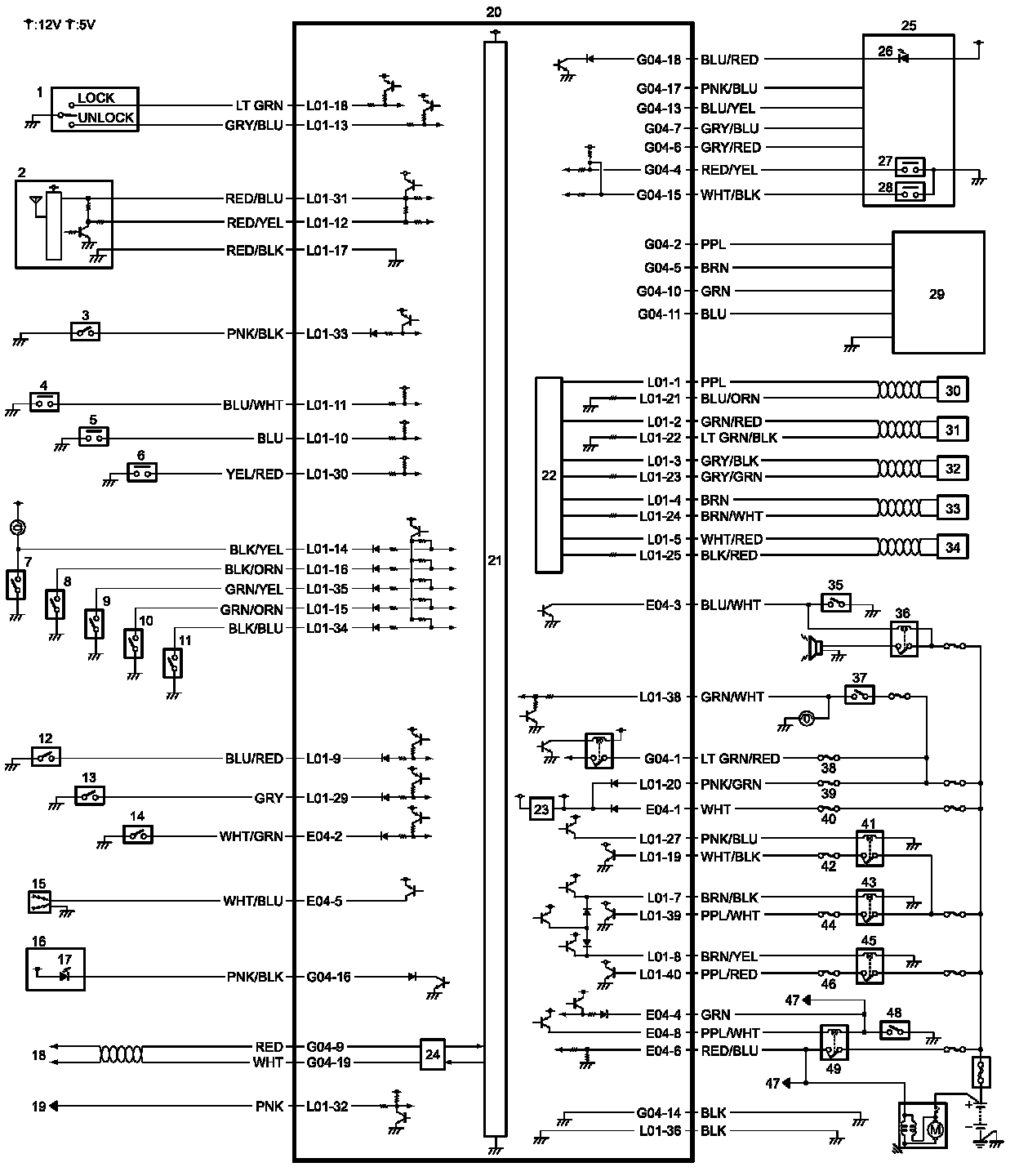

Keyless Start System Electric Wiring Circuit Diagram
Keyless Start System Electric Wiring Circuit Diagram:
