Home >> Suzuki >> 2010 >> Equator 2WD V6-4.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Control System: System Diagram

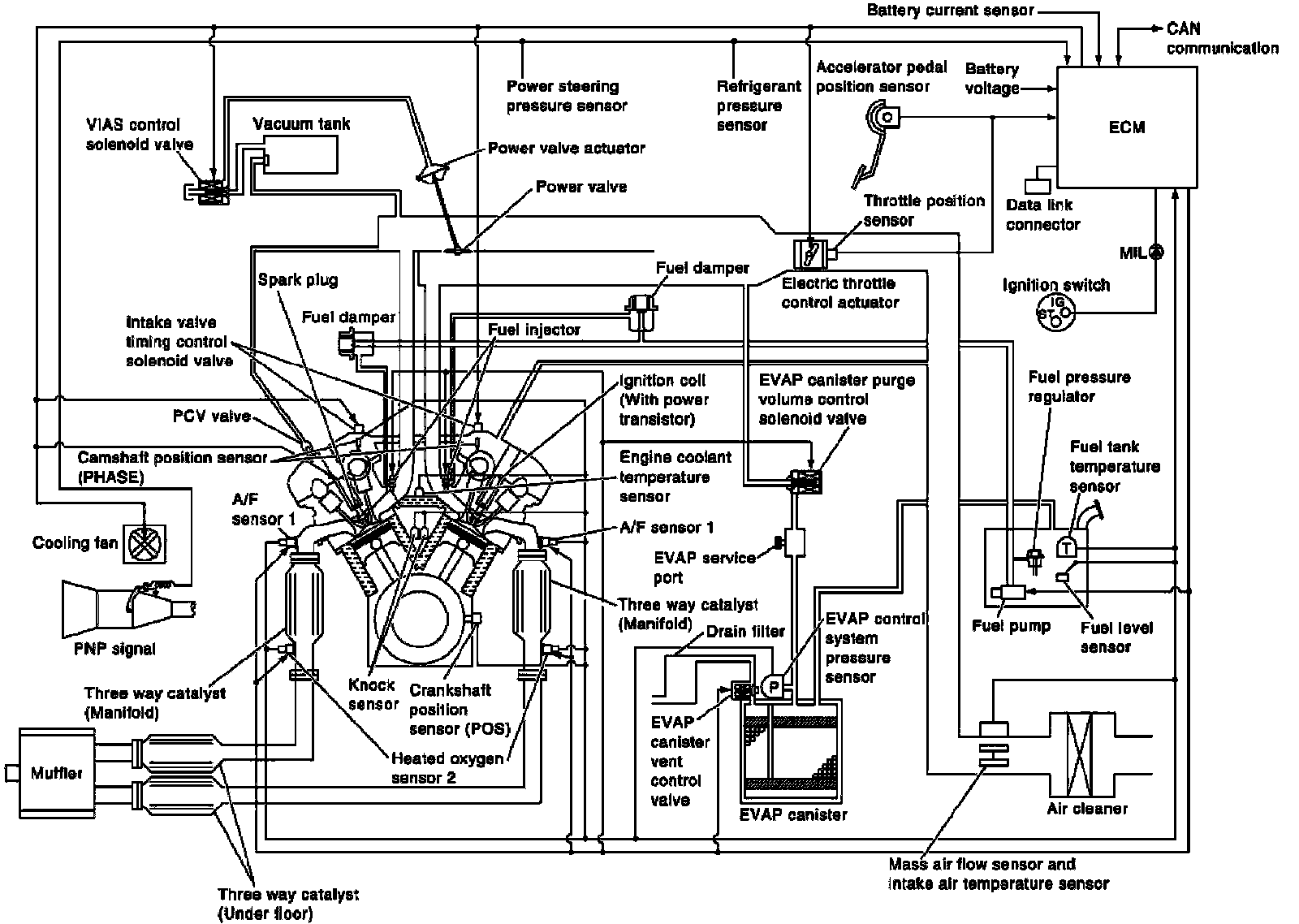

Engine Control System: System Diagram

Engine Control System: System Diagram
