Remote Keyless Entry Receiver Circuit Check
Remote Keyless Entry Receiver Circuit CheckDescription
Receives keyfob operation and transmits to BCM.
Component Function Check
Step 1:
Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Remote Keyless Entry System: Wiring Diagram [King Cab]] Remote Keyless Entry System [King Cab] or [Remote Keyless Entry System: Wiring Diagram [Crew Cab]]. Remote Keyless Entry System [Crew Cab]
Step 1:
Step 1 (Continued)-3:

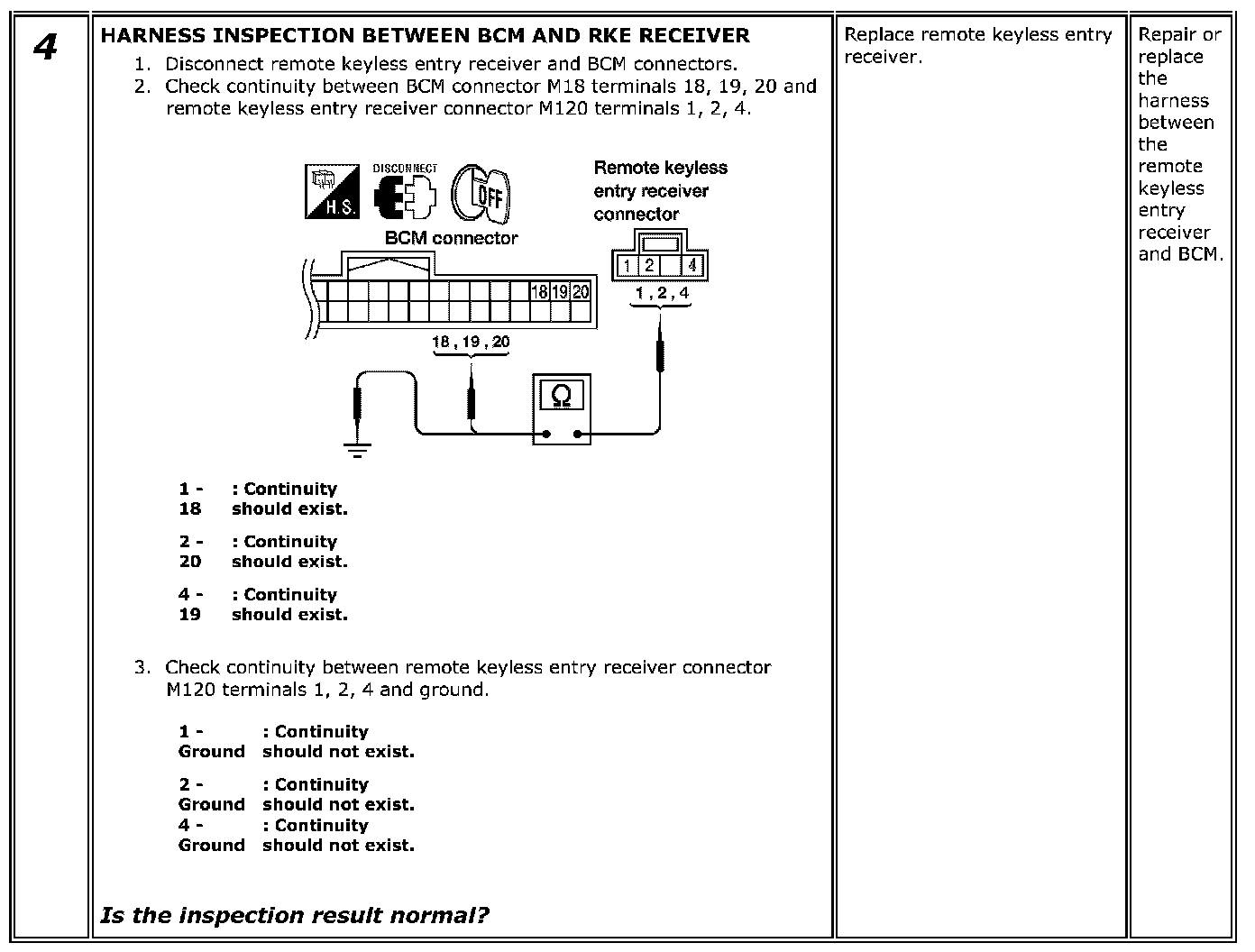

Step 4:
