Home >> Suzuki >> 2009 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Around Strut

Around Strut

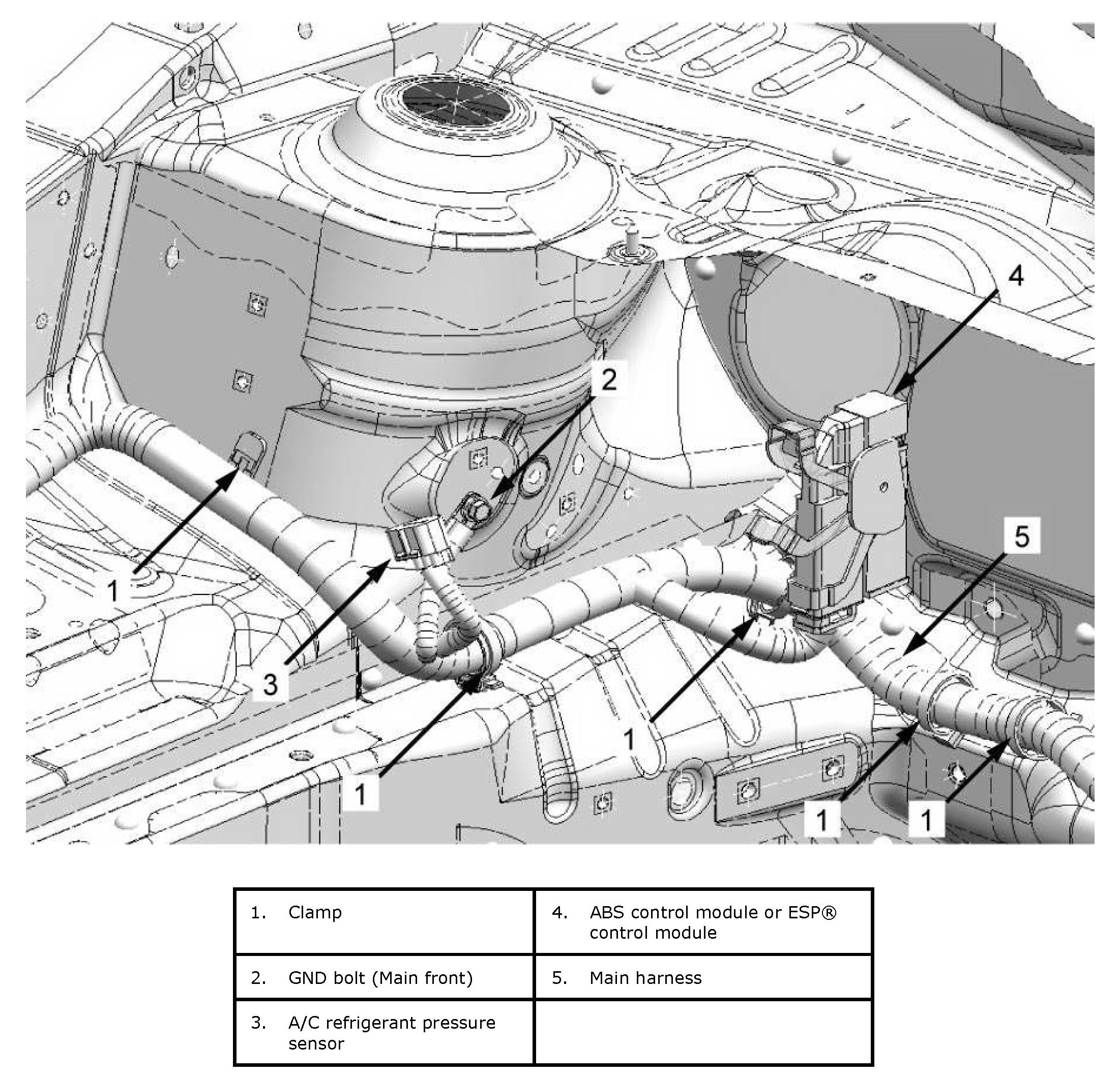

Around Strut - Right Side:

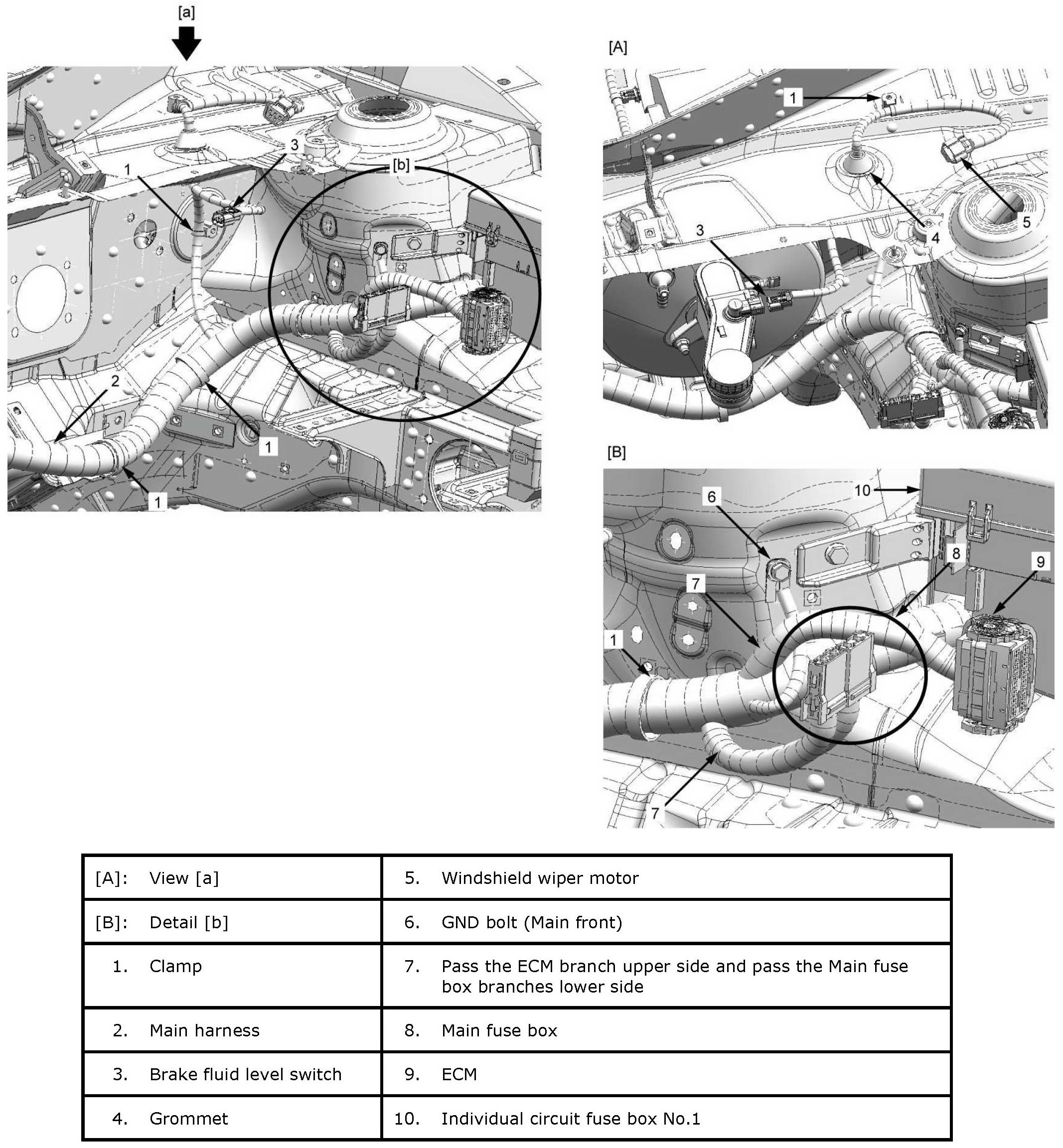

Around Strut - Left Side:
