Home >> Suzuki >> 2009 >> Grand Vitara 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

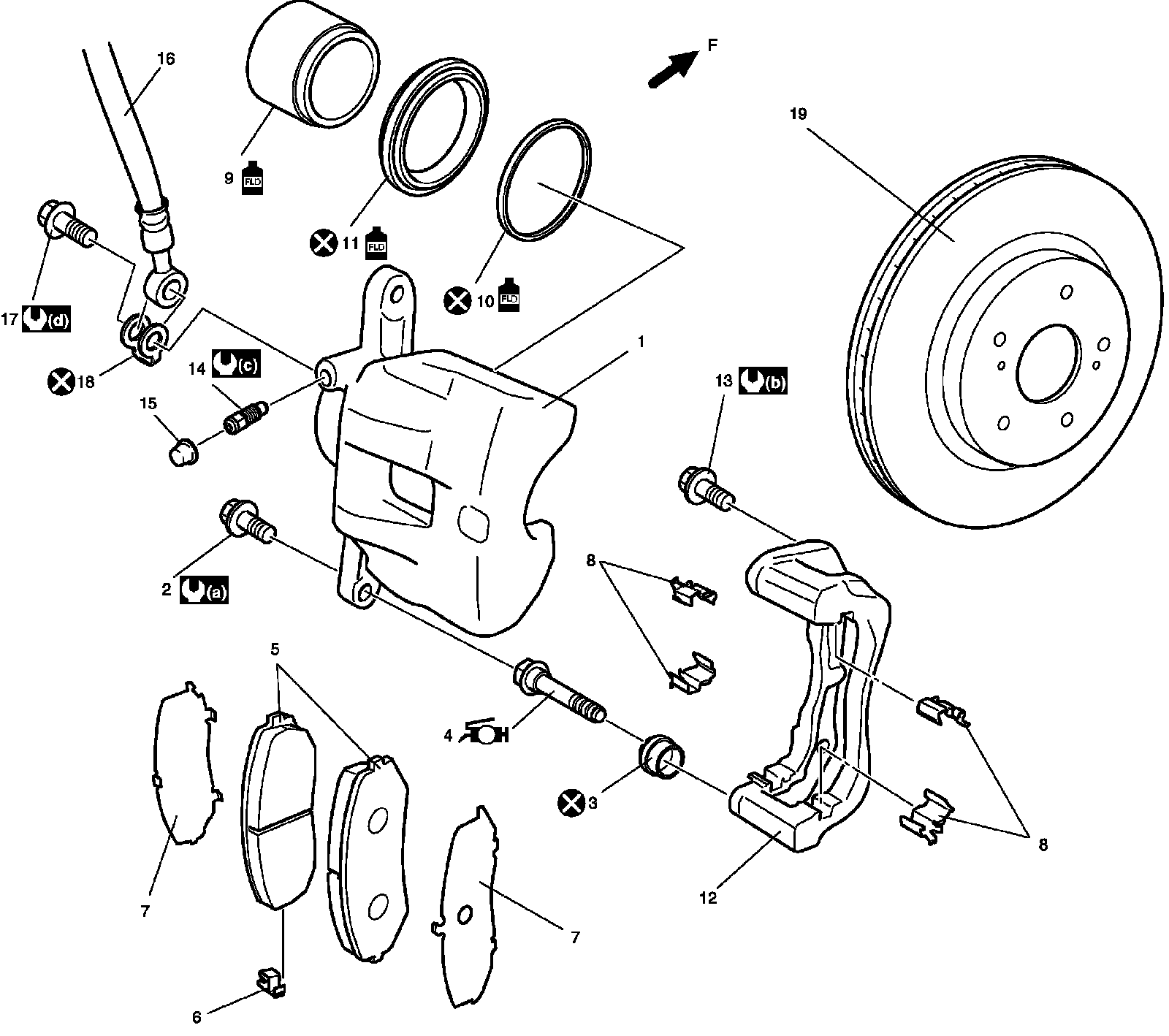

Front Disc Brake Components
