Keyless Entry Receiver: Service and Repair
Keyless Entry Receiver Removal And InstallationRemoval
1. Disconnect negative cable at battery.
2. Remove console box from vehicle body referring to Console Box Components.
3. Disconnect keyless entry receiver coupler.

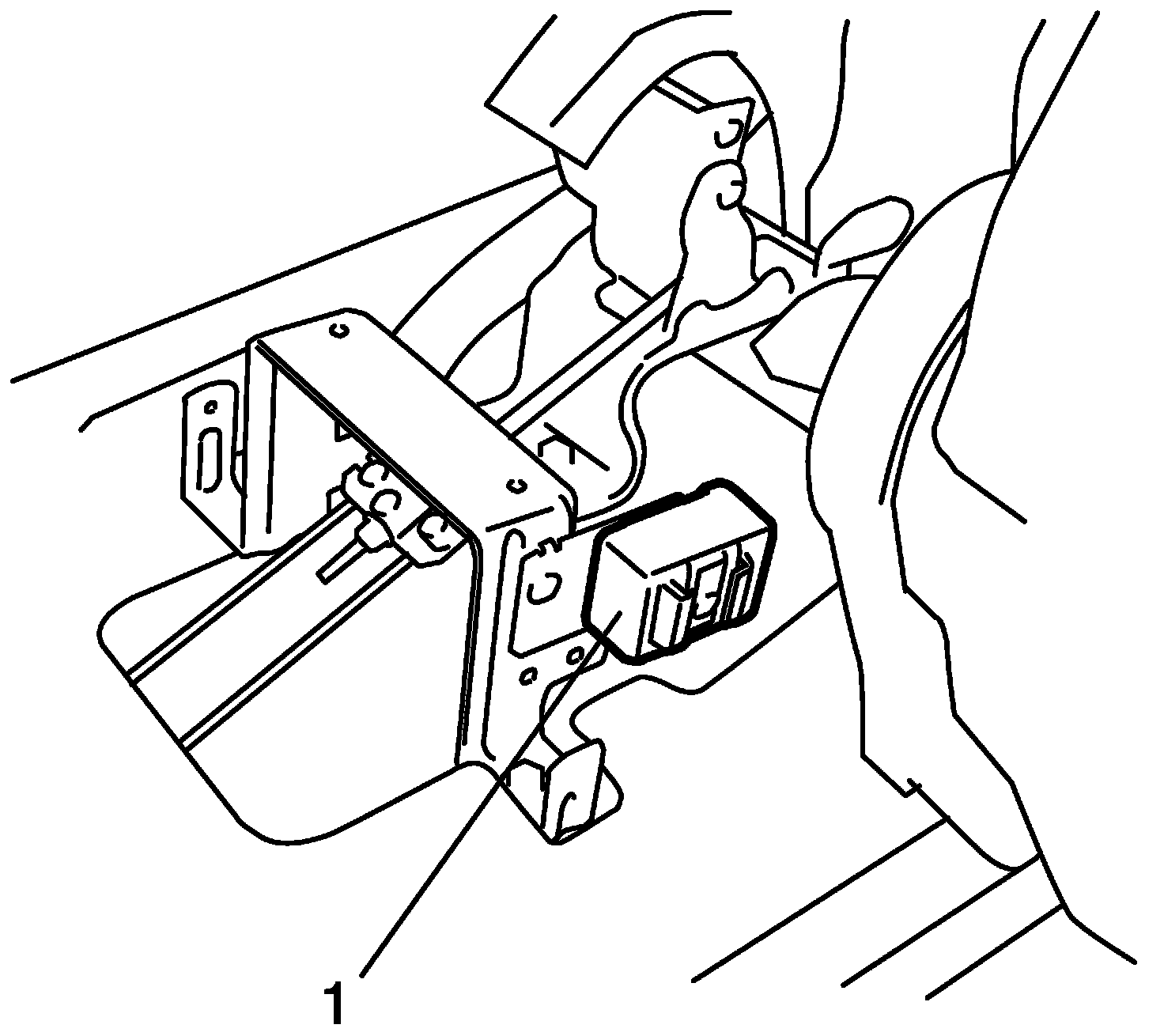

4. Remove keyless entry receiver (1).
Installation
Reverse removal procedure.
