Suzuki
>>
2009
>>
Grand Vitara 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Ignition System Check
Ignition System Check
Ignition System
Check

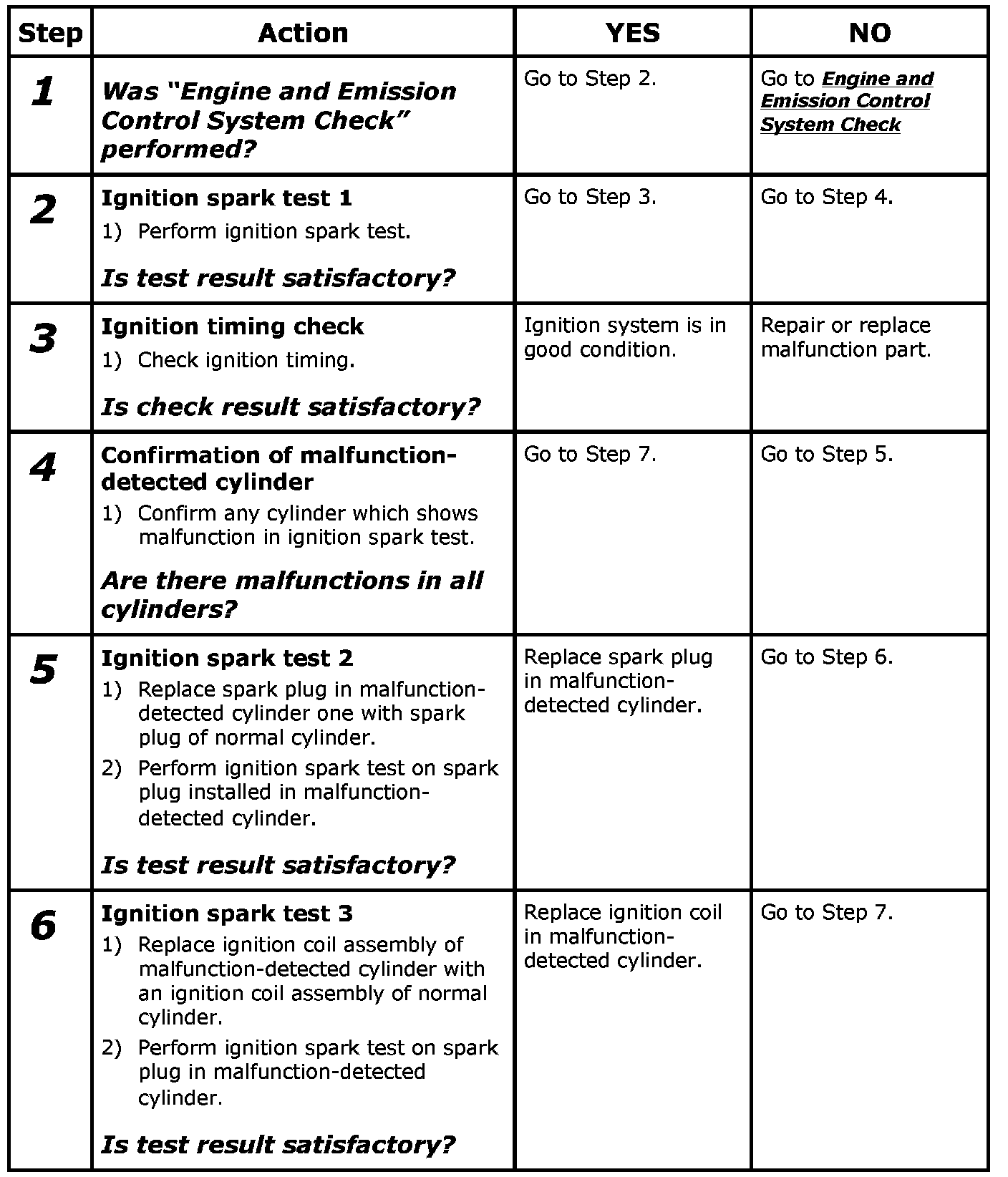

Step 1-6:

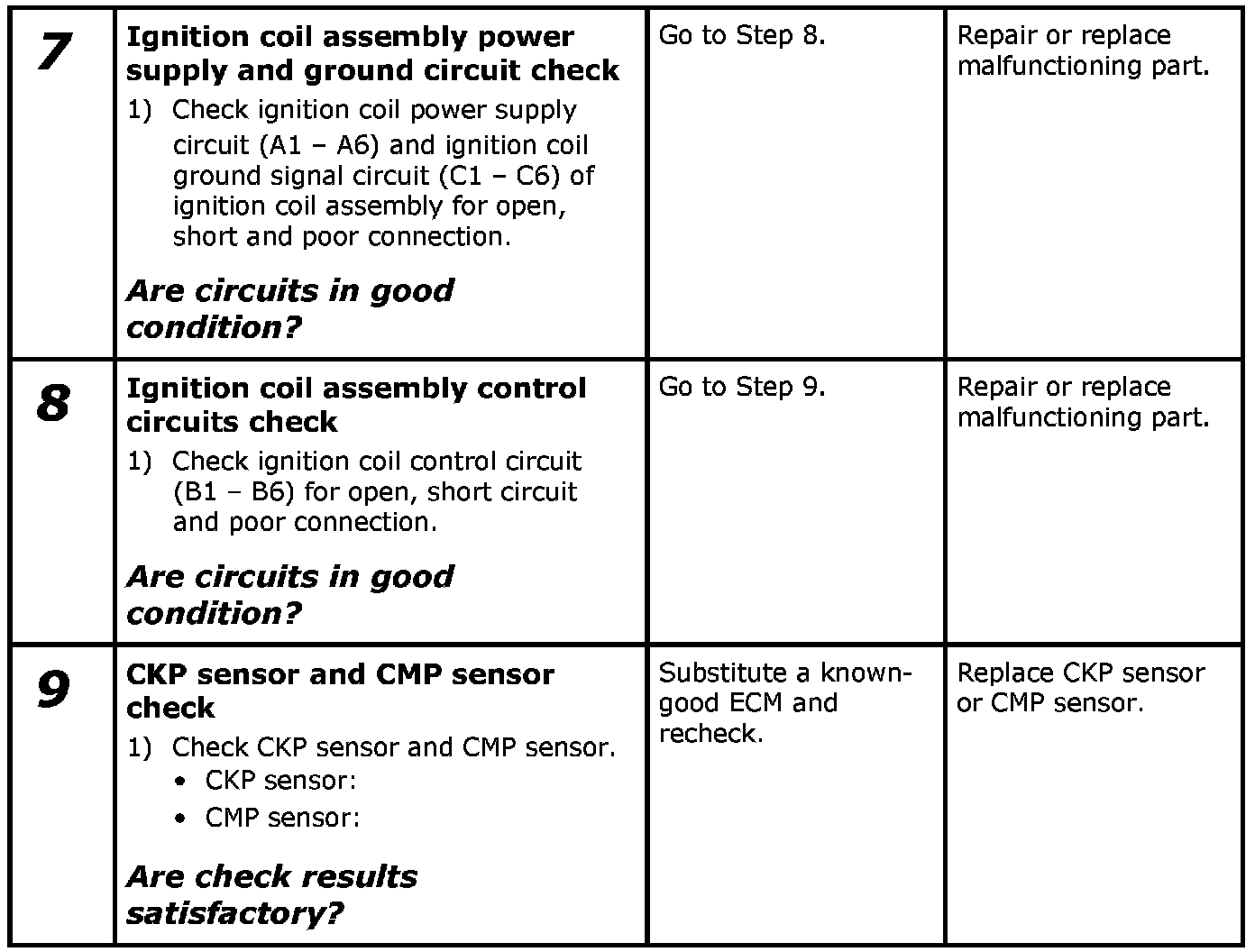

Step 7-9:
