SDT Function (Airbag)
SDT Function (Airbag)
SDT Function (Airbag)

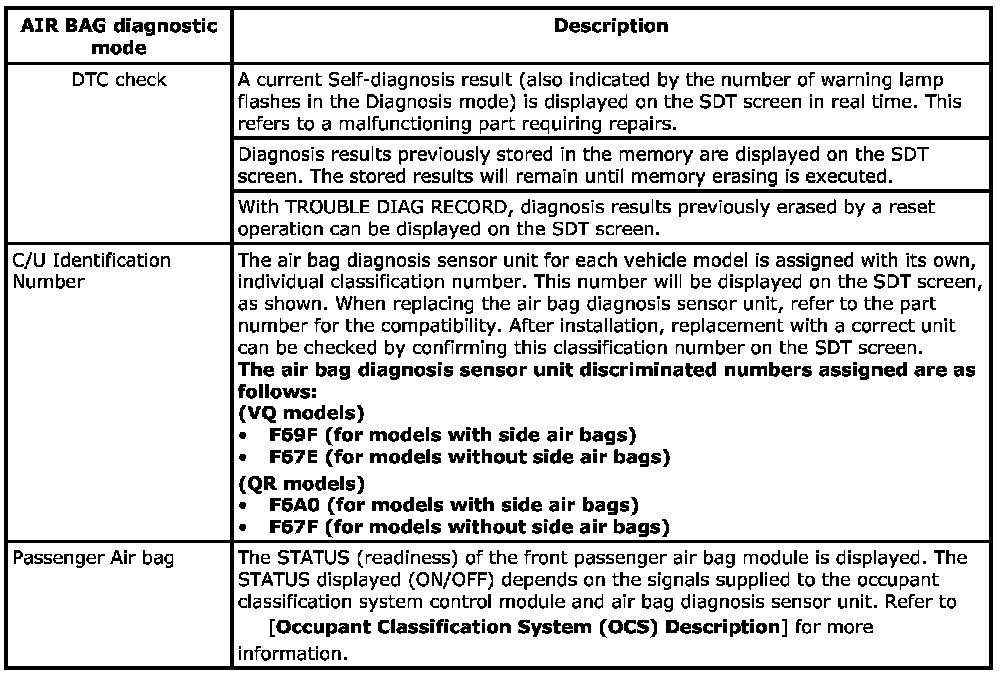

SDT can display each diagnostic item using the diagnostic test modes shown following.
SDT Function (Airbag):
